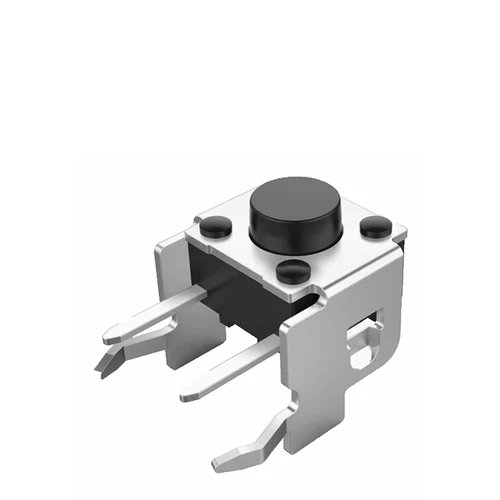

THDP12 6.0X6.0mm Micro Tactile Switch Push Button Switches SMT SMD

THDP12

FEATURES AND BENEFITS

  • Fully encapsulated contacts for increased reliability
  • Ultra Small Tactile Switches
  • IP67 splashproof rubber boot option
  • Suitable for high-density installations

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
DC 12V  50mA

DC   1V  10μA

  • Bounce
<5mS
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 67
  • Operating Temperature:
T +5/+35
  • Contact Resistance:
≦ 100mΩ

A tactile switch allows electricity to flow in an electrical circuit by manually pressing the operating section. The switch is used to supply input signal to actuate a device or equipment. It is designed with a small footprint suited for mounting onto the surface of printed circuit
boards (PCBs) made to connect electronic components to form electronic circuits (Figure 1). The switch activates when pressed and then turns off when released. This action is called ‘momentary action’ and can only be performed at low voltage and low current.
There are many different types of tactile switches, also known as tactile push switches or tact switches, used in a variety of applications including household appliances, office equipment, commercial equipment, and industrial machinery.
There are optional features such as size (external dimension), board mounting, and sealing structure for users to select for their applications. A tactile switch is literally a switch that users can “feel a click sense of touch”.
<Click response>
A click response of a button is the most characteristic feature of a tactile switch that lets users
feel the response of the operation from a switch. A clicking feel is generated from the contact
dome embedded in the switch. How large an operation stroke and how sharp a click sense of
touch depends on the materials and shapes of the contact dome.
<High Durability>
The contact dome also acts as a movable contact in a tactile switch. The resistance value
(contact resistance) which is generated between a movable contact and a fixed contact when a
switch is turned on can be stabilized by using specific materials, surface processing, and shape
enabling high durability capable of withstanding 100 thousand to 10 million times of use.

Models

There are two types of tactile switches: Standard tactile switches and sealed tactile switches. The
sealed tactile switches are dust-protected and water-resistant to withstand harsh environmental
conditions. They are further sub-categorized into two types: PCB insert hole terminals type
and PCB surface mounted terminals type. For PCB insert hole terminals type, terminals are
inserted into holes on the PCB and are fixed by soldering. For PCB surface-mounted terminals
type, terminals are surface-mounted and soldered on the PCB. These switches can be
transported in a standalone package, or using a taping packaging method where a carrier tape
holds the switches in place with clearance between them.
Other variations include horizontal push button type, long-stroke type, and ultra subminiature
type switches and many more, ranging from different shapes and specifications that cater to
various applications

Read More

Product Features

            • WEUP’s Tact Switch: Enhancing Your Business with Reliable PerformanceWhen it comes to finding the perfect tactile switch for your business needs, look no further than WEUP’s Tact Switch. With its outstanding features and exceptional performance, this switch is designed to meet the demands of importers, distributors, manufacturers, brands, wholesalers, and retailers. Let us delve into the compelling reasons why WEUP’s Tact Switch should be your top choice.Reliability at Its Best
              • Fully encapsulated contacts: The Tact Switch is built with fully encapsulated contacts, ensuring increased reliability. This feature protects the switch from external factors that could potentially affect its performance, such as dust and moisture.
              • High durability: With a contact resistance of less than 100mΩ and an insulation resistance of at least 100 MΩ, this switch is designed to withstand heavy usage. It can endure between 300,000 to 500,000 operations, making it a reliable choice for long-term use.
              • Splash-proof option: The IP67 splash-proof rubber boot option adds an extra layer of protection, making it suitable for applications where water resistance is required. This feature makes the switch ideal for use in environments where spills or splashes are common.

              Compact and Versatile

              • Ultra small footprint: The Tact Switch’s 6.0×6.0mm size makes it perfect for high-density installations. Its compact design allows for efficient use of space on printed circuit boards (PCBs), which is essential for small appliances, computers and peripherals, and medical instrumentation.
              • Various models available: WEUP offers a range of models to cater to different applications. Whether you need a standard tactile switch or a sealed tactile switch for harsh environmental conditions, you can find the perfect fit for your specific requirements. Additionally, there are variations such as horizontal push button type, long-stroke type, and ultra subminiature type switches to suit various needs.

              User-Friendly Features

              • Click response: The Tact Switch provides a distinctive click response, allowing users to feel the operation of the switch. This feature enhances the overall user experience and provides reassurance that the switch has been activated.
              • Easy installation: The switch is designed for surface mounting on PCBs, simplifying the installation process. This user-friendly feature ensures hassle-free integration into devices and equipment.

              Wide Range of Applications The versatility of WEUP’s Tact Switch makes it suitable for various industries and applications:

              • Commercial equipment and industrial machinery: The Tact Switch enables condition settings and operation control in temperature controllers, air conditioning systems, inverter control panels, measuring instruments, and medical devices.
              • Household appliances and office equipment: From printers and multifunction printers to dishwashers and washing machines, tactile switches are crucial for mode settings, operation control, and user interface interaction.
              • Electronics manufacturing: The compact size and high durability of the Tact Switch make it an excellent choice for electronic circuit boards. Whether it’s for consumer electronics or industrial manufacturing, this switch provides reliable performance.

              Choosing WEUP as Your Supplier When it comes to sourcing reliable tactile switches, partnering with WEUP presents numerous advantages:

              • China manufacturers: WEUP is a trusted manufacturer based in China. With their extensive experience in producing high-quality electronic components, you can rely on their expertise and commitment to excellence.
              • Wide range of options: WEUP offers a comprehensive selection of tactile switches to meet your specific needs. Their diverse range of models ensures that you can find the perfect fit for your application.
              • Exceptional quality control: As a reputable supplier, WEUP places great emphasis on quality control. Their products undergo rigorous testing to ensure consistent performance and reliability.
              • Competitive pricing: With WEUP’s direct factory supply and wholesale options, you can enjoy competitive pricing without compromising on quality.
              • Reliable customer support: WEUP values customer satisfaction and provides reliable support throughout the entire purchasing process. Their dedicated team is ready to assist you with any inquiries or concerns.

              In conclusion, WEUP’s Tact Switch offers a compelling solution for B2B buyers seeking reliable tactile switches. Its fully encapsulated contacts, high durability, compact size, user-friendly features, and wide range of applications make it a standout choice. Partnering with WEUP as your supplier ensures access to high-quality products from trusted China manufacturers. Upgrade your business operations today with WEUP’s Tact Switch – the smart choice for importers, distributors, manufacturers, brands, wholesalers, and retailers.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

Rating (resistive load)1 to 50 mA, 3 to 24 VDC
Minimum applicable load (reference value)10 A at 1 VDC (resistive load)
Ambient operating temperature-25C to +70C at 60%RH max. (with no icing or condensation)
Ambient operating humidity35% to 85% (at +5 to +35C)
Contact formSPST-NO
Contact resistance (initial value)100 mΩ max.
Insulation resistance100 MΩ min. (at 250 VDC with insulation tester)
Dielectric strength500 VAC, 50/60 Hz for 1 min
Bounce time5 ms max.
Vibration resistanceMalfunction: 10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceDestruction: 1,000 m/s2 {approx. 100G} max. Malfunction: 100 m/s2 {approx. 10G} max.
DurabilityStandard force models (1.57 N {160 gf}): 500,000 operations min. High-force models (2.26 N {230 gf}): 300,000 operations min.
WeightApprox. 0.3 g
Degree of protectionIEC IP67
WashingPossible
