  • TVCU12 5.2X5.2mm Micro Tactile Switch Push Button Switches SMT SMD
  • TVCU12 5.2X5.2mm Micro Tactile Switch Push Button Switches SMT SMD

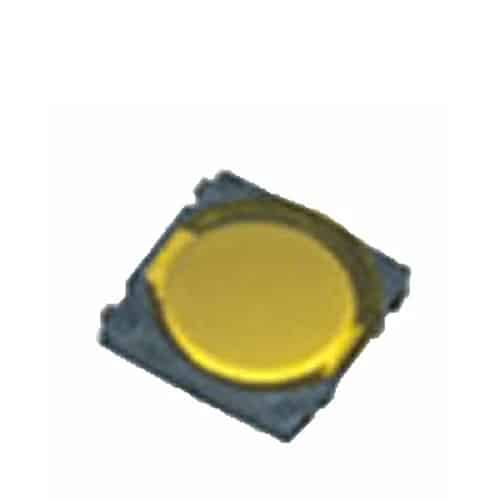

TVCU12 5.2X5.2mm Micro Tactile Switch Push Button Switches SMT SMD



  • Fully encapsulated contacts for increased reliability
  • Ultra Small Tactile Switches
  • IP67 splashproof rubber boot option
  • Suitable for high-density installations


  • Small appliances
  • Computers and peripherals
  • Medical instrumentation


  • Contact Rating:
DC 12V  50mA

DC   1V  10μA

  • Bounce
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 67
  • Operating Temperature:
T +5/+35
  • Contact Resistance:
≦ 100mΩ

A tactile switch allows electricity to flow in an electrical circuit by manually pressing the operating section. The switch is used to supply input signal to actuate a device or equipment. It is designed with a small footprint suited for mounting onto the surface of printed circuit
boards (PCBs) made to connect electronic components to form electronic circuits (Figure 1). The switch activates when pressed and then turns off when released. This action is called ‘momentary action’ and can only be performed at low voltage and low current.
There are many different types of tactile switches, also known as tactile push switches or tact switches, used in a variety of applications including household appliances, office equipment, commercial equipment, and industrial machinery.
There are optional features such as size (external dimension), board mounting, and sealing structure for users to select for their applications. A tactile switch is literally a switch that users can “feel a click sense of touch”.
<Click response>
A click response of a button is the most characteristic feature of a tactile switch that lets users
feel the response of the operation from a switch. A clicking feel is generated from the contact
dome embedded in the switch. How large an operation stroke and how sharp a click sense of
touch depends on the materials and shapes of the contact dome.
<High Durability>
The contact dome also acts as a movable contact in a tactile switch. The resistance value
(contact resistance) which is generated between a movable contact and a fixed contact when a
switch is turned on can be stabilized by using specific materials, surface processing, and shape
enabling high durability capable of withstanding 100 thousand to 10 million times of use.


There are two types of tactile switches: Standard tactile switches and sealed tactile switches. The
sealed tactile switches are dust-protected and water-resistant to withstand harsh environmental
conditions. They are further sub-categorized into two types: PCB insert hole terminals type
and PCB surface mounted terminals type. For PCB insert hole terminals type, terminals are
inserted into holes on the PCB and are fixed by soldering. For PCB surface-mounted terminals
type, terminals are surface-mounted and soldered on the PCB. These switches can be
transported in a standalone package, or using a taping packaging method where a carrier tape
holds the switches in place with clearance between them.
Other variations include horizontal push button type, long-stroke type, and ultra subminiature
type switches and many more, ranging from different shapes and specifications that cater to
various applications

Read More

Product Features

      • Introducing the WEUP Tact Switch: Enhancing Your Business with Quality and ReliabilityAre you a B2B buyer looking for a reliable and high-quality tactile switch? Look no further than the WEUP Tact Switch (model number TVCU12). Designed to meet the needs of importers, distributors, manufacturers, brands, wholesalers, and retailers, this innovative product offers a range of features and functions that will enhance your business operations.

        1. Fully encapsulated contacts for increased reliability

        The WEUP Tact Switch is built with fully encapsulated contacts, ensuring enhanced reliability in various applications. Whether you are using it in small appliances, computers and peripherals, or medical instrumentation, you can count on the durability and longevity of this switch. This feature makes it an ideal choice for high-density installations, saving valuable space on your PCB.

        2. Ultra Small Tactile Switches

        The compact size of the WEUP Tact Switch makes it suitable for applications where space is limited. With dimensions of 5.2×5.2mm, this switch is designed to be mounted onto the surface of printed circuit boards (PCB), allowing for easy integration into your electronic circuits. Its small footprint ensures compatibility with a wide range of devices and equipment.

        3. IP67 splash-proof rubber boot option

        In environments where moisture or dust may be present, the WEUP Tact Switch offers an optional IP67 splash-proof rubber boot. This additional feature provides protection against water and dust, making it ideal for harsh environmental conditions. You can confidently use this switch in applications where reliability and durability are paramount.

        4. Wide range of applications

        The WEUP Tact Switch is suitable for a variety of applications across different industries. Whether you are in the household appliances sector, office equipment industry, or medical instrumentation field, this versatile switch will meet your needs. Its compatibility with various devices, such as temperature controllers, air conditioning systems, printers, and measuring instruments, makes it an essential component for your business.

        5. High-quality specifications

        When it comes to specifications, the WEUP Tact Switch delivers exceptional performance. With a contact rating of DC 12V 50mA and DC 1V 10μA, this switch is capable of handling different voltages and currents. It features a bounce time of less than 5ms, ensuring quick and responsive operation. Additionally, the switch offers insulation resistance of at least 100 MΩ and contact resistance of less than 100mΩ, further guaranteeing its reliability.

Applications and Certifications:

The WEUP Tact Switch finds its application in a wide range of industries:

  • Commercial equipment and industrial machinery: Use the WEUP Tact Switch in operating units to enable setting operating modes and conditions, as well as starting and stopping operations in devices such as temperature controllers, air conditioning systems, inverter control panels, measuring instruments, and medical devices.
  • Household appliances and office equipment: Enable mode settings and operation controls in devices like printers, multifunction printers, dishwashers, and washing machines using the WEUP Tact Switch. Its water resistance ensures reliable performance even in wet environments.

To ensure quality assurance and compliance with international standards, the WEUP Tact Switch has obtained certifications from CQC, CCC, CE, RoHS, ENEC, PAHS, VDE, TUV, and UL.

In conclusion, the WEUP Tact Switch (TVCU12) offers a compelling solution for B2B buyers seeking reliability and quality in their tactile switches. With fully encapsulated contacts, compact size, optional splash-proof rubber boot, wide range of applications, high-quality specifications, distinct click response, and high durability, this switch stands out among China manufacturers.

Investing in the WEUP Tact Switch means investing in a product that will enhance your business operations by providing reliable performance in various applications. Don’t miss out on the opportunity to partner with us and experience the benefits firsthand. Contact our authorized distributors or wholesalers to get started today!

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.


We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service


Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

Rating (resistive load)1 to 50 mA, 3 to 24 VDC
Minimum applicable load (reference value)10 A at 1 VDC (resistive load)
Ambient operating temperature-25C to +70C at 60%RH max. (with no icing or condensation)
Ambient operating humidity35% to 85% (at +5 to +35C)
Contact formSPST-NO
Contact resistance (initial value)100 mΩ max.
Insulation resistance100 MΩ min. (at 250 VDC with insulation tester)
Dielectric strength500 VAC, 50/60 Hz for 1 min
Bounce time5 ms max.
Vibration resistanceMalfunction: 10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceDestruction: 1,000 m/s2 {approx. 100G} max. Malfunction: 100 m/s2 {approx. 10G} max.
DurabilityStandard force models (1.57 N {160 gf}): 500,000 operations min. High-force models (2.26 N {230 gf}): 300,000 operations min.
WeightApprox. 0.3 g
Degree of protectionIEC IP67

TVCU12 5.2X5.2mm Micro Tactile Switch Push Button Switches SMT SMDTVCU12 5.2X5.2mm Micro Tactile Switch Push Button Switches SMT SMD
