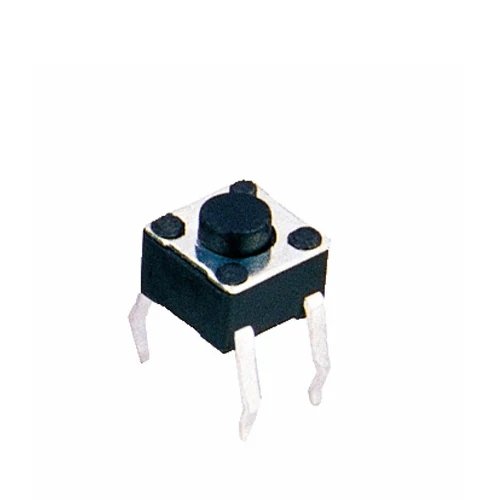

TVCP02 4.5X4.5mm Micro Tactile Switch Push Button Switches SMT SMD

TVCP02

FEATURES AND BENEFITS

Fully encapsulated contacts for increased reliability
Ultra Small Tactile Switches
IP67 splashproof rubber boot option
Suitable for high-density installations

TYPICAL APPLICATIONS

Small appliances
Computers and peripherals
Medical instrumentation

SPECIFICATIONS

Contact Rating:	DC 12V 50mA DC 1V 10μA
Bounce	＜5mS
Insulation Resistance:	≧ 100 MΩ
Degree of Protection:	IP 67
Operating Temperature:	T +5/+35
Contact Resistance:	≦ 100mΩ

PRODUCT DETAILS

Send Your Inquiry

Details
Features
Why Choose WEUP?
Certificates
Technical Data
Related Products
Catalog
Top

A tactile switch allows electricity to flow in an electrical circuit by manually pressing the operating section. The switch is used to supply input signal to actuate a device or equipment. It is designed with a small footprint suited for mounting onto the surface of printed circuit

boards (PCBs) made to connect electronic components to form electronic circuits (Figure 1). The switch activates when pressed and then turns off when released. This action is called ‘momentary action’ and can only be performed at low voltage and low current.

There are many different types of tactile switches, also known as tactile push switches or tact switches, used in a variety of applications including household appliances, office equipment, commercial equipment, and industrial machinery.

There are optional features such as size (external dimension), board mounting, and sealing structure for users to select for their applications. A tactile switch is literally a switch that users can “feel a click sense of touch”.

<Click response>

A click response of a button is the most characteristic feature of a tactile switch that lets users

feel the response of the operation from a switch. A clicking feel is generated from the contact

dome embedded in the switch. How large an operation stroke and how sharp a click sense of

touch depends on the materials and shapes of the contact dome.

<High Durability>

The contact dome also acts as a movable contact in a tactile switch. The resistance value

(contact resistance) which is generated between a movable contact and a fixed contact when a

switch is turned on can be stabilized by using specific materials, surface processing, and shape

enabling high durability capable of withstanding 100 thousand to 10 million times of use.

Models

There are two types of tactile switches: Standard tactile switches and sealed tactile switches. The
sealed tactile switches are dust-protected and water-resistant to withstand harsh environmental
conditions. They are further sub-categorized into two types: PCB insert hole terminals type
and PCB surface mounted terminals type. For PCB insert hole terminals type, terminals are
inserted into holes on the PCB and are fixed by soldering. For PCB surface-mounted terminals
type, terminals are surface-mounted and soldered on the PCB. These switches can be
transported in a standalone package, or using a taping packaging method where a carrier tape
holds the switches in place with clearance between them.
Other variations include horizontal push button type, long-stroke type, and ultra subminiature
type switches and many more, ranging from different shapes and specifications that cater to
various applications

- - Introducing the WEUP Tact Switch: The Ultimate Solution for Your B2B NeedsAre you a B2B buyer in search of a reliable and high-quality tactile switch for your business? Look no further than the WEUP Tact Switch! Designed to meet the needs of importers, distributors, manufacturers, brands, wholesalers, and retailers, this exceptional product is set to revolutionize the industry. With its impressive features and functions, the WEUP Tact Switch stands out from the competition and guarantees optimum performance for a wide range of applications.
    Why Choose the WEUP Tact Switch?
    1. Fully Encapsulated Contacts for Increased Reliability: The WEUP Tact Switch is engineered with fully encapsulated contacts, ensuring enhanced durability and reliability. This feature minimizes the risk of contact damage, making it perfect for high-density installations.
    2. Ultra Small Size: With dimensions of 4.5×4.5mm, the WEUP Tact Switch is incredibly compact. Its small footprint allows for easy surface mounting onto printed circuit boards (PCB), making it an ideal choice for small appliances, computers and peripherals, and medical instrumentation.
    3. IP67 Splash Proof Rubber Boot Option: For added protection against water splashes and dust, the WEUP Tact Switch offers an optional IP67 splash-proof rubber boot. This feature makes it suitable for use in various environments, including those with harsh conditions.
    4. Wide Range of Applications: The versatility of the WEUP Tact Switch is unmatched. It can be utilized in a multitude of applications, including household appliances, office equipment, commercial equipment, and industrial machinery. Whatever your business needs, this switch has got you covered.

Why Choose WEUP?

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Certificates

VDE Certificates

CCC Certificates

CE Certificates

CQC Certificates

ENEC Certificates

PAHS Certificates

RoHS Certificates

TUV Certificates

UL Certificates

Technical Data

Characteristics
Drawings

Rating (resistive load)	1 to 50 mA, 3 to 24 VDC
Minimum applicable load (reference value)	10 A at 1 VDC (resistive load)
Ambient operating temperature	-25C to +70C at 60%RH max. (with no icing or condensation)
Ambient operating humidity	35% to 85% (at +5 to +35C)
Contact form	SPST-NO
Contact resistance (initial value)	100 mΩ max.
Insulation resistance	100 MΩ min. (at 250 VDC with insulation tester)
Dielectric strength	500 VAC, 50/60 Hz for 1 min
Bounce time	5 ms max.
Vibration resistance	Malfunction: 10 to 55 Hz, 1.5-mm double amplitude
Shock resistance	Destruction: 1,000 m/s2 {approx. 100G} max. Malfunction: 100 m/s2 {approx. 10G} max.
Durability	Standard force models (1.57 N {160 gf}): 500,000 operations min. High-force models (2.26 N {230 gf}): 300,000 operations min.
Weight	Approx. 0.3 g
Degree of protection	IEC IP67
Washing	Possible
