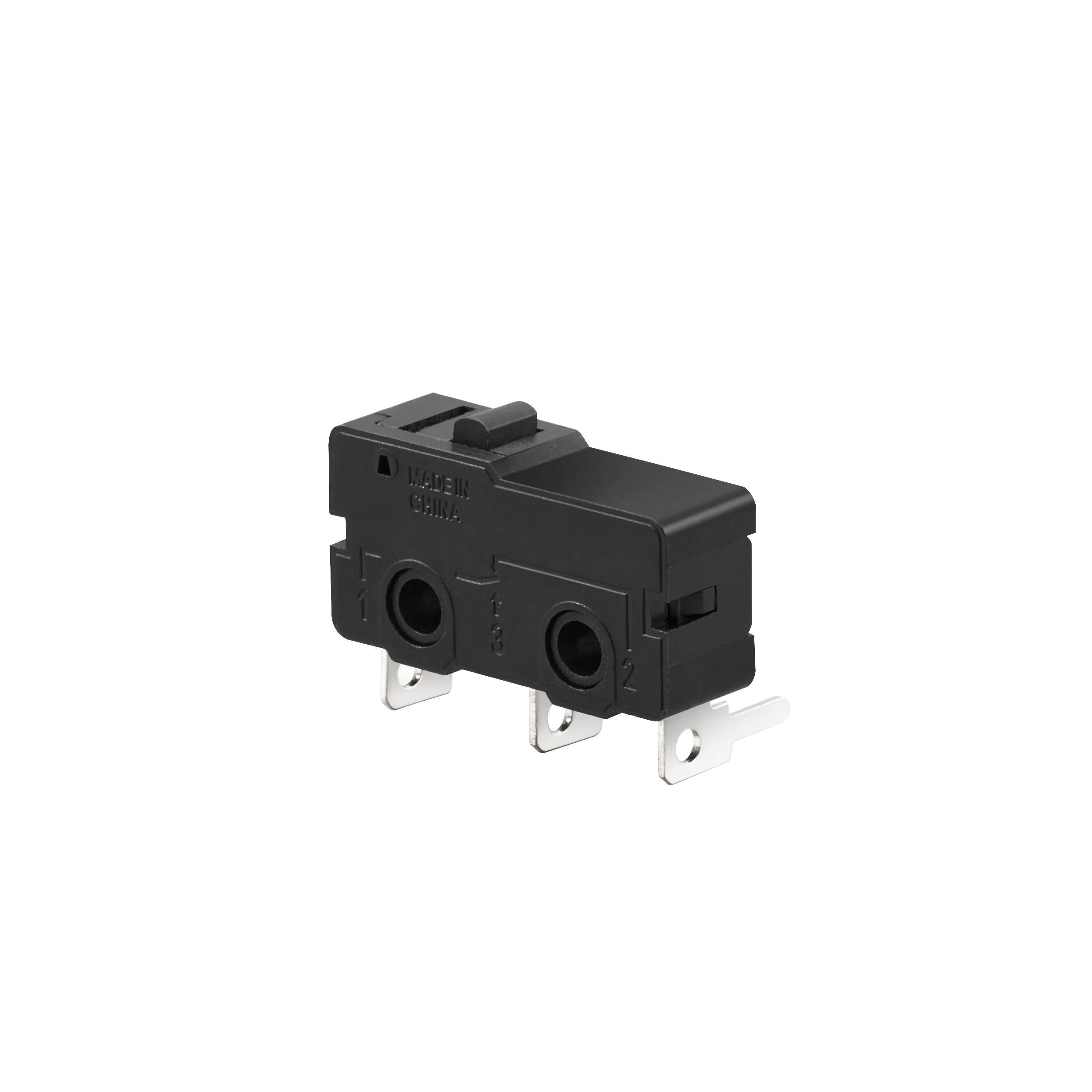

Micro Switch Subminiature Basic Switch SS-GL13-E-3D

Micro Switch SS

FEATURES AND BENEFITS

● The WEUP’s best-selling micro switches of a wide variety from 0.1A to 10.1A.

● A variety of models are available, with operating force ranging from low to high.

● Two split springs ensure a high stability and durability of 30,000,000 operations.

● 1 mm MIN Contact Gap Models available for Interlock applications

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
10A 250V AC

5A 125V AC

0.1A 30V DC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 40
  • Operating Temperature:
T 105/55
  • Contact Resistance:
≦ 50mΩ

Basic Switches have a micro contact gap and operate at the specified movement and force using a snap-action mechanism. They are available in models with split contacts, maintained operation, drip-proof specifications, high capacity, and DC current specifications.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP Micro switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also, WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.



Read More

Product Features

Introducing the WEUP Micro Switch Subminiature (model number SS-GL13-E-3D) – the perfect solution for B2B buyers in need of reliable and versatile micro switches. As importers, distributors, manufacturers, brands, wholesalers, and retailers, you’ll appreciate the wide range of features and benefits that the WEUP Micro Switch Subminiature offers.

1. Wide Variety of Models and Operating Force

The WEUP Micro Switch Subminiature comes in a variety of models with operating forces ranging from low to high. Whether you need a switch with a delicate touch or one that can handle more demanding applications, WEUP has got you covered. With options like pin plungers, hinge levers, and roller levers, you can choose the design that best suits your specific needs.

2. High Stability and Durability

One outstanding feature of the WEUP Micro Switch Subminiature is its two split springs, which ensure a high level of stability and durability. These switches are built to withstand up to 30,000,000 operations, providing long-lasting performance even in demanding environments. This high level of durability makes them ideal for a wide range of applications, from small appliances to medical instrumentation.

3. Interlock Applications

For applications requiring a minimum contact gap, the WEUP Micro Switch Subminiature has models available with a 1 mm MIN contact gap. This feature is particularly useful for interlock applications where safety is a priority.

4. Wide Compatibility

The WEUP Micro Switch Subminiature boasts an impressive contact rating, making it suitable for various applications. It can handle 10A 250V AC, 5A 125V AC, and 0.1A 30V DC. This wide compatibility ensures that you can use these micro switches across different industries and products.

5. Customizable Options

WEUP Micro Switch Subminiature provides customization options to meet your specific requirements. With their own D&R development capabilities, WEUP can create new models according to your requests. Whether you need a specific shape, size, construction, or even custom wire harness and actuator marking, WEUP has the flexibility to accommodate your needs.

Now that we’ve covered the key features and benefits of the WEUP Micro Switch Subminiature, let’s explore why it’s an excellent choice for B2B buyers like you.

Reliability in Performance

When it comes to micro switches, reliability is crucial. The WEUP Micro Switch Subminiature has been designed and tested to ensure consistent and dependable performance. With a high electrical life of over 50,000 cycles and a contact resistance of less than 50mΩ, you can trust these switches to deliver optimal performance over an extended period.

Versatility Across Industries

The WEUP Micro Switch Subminiature finds applications across various industries, making it a versatile solution for B2B buyers. Whether you are in the small appliance industry, computers and peripherals, or medical instrumentation, these micro switches offer the flexibility you need. Their wide compatibility with different voltages and current ratings allows for seamless integration into your products.

Support from China Manufacturers

As B2B buyers, having support from reliable manufacturers is essential. When choosing the WEUP Micro Switch Subminiature, you benefit from the expertise of China manufacturers who have a proven track record in producing high-quality components. With their experience and dedication to customer satisfaction, you can trust that these micro switches are manufactured to meet the highest standards.

Ease of Integration

The WEUP Micro Switch Subminiature is designed for easy integration into your products or systems. With options like solder terminals, quick-connect terminals (#110), and PCB terminals, you can choose the most convenient connection method for your specific application.

Competitive Pricing

WEUP understands the importance of competitive pricing in today’s market. As B2B buyers, you can rely on WEUP to offer reasonable pricing without compromising on quality. By sourcing directly from the manufacturer, you eliminate unnecessary middlemen costs and ensure a cost-effective solution for your business.

In conclusion, the WEUP Micro Switch Subminiature (model number SS-GL13-E-3D) is an excellent choice for B2B buyers like importers, distributors, manufacturers, brands, wholesalers, and retailers. Its wide range of models, high stability and durability, compatibility across industries, support from China manufacturers, ease of integration, and competitive pricing make it a compelling choice for your business needs. Don’t miss out on this opportunity to enhance your products with reliable and versatile micro switches from WEUP. Contact us today to explore how the WEUP Micro Switch Subminiature can benefit your business.

Key Features:

  • Wide variety of models with operating force ranging from low to high
  • Two split springs for high stability and durability
  • Models available with a 1 mm MIN contact gap for interlock applications
  • Wide compatibility with contact ratings of 10A 250V AC, 5A 125V AC, and 0.1A 30V DC
  • Customization options available
  • High electrical life of over 50,000 cycles
  • Contact resistance of less than 50mΩ
  • Versatile across industries including small appliances, computers and peripherals, and medical instrumentation
  • Support from reliable China manufacturers
  • Ease of integration with different terminal options
  • Competitive pricing

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

Micro Switch Subminiature Basic Switch SS-5T

ratingsActuatorMaximum Operating Force (OF)Contact FormTerminalsHeat resistance
10: 250 VAC 10.1ANone: Pin plunger Micro Switch Subminiature Basic Switch SS-5GL13None: 1.47 N {150 gf}1: SPDT Micro Switch Subminiature Basic Switch SS-5GL13None: Solder terminalsNone: Standard (85°C)
5: 125 VAC 5 A1: Short hinge lever Micro Switch Subminiature Basic Switch SS-5GL13-F: 0.49 N {50 gf} (0.1 A, 5 A)2: SPST-NC Micro Switch Subminiature Basic Switch SS-5GL13T: Quick-connect terminals (#110)-T: Heat-resistant (120°C)
01: 30 VDC 0.1A2: Hinge lever Micro Switch Subminiature Basic Switch SS-5GL13-E : 0.25 N {25 gf} (0.1 A)3: SPST-NO Micro Switch Subminiature Basic Switch SS-5GL13D: PCB terminals
3: Long hinge lever Micro Switch Subminiature Basic Switch SS-5GL13Note:
4: Simulated roller lever Micro Switch Subminiature Basic Switch SS-5GL13
5: Short hinge roller lever Micro Switch Subminiature Basic Switch SS-5GL13
6: Hinge roller lever Micro Switch Subminiature Basic Switch SS-5GL13
ActuatorTerminalsContact FormMaximum Operating Force (OF)10.1 A5 A0.1 A
Pin plunger Micro Switch Subminiature Basic Switch SS-5TSolder terminalsSPDT1.47 N {150 gf}SS-10SS-5SS-01
SPST-NCSS-10-2SS-5-2SS-01-2
SPST-NOSS-10-3SS-5-3SS-01-3
Quick-connect terminals (#110)SPDTSS-10TSS-5TSS-01T
SPST-NCSS-10-2TSS-5-2TSS-01-2T
SPST-NOSS-10-3TSS-5-3TSS-01-3T
PCB terminalsSPDTSS-10DSS-5DSS-01D
SPST-NCSS-10-2DSS-5-2DSS-01-2D
SPST-NOSS-10-3DSS-5-3DSS-01-3D
Solder terminalsSPDT0.49 N {50 gf}SS-5-FSS-01-F
SPST-NCSS-5-F-2SS-01-F-2
SPST-NOSS-5-F-3SS-01-F-3
Quick-connect terminals (#110)SPDTSS-5-FTSS-01-FT
SPST-NCSS-5-F-2TSS-01-F-2T
SPST-NOSS-5-F-3TSS-01-F-3T
PCB terminalsSPDTSS-5-FDSS-01-FD
SPST-NCSS-5-F-2DSS-01-F-2D
SPST-NOSS-5-F-3DSS-01-F-3D
Solder terminalsSPDT0.25 N {25 gf}SS-01-E
SPST-NCSS-01-E-2
SPST-NOSS-01-E-3
Quick-connect terminals (#110)SPDTSS-01-ET
SPST-NCSS-01-E-2T
SPST-NOSS-01-E-3T
PCB terminalsSPDTSS-01-ED
SPST-NCSS-01-E-2D
SPST-NOSS-01-E-3D
Item                                                 ModelSS-10 modelsSS-5 modelsSS-01 modelsSS-5F models
Permissible operating speed0.1 mm to 1 m/s (for pin plunger models)
Permissible operating frequencyMechanical400 operations/min
Electrical60 operations/min
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)OF 1.47 N models30 mΩ max.50 mΩ max.30 mΩ max.
OF 0.49 N models50 mΩ max.100 mΩ max.
OF 0.25 N models150 mΩ max.
Dielectric strength *1Between terminals of the same polarity1,000 VAC 50/60 Hz for 1 min600 VAC
50/60 Hz for 1 min
1,000 VAC
50/60 Hz for 1 min
Between current-carrying metal parts and ground1,500 VAC 50/60 Hz for 1 min
Between each terminal and non-current-carrying metal parts1,500 VAC 50/60 Hz for 1 min
Vibration resistance
*2
Malfunction10 to 55 Hz, 1.5 mm double amplitude
Shock resistanceDurabilityOF 1.47 N models1,000 m/s2 {approx. 100G} max.
OF 0.49 N models500 m/s2 {approx. 50G} max.
OF 0.25 N models500 m/s2 {approx. 50G} max.
Malfunction
*2
OF 1.47 N models300 m/s2 {approx. 30G} max.
OF 0.49 N models200 m/s2 {approx. 20G} max.
OF 0.25 N models200 m/s2 {approx. 20G} max.
Durability
*3
Mechanical10,000,000 operations min.
(60 operations/min)
30,000,000 operations min.
(60 operations/min)
100,000
operations min. (60 operations/min)
Electrical50,000 operations min.
(30 operations/min)
200,000 operations min.
(30 operations/min)
100,000
operations min. (30 operations/min)
Degree of protectionIEC IP40
Degree of protection against electric shockClass I
Proof tracking index (PTI)175
Ambient operating temperature-25°C to 85°C (at ambient humidity of 60% max.) (with no icing or condensation)
Ambient operating humidity85% max. (for 5°C to 35°C)
WeightApprox. 1.6g (pin plunger models)

Micro Switch Subminiature Basic Switch SS-5T

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.

MonitorsCopiersPrinters
Micro Switch Subminiature Basic Switch SS-5TMicro Switch Subminiature Basic Switch SS-5TMicro Switch Subminiature Basic Switch SS-5T
Power SuppliesMeasuring DevicesPower Outlet Strips
Micro Switch Subminiature Basic Switch SS-5TMicro Switch Subminiature Basic Switch SS-5TMicro Switch Subminiature Basic Switch SS-5GL13-F
