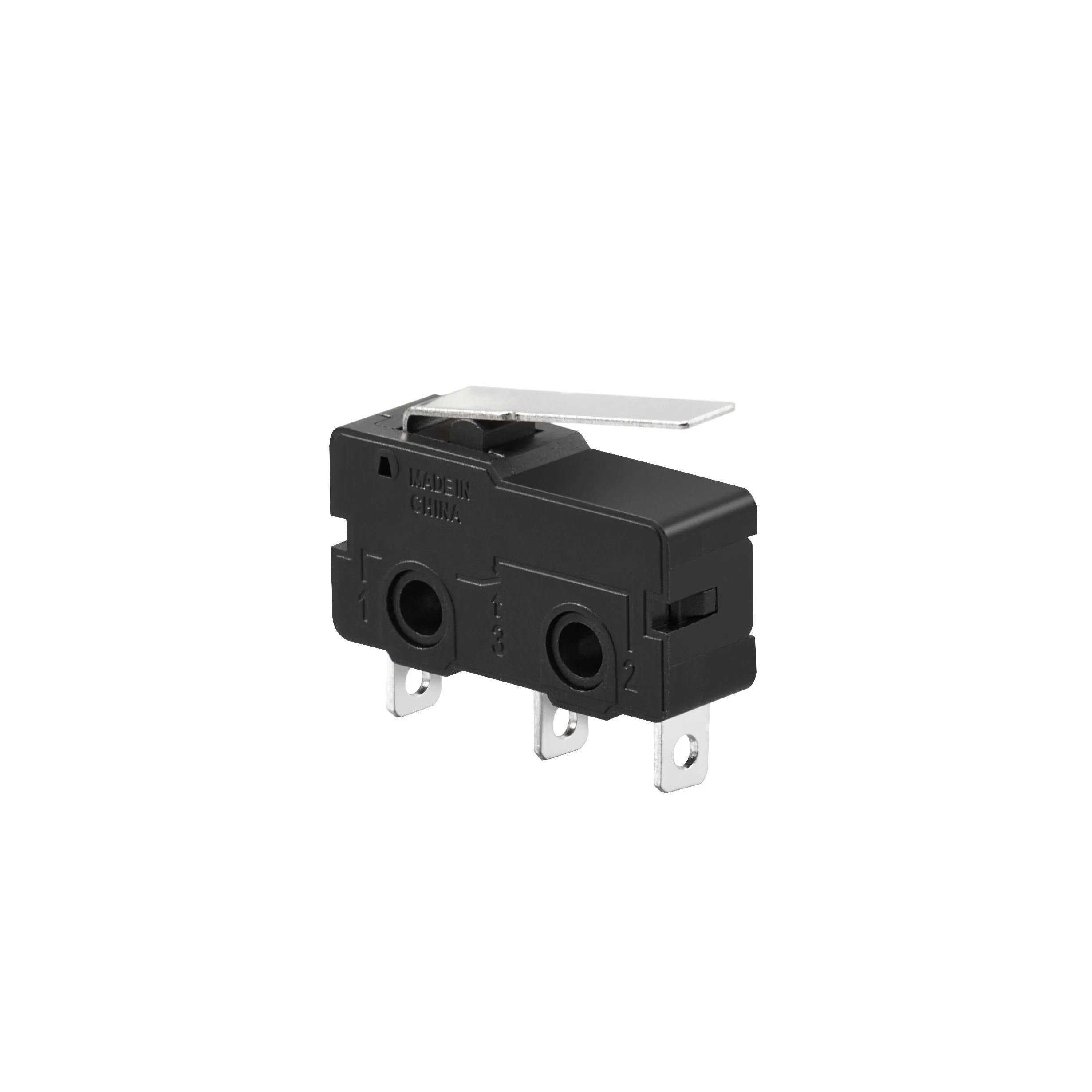

Micro Switch Subminiature Basic Switch SS-5GL111-F

Micro Switch SS

FEATURES AND BENEFITS

● The WEUP’s best-selling micro switches of a wide variety from 0.1A to 10.1A.

● A variety of models are available, with operating force ranging from low to high.

● Two split springs ensure a high stability and durability of 30,000,000 operations.

● 1 mm MIN Contact Gap Models available for Interlock applications

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
10A 250V AC

5A 125V AC

0.1A 30V DC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 40
  • Operating Temperature:
T 105/55
  • Contact Resistance:
≦ 50mΩ

Basic Switches have a micro contact gap and operate at the specified movement and force using a snap-action mechanism. They are available in models with split contacts, maintained operation, drip-proof specifications, high capacity, and DC current specifications.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP Micro switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also, WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.



Read More

Product Features

WEUP Micro Switch Subminiature: The Ultimate Choice for B2B Buyers

When it comes to micro switches, WEUP’s Micro Switch Subminiature stands out as the ultimate choice for B2B buyers. Whether you are an importer, distributor, manufacturer, brand, wholesaler, or retailer, this product is designed to meet your specific needs and exceed your expectations. Let’s delve into the compelling features and functions of the WEUP Micro Switch Subminiature that make it the go-to option for businesses worldwide.

Reliability and Durability

One of the most crucial factors when choosing a micro switch is its reliability and durability. The WEUP Micro Switch Subminiature excels in both aspects, making it a reliable component for a wide range of applications. With an electrical life of over 50,000 cycles, this micro switch ensures long-lasting performance in demanding environments. Moreover, it boasts a high stability and durability of 30,000,000 operations, thanks to its two split springs. This feature guarantees consistent performance even after extensive use.

Wide Variety and Flexibility

WEUP understands the diverse needs of businesses and offers a wide variety of models to cater to different requirements. The Micro Switch Subminiature is available in various configurations, including different contact ratings ranging from 0.1A to 10.1A. This extensive range allows you to choose the ideal micro switch for your specific application, ensuring optimal performance and compatibility.

Versatile Applications

The versatility of the WEUP Micro Switch Subminiature makes it an excellent choice for various industries and applications. Whether you are in the small appliance sector, computer and peripherals industry, or medical instrumentation field, this micro switch can seamlessly integrate into your products or equipment. Its reliable performance and wide operating temperature range of T105/55 make it suitable for use in challenging environments.

Customization Options

WEUP understands that each business may have unique requirements. That’s why they offer customization options for the Micro Switch Subminiature. As a China manufacturer with its own D&R development, WEUP can create new models according to your specific requests. From shapes and sizes to construction and frames, you can tailor the micro switch to suit your needs perfectly. Additionally, WEUP can provide custom wire harness and actuator marking options to meet your design requirements.

Certifications and Compliance

When choosing a micro switch supplier, it’s crucial to consider certifications and compliance with industry standards. WEUP Micro Switch Subminiature meets several certifications, including CQC, CCC, CE, RoHS, ENEC, PAHS, VDE, TUV, and UL. These certifications ensure that the product meets rigorous quality standards and complies with relevant regulations. By choosing the WEUP Micro Switch Subminiature, you can have peace of mind knowing that you are purchasing a reliable and compliant product.

Supportive Services

WEUP not only offers exceptional products but also provides excellent customer support. Their team of experts is ready to assist you throughout the purchasing process. From technical inquiries to after-sales support, WEUP is dedicated to ensuring your satisfaction as a valued customer. Moreover, their extensive network of suppliers and vendors enables them to provide competitive prices without compromising on quality.

Applications

The WEUP Micro Switch Subminiature finds its applications in a wide range of industries and products. Some notable examples include:

  • Small appliances: From air purifiers to dehumidifiers, the Micro Switch Subminiature offers reliable switching capabilities for improved functionality and user experience.
  • Computers and peripherals: Monitors, printers, and copiers rely on micro switches for precise control and reliable operation.
  • Medical instrumentation: The accuracy and reliability of medical devices are crucial. The Micro Switch Subminiature ensures smooth operation in critical medical applications.

Conclusion

In conclusion, the WEUP Micro Switch Subminiature is the ultimate choice for B2B buyers seeking a reliable and versatile micro switch solution. With its outstanding reliability and durability, wide variety of models, customization options, certifications and compliance, supportive services, and versatile applications, this micro switch is a standout option in the market. By choosing the WEUP Micro Switch Subminiature, you can trust that you are investing in a high-quality product that will meet your specific needs and surpass your expectations. Contact WEUP today to experience the excellence of their Micro Switch Subminiature and join their satisfied customer base of importers, distributors, manufacturers, brands, wholesalers, and retailers worldwide.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

Micro Switch Subminiature Basic Switch SS-5T

ratingsActuatorMaximum Operating Force (OF)Contact FormTerminalsHeat resistance
10: 250 VAC 10.1ANone: Pin plunger Micro Switch Subminiature Basic Switch SS-5GL13None: 1.47 N {150 gf}1: SPDT Micro Switch Subminiature Basic Switch SS-5GL13None: Solder terminalsNone: Standard (85°C)
5: 125 VAC 5 A1: Short hinge lever Micro Switch Subminiature Basic Switch SS-5GL13-F: 0.49 N {50 gf} (0.1 A, 5 A)2: SPST-NC Micro Switch Subminiature Basic Switch SS-5GL13T: Quick-connect terminals (#110)-T: Heat-resistant (120°C)
01: 30 VDC 0.1A2: Hinge lever Micro Switch Subminiature Basic Switch SS-5GL13-E : 0.25 N {25 gf} (0.1 A)3: SPST-NO Micro Switch Subminiature Basic Switch SS-5GL13D: PCB terminals
3: Long hinge lever Micro Switch Subminiature Basic Switch SS-5GL13Note:
4: Simulated roller lever Micro Switch Subminiature Basic Switch SS-5GL13
5: Short hinge roller lever Micro Switch Subminiature Basic Switch SS-5GL13
6: Hinge roller lever Micro Switch Subminiature Basic Switch SS-5GL13
ActuatorTerminalsContact FormMaximum Operating Force (OF)10.1 A5 A0.1 A
Pin plunger Micro Switch Subminiature Basic Switch SS-5TSolder terminalsSPDT1.47 N {150 gf}SS-10SS-5SS-01
SPST-NCSS-10-2SS-5-2SS-01-2
SPST-NOSS-10-3SS-5-3SS-01-3
Quick-connect terminals (#110)SPDTSS-10TSS-5TSS-01T
SPST-NCSS-10-2TSS-5-2TSS-01-2T
SPST-NOSS-10-3TSS-5-3TSS-01-3T
PCB terminalsSPDTSS-10DSS-5DSS-01D
SPST-NCSS-10-2DSS-5-2DSS-01-2D
SPST-NOSS-10-3DSS-5-3DSS-01-3D
Solder terminalsSPDT0.49 N {50 gf}SS-5-FSS-01-F
SPST-NCSS-5-F-2SS-01-F-2
SPST-NOSS-5-F-3SS-01-F-3
Quick-connect terminals (#110)SPDTSS-5-FTSS-01-FT
SPST-NCSS-5-F-2TSS-01-F-2T
SPST-NOSS-5-F-3TSS-01-F-3T
PCB terminalsSPDTSS-5-FDSS-01-FD
SPST-NCSS-5-F-2DSS-01-F-2D
SPST-NOSS-5-F-3DSS-01-F-3D
Solder terminalsSPDT0.25 N {25 gf}SS-01-E
SPST-NCSS-01-E-2
SPST-NOSS-01-E-3
Quick-connect terminals (#110)SPDTSS-01-ET
SPST-NCSS-01-E-2T
SPST-NOSS-01-E-3T
PCB terminalsSPDTSS-01-ED
SPST-NCSS-01-E-2D
SPST-NOSS-01-E-3D
Item                                                 ModelSS-10 modelsSS-5 modelsSS-01 modelsSS-5F models
Permissible operating speed0.1 mm to 1 m/s (for pin plunger models)
Permissible operating frequencyMechanical400 operations/min
Electrical60 operations/min
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)OF 1.47 N models30 mΩ max.50 mΩ max.30 mΩ max.
OF 0.49 N models50 mΩ max.100 mΩ max.
OF 0.25 N models150 mΩ max.
Dielectric strength *1Between terminals of the same polarity1,000 VAC 50/60 Hz for 1 min600 VAC
50/60 Hz for 1 min
1,000 VAC
50/60 Hz for 1 min
Between current-carrying metal parts and ground1,500 VAC 50/60 Hz for 1 min
Between each terminal and non-current-carrying metal parts1,500 VAC 50/60 Hz for 1 min
Vibration resistance
*2
Malfunction10 to 55 Hz, 1.5 mm double amplitude
Shock resistanceDurabilityOF 1.47 N models1,000 m/s2 {approx. 100G} max.
OF 0.49 N models500 m/s2 {approx. 50G} max.
OF 0.25 N models500 m/s2 {approx. 50G} max.
Malfunction
*2
OF 1.47 N models300 m/s2 {approx. 30G} max.
OF 0.49 N models200 m/s2 {approx. 20G} max.
OF 0.25 N models200 m/s2 {approx. 20G} max.
Durability
*3
Mechanical10,000,000 operations min.
(60 operations/min)
30,000,000 operations min.
(60 operations/min)
100,000
operations min. (60 operations/min)
Electrical50,000 operations min.
(30 operations/min)
200,000 operations min.
(30 operations/min)
100,000
operations min. (30 operations/min)
Degree of protectionIEC IP40
Degree of protection against electric shockClass I
Proof tracking index (PTI)175
Ambient operating temperature-25°C to 85°C (at ambient humidity of 60% max.) (with no icing or condensation)
Ambient operating humidity85% max. (for 5°C to 35°C)
WeightApprox. 1.6g (pin plunger models)

Micro Switch Subminiature Basic Switch SS-5T

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.

MonitorsCopiersPrinters
Micro Switch Subminiature Basic Switch SS-5TMicro Switch Subminiature Basic Switch SS-5TMicro Switch Subminiature Basic Switch SS-5T
Power SuppliesMeasuring DevicesPower Outlet Strips
Micro Switch Subminiature Basic Switch SS-5TMicro Switch Subminiature Basic Switch SS-5TMicro Switch Subminiature Basic Switch SS-5GL13-F
