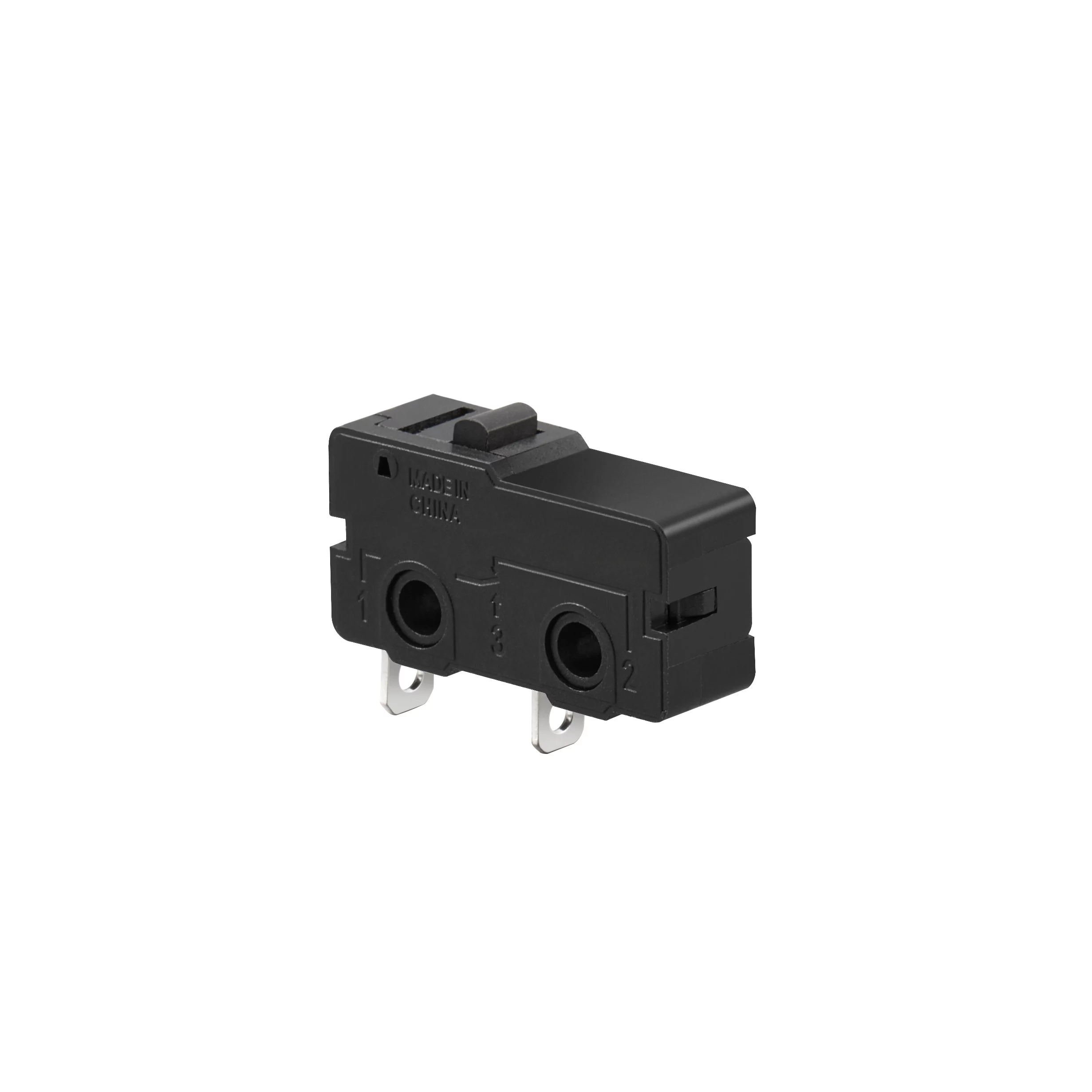

Micro Switch Subminiature Basic Switch SS-5-3

Micro Switch SS

FEATURES AND BENEFITS

● The WEUP’s best-selling micro switches of a wide variety from 0.1A to 10.1A.

● A variety of models are available, with operating force ranging from low to high.

● Two split springs ensure a high stability and durability of 30,000,000 operations.

● 1 mm MIN Contact Gap Models available for Interlock applications

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
10A 250V AC

5A 125V AC

0.1A 30V DC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 40
  • Operating Temperature:
T 105/55
  • Contact Resistance:
≦ 50mΩ

Basic Switches have a micro contact gap and operate at the specified movement and force using a snap-action mechanism. They are available in models with split contacts, maintained operation, drip-proof specifications, high capacity, and DC current specifications.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP Micro switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also, WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.



Read More

Product Features

Introducing WEUP’s Micro Switch Subminiature

Are you a B2B buyer in search of reliable and high-quality micro switches? Look no further than WEUP’s Micro Switch Subminiature. As one of the leading China manufacturers in the industry, WEUP offers a wide range of micro switches that are perfect for importers, distributors, manufacturers, brands, wholesalers, and retailers. Let’s explore the compelling features and functions of this exceptional product.

Reliable Performance

  • WEUP’s Micro Switch Subminiature is designed for optimal performance, ensuring the smooth operation of various applications. With a contact rating of 10A 250V AC, 5A 125V AC, and 0.1A 30V DC, this micro switch can handle different voltage and current requirements.
  • The electrical life of ≧ 50,000 cycles guarantees long-lasting durability, making it a reliable choice for your business needs.
  • It boasts excellent insulation resistance of ≧ 100 MΩ, providing a safe and secure electrical connection.
  • The degree of protection, IP 40, ensures protection against dust and solid objects, making it suitable for various environments.

Versatility

  • WEUP offers a variety of models with different operating forces ranging from low to high. This allows you to choose the ideal micro switch for your specific application requirements.
  • The availability of two split springs enhances stability and durability, ensuring a long lifespan of up to 30,000,000 operations. This feature makes WEUP’s Micro Switch Subminiature an excellent investment for your business.
  • For interlock applications, models with a 1mm minimum contact gap are available. This ensures safety and reliability in critical applications.

Wide Range of Applications WEUP’s Micro Switch Subminiature is highly versatile and finds application in various industries:

  • Small appliances: Whether it’s coffee makers, rice cookers, or home electronics, this micro switch provides precise and consistent control for smooth operation.
  • Computers and peripherals: From keyboards to computer mice, this micro switch ensures accurate input and reliable performance.
  • Medical instrumentation: In medical devices where precision and reliability are critical, WEUP’s Micro Switch Subminiature excels in providing accurate and consistent results.

Customization Options At WEUP, we understand that every business has unique requirements. That’s why we offer customization options for our Micro Switch Subminiature:

  • D&R development: Our in-house design and development capabilities allow us to create new models tailored to your specific needs. You can rely on us to meet your custom requirements effectively.
  • Shape and size options: We offer flexibility in shapes and sizes to accommodate different design specifications.
  • Construction options: Choose from various construction options to suit your application needs.
  • Recessed switch guards: Prevent accidental actuation with our recessed switch guards, ensuring safety and reliability.
  • Splash-proof rubber boots: For applications where water resistance is crucial, our micro switches can be equipped with splash-proof rubber boots.
  • Space-saving footprint: Our subminiature sizes are perfect for applications where space is limited, offering compact and efficient solutions.

Quality Assurance and Certifications When purchasing WEUP’s Micro Switch Subminiature, you can trust in the quality and reliability of our products:

  • We uphold strict quality control standards throughout the manufacturing process, ensuring that each micro switch meets our high-quality standards.
  • Our micro switches comply with various industry certifications such as CQC, CCC, CE, RoHS, ENEC, PAHS, VDE, TUV, and UL. These certifications affirm our commitment to delivering safe and compliant products.

Applications of Rocker Switches WEUP also offers a wide range of rocker switches that are widely used in various applications:

  • Power Supply Switches: Our rocker switches are commonly used in consumer electronics, PC peripherals, and office/commercial equipment such as monitors, copiers, printers, power supplies, measuring devices, and power outlet strips.
  • Air Purifiers and Dehumidifiers: These essential appliances rely on rocker switches for convenient control and reliable operation.

In conclusion, WEUP’s Micro Switch Subminiature is an exceptional product that caters to the needs of B2B buyers like importers, distributors, manufacturers, brands, wholesalers, and retailers. With its reliable performance, versatility, customization options, and wide range of applications, this micro switch is the ideal choice for businesses seeking high-quality electrical components. Trust in WEUP as your reliable partner in the industry. Contact us today to explore our extensive range of micro switches and experience the quality and reliability that sets us apart from other suppliers.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

Micro Switch Subminiature Basic Switch SS-5T

ratingsActuatorMaximum Operating Force (OF)Contact FormTerminalsHeat resistance
10: 250 VAC 10.1ANone: Pin plunger Micro Switch Subminiature Basic Switch SS-5GL13None: 1.47 N {150 gf}1: SPDT Micro Switch Subminiature Basic Switch SS-5GL13None: Solder terminalsNone: Standard (85°C)
5: 125 VAC 5 A1: Short hinge lever Micro Switch Subminiature Basic Switch SS-5GL13-F: 0.49 N {50 gf} (0.1 A, 5 A)2: SPST-NC Micro Switch Subminiature Basic Switch SS-5GL13T: Quick-connect terminals (#110)-T: Heat-resistant (120°C)
01: 30 VDC 0.1A2: Hinge lever Micro Switch Subminiature Basic Switch SS-5GL13-E : 0.25 N {25 gf} (0.1 A)3: SPST-NO Micro Switch Subminiature Basic Switch SS-5GL13D: PCB terminals
3: Long hinge lever Micro Switch Subminiature Basic Switch SS-5GL13Note:
4: Simulated roller lever Micro Switch Subminiature Basic Switch SS-5GL13
5: Short hinge roller lever Micro Switch Subminiature Basic Switch SS-5GL13
6: Hinge roller lever Micro Switch Subminiature Basic Switch SS-5GL13
ActuatorTerminalsContact FormMaximum Operating Force (OF)10.1 A5 A0.1 A
Pin plunger Micro Switch Subminiature Basic Switch SS-5TSolder terminalsSPDT1.47 N {150 gf}SS-10SS-5SS-01
SPST-NCSS-10-2SS-5-2SS-01-2
SPST-NOSS-10-3SS-5-3SS-01-3
Quick-connect terminals (#110)SPDTSS-10TSS-5TSS-01T
SPST-NCSS-10-2TSS-5-2TSS-01-2T
SPST-NOSS-10-3TSS-5-3TSS-01-3T
PCB terminalsSPDTSS-10DSS-5DSS-01D
SPST-NCSS-10-2DSS-5-2DSS-01-2D
SPST-NOSS-10-3DSS-5-3DSS-01-3D
Solder terminalsSPDT0.49 N {50 gf}SS-5-FSS-01-F
SPST-NCSS-5-F-2SS-01-F-2
SPST-NOSS-5-F-3SS-01-F-3
Quick-connect terminals (#110)SPDTSS-5-FTSS-01-FT
SPST-NCSS-5-F-2TSS-01-F-2T
SPST-NOSS-5-F-3TSS-01-F-3T
PCB terminalsSPDTSS-5-FDSS-01-FD
SPST-NCSS-5-F-2DSS-01-F-2D
SPST-NOSS-5-F-3DSS-01-F-3D
Solder terminalsSPDT0.25 N {25 gf}SS-01-E
SPST-NCSS-01-E-2
SPST-NOSS-01-E-3
Quick-connect terminals (#110)SPDTSS-01-ET
SPST-NCSS-01-E-2T
SPST-NOSS-01-E-3T
PCB terminalsSPDTSS-01-ED
SPST-NCSS-01-E-2D
SPST-NOSS-01-E-3D
Item                                                 ModelSS-10 modelsSS-5 modelsSS-01 modelsSS-5F models
Permissible operating speed0.1 mm to 1 m/s (for pin plunger models)
Permissible operating frequencyMechanical400 operations/min
Electrical60 operations/min
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)OF 1.47 N models30 mΩ max.50 mΩ max.30 mΩ max.
OF 0.49 N models50 mΩ max.100 mΩ max.
OF 0.25 N models150 mΩ max.
Dielectric strength *1Between terminals of the same polarity1,000 VAC 50/60 Hz for 1 min600 VAC
50/60 Hz for 1 min
1,000 VAC
50/60 Hz for 1 min
Between current-carrying metal parts and ground1,500 VAC 50/60 Hz for 1 min
Between each terminal and non-current-carrying metal parts1,500 VAC 50/60 Hz for 1 min
Vibration resistance
*2
Malfunction10 to 55 Hz, 1.5 mm double amplitude
Shock resistanceDurabilityOF 1.47 N models1,000 m/s2 {approx. 100G} max.
OF 0.49 N models500 m/s2 {approx. 50G} max.
OF 0.25 N models500 m/s2 {approx. 50G} max.
Malfunction
*2
OF 1.47 N models300 m/s2 {approx. 30G} max.
OF 0.49 N models200 m/s2 {approx. 20G} max.
OF 0.25 N models200 m/s2 {approx. 20G} max.
Durability
*3
Mechanical10,000,000 operations min.
(60 operations/min)
30,000,000 operations min.
(60 operations/min)
100,000
operations min. (60 operations/min)
Electrical50,000 operations min.
(30 operations/min)
200,000 operations min.
(30 operations/min)
100,000
operations min. (30 operations/min)
Degree of protectionIEC IP40
Degree of protection against electric shockClass I
Proof tracking index (PTI)175
Ambient operating temperature-25°C to 85°C (at ambient humidity of 60% max.) (with no icing or condensation)
Ambient operating humidity85% max. (for 5°C to 35°C)
WeightApprox. 1.6g (pin plunger models)

Micro Switch Subminiature Basic Switch SS-5T

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.

MonitorsCopiersPrinters
Micro Switch Subminiature Basic Switch SS-5TMicro Switch Subminiature Basic Switch SS-5TMicro Switch Subminiature Basic Switch SS-5T
Power SuppliesMeasuring DevicesPower Outlet Strips
Micro Switch Subminiature Basic Switch SS-5TMicro Switch Subminiature Basic Switch SS-5TMicro Switch Subminiature Basic Switch SS-5GL13-F

Related Products (4)

Download Latest Catalog

Do you supply samples? Are the Samples free?

Yes. Usually, 1-2 samples are free of charge, please support us by providing us with any express account such as DHL, FedEx, TNT, or UPS.

How is the shipping?

Our nearest port is Ningbo and Shanghai port, but if you collect the goods to ship together, we could send them to the other farther port. Usually, our customers will choose TNT, DHL, FedEx, and UPS to ship them.

How long is the delivery leading time?

Usually the samples 1-5 days to prepare. For orders, it depends on the quantity. Usually 5-15 days.

How is the packing?

For standard packing, dozens per box, 500pcs or 1000pcs per carton. We also provide you with custom box or carton packing with your logo and design.

How do you do regarding quality control?

All the products will be 100% checked before the shipment.
