  • Micro Switch Miniature Basic Switch V-164-3C6
  • Micro Switch Miniature Basic Switch V-164-3C6

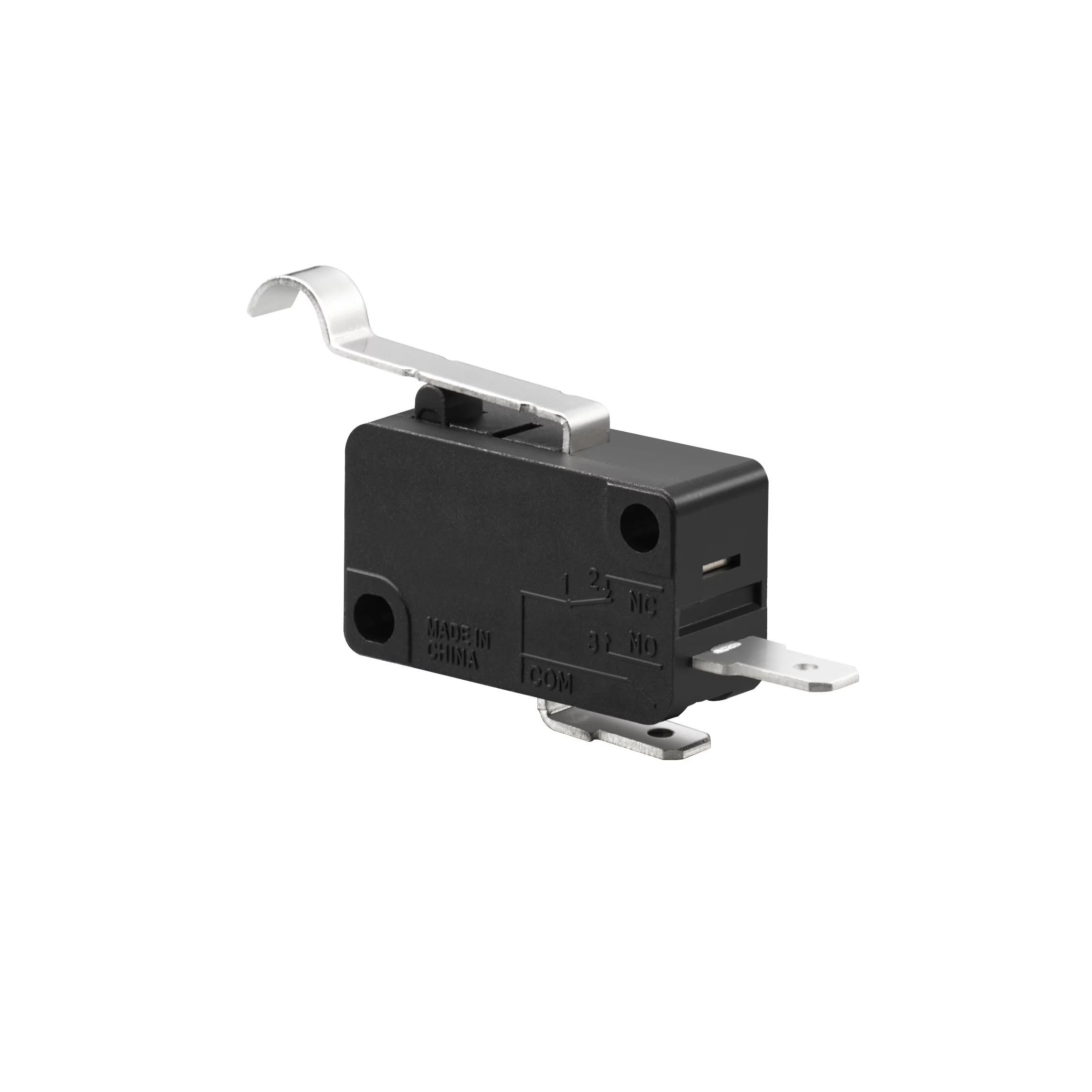

Micro Switch Miniature Basic Switch V-164-3C6

Micro Switch V16

FEATURES AND BENEFITS

● Wide variation of best-selling microswitches with switching currents of 10 to 21 A.
● Can be used for interrupting current when doors are opened or closed.
● Available in two types of cases: thermoplastic resin and thermosetting resin.
● Indium contact models available for DC load

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
21A 250V AC

16A 125V AC

15A 30V DC

10A 30V DC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 40
  • Operating Temperature:
T 105/55
  • Contact Resistance:
≦ 50mΩ

Understanding Micro Switches in Vacuum Cleaners

A vacuum cleaner’s performance and efficiency significantly depend on the quality of its internal components. One such essential component is the micro switch, a sensitive and reliable device that responds to small changes in the surrounding environment by opening or closing an electrical circuit. In a vacuum cleaner, this switch plays an integral role in controlling various operations seamlessly.

Micro switches in vacuum cleaners are primarily used for detecting changes in pressure levels or actuating specific functions when thresholds are met. These can be found in both basic household models as well as industrial-grade vacuum machines. They come into action when there is a dust bag full indication, or when there is any blockage in the cleaning hose causing a pressure build-up inside the machine. The micro switches respond to these pressure changes instantaneously and either turn off the machine for safety purposes or alert the user.

These switches are designed with precision to ensure robustness and longevity, allowing your vacuum cleaner to operate effectively over a long period. Their compact design means they do not take up much space within the appliance, but their impact on functionality is significant.

Key Features of Micro Switches in Vacuum Cleaners

  • Sensitive Response: Micro switches react quickly to minor changes, enabling immediate feedback and action.
  • Compact Size: Despite their small size, micro switches play an important role in operating various functionalities of a vacuum cleaner.
  • Robust Design: Built with durability and efficiency in mind, these switches can withstand repetitive use without compromising performance.
  • Safety Mechanisms: Micro switches serve as safety devices that prevent damage caused by blockages or full dust bags by automatically turning off the appliance.
  • Broad Application: From household cleaners to industrial-grade machines, micro switches play an integral part across different types of vacuum cleaners.
  • Longevity: Well-designed micro switches enhance the lifespan of your vacuum cleaner by ensuring efficient operation over extended periods.

The Impact of Micro Switches on Vacuum Cleaner Performance

The incorporation of micro switches into vacuum cleaners has greatly enhanced their overall functionality and reliability. These tiny devices provide effective solutions for common problems associated with pressure changes within these cleaning tools. By responding swiftly to variations caused by filled dust bags or blockages, they prevent potential damage to other vital parts of the machine.

Moreover, thanks to their robust construction and design integrity, micro switches offer considerable longevity contributing substantially towards low maintenance costs. Their broad application range further shows how versatile these components can be— working seamlessly regardless if it’s a domestic cleaning task at hand or heavy-duty industrial cleanup.

In conclusion, while often overlooked due to their minuscule size compared with other components’ magnitude within a vacuum cleaner; it’s clear that without high-quality microswitches embedded efficiently within its system – even our modern-day smart appliances would fail to deliver optimum performance consistently.



Read More

Product Features

Introducing the Micro Switch Miniature (Model V-164-3C6) by WEUP – a versatile and reliable solution for various industries. Whether you are an importer, distributor, manufacturer, brand, wholesaler, or retailer, this micro switch is sure to meet your needs. With its exceptional features and functions, it is an ideal choice for businesses looking to enhance their products or streamline their operations.

Key Features and Benefits:

  • Wide Variation of Best-Selling Microswitches: The Micro Switch Miniature offers a wide range of options with switching currents ranging from 10A to 21A. This versatility ensures that you can find the perfect fit for your specific requirements.
  • Suitable for Multiple Applications: This micro switch is designed to be used for interrupting current when doors are opened or closed. Its applications are diverse, making it suitable for small appliances, computers and peripherals, medical instrumentation, and more.
  • Two Types of Cases: The Micro Switch Miniature is available in two types of cases: thermoplastic resin and thermosetting resin. This allows you to choose the option that best suits your needs in terms of durability, heat resistance, and overall performance.
  • Indium Contact Models for DC Load: For applications requiring DC load, the Micro Switch Miniature offers indium contact models. These models ensure reliable performance and efficient operation in demanding environments.

Enhancing Vacuum Cleaner Performance:

One specific application where the Micro Switch Miniature excels is in vacuum cleaners. As an essential component, the micro switch plays a crucial role in detecting pressure changes and actuating specific functions. In vacuum cleaners, these switches respond to pressure variations caused by factors such as a full dust bag or blockages in the cleaning hose.

  • Sensitive Response: The Micro Switch Miniature reacts quickly to even minor changes in pressure levels, providing immediate feedback and enabling seamless operation of various functionalities within the vacuum cleaner.
  • Compact Size: Despite its small size, this micro switch plays a vital role in optimizing the performance of vacuum cleaners. Its compact design ensures that it fits seamlessly into the appliance without compromising functionality or taking up excessive space.
  • Robust Design: Built with durability and efficiency in mind, the Micro Switch Miniature is designed to withstand repetitive use without compromising its performance. This ensures that your vacuum cleaner operates effectively over an extended period, reducing maintenance costs.
  • Safety Mechanisms: The micro switch serves as a safety device within vacuum cleaners. It prevents damage caused by blockages or full dust bags by automatically turning off the appliance when necessary. This feature protects both the machine and the user from potential hazards.
  • Broad Application Range: The Micro Switch Miniature is suitable for various types of vacuum cleaners, from basic household models to heavy-duty industrial-grade machines. Its versatility ensures that it can seamlessly integrate into different systems, enhancing their overall functionality.
  • Longevity: By incorporating high-quality micro switches like the Micro Switch Miniature into vacuum cleaners, the lifespan of these appliances is significantly extended. With efficient operation over extended periods, you can rely on your vacuum cleaner to deliver optimum performance consistently.

Technical Specifications:

  • Contact Rating: The Micro Switch Miniature offers a contact rating of 21A at 250V AC, 16A at 125V AC, 15A at 30V DC, and 10A at 30V DC. These ratings ensure reliable and efficient performance in various electrical applications.
  • Electrical Life: With a minimum electrical life of 50,000 cycles, this micro switch is built to last. Its robust construction ensures that it can withstand frequent use without compromising its performance.
  • Insulation Resistance: The Micro Switch Miniature boasts insulation resistance of at least 100 MΩ, ensuring safe and reliable operation.
  • Degree of Protection: With an IP40 rating for degree of protection, this micro switch provides adequate protection against solid objects larger than 1mm in diameter.
  • Operating Temperature: The Micro Switch Miniature is designed to operate in temperatures ranging from -25°C to 105°C (heat resistive: -25°C to 150°C), making it suitable for various environments.

Why Choose WEUP’s Micro Switch Miniature?

WEUP is a trusted brand known for its commitment to quality and reliability. When you choose the Micro Switch Miniature from WEUP, you benefit from:

  • High-Quality Manufacturing: Manufactured by China manufacturers with extensive experience and expertise in producing micro switches, you can trust in the quality and performance of this product.
  • Reliable Supplier Network: WEUP works closely with a vast network of suppliers and distributors. By choosing this micro switch, you gain access to a reliable supply chain that ensures timely delivery of products.
  • Competitive Pricing: With WEUP’s direct-to-consumer approach, you can enjoy competitive pricing without compromising on quality. This makes the Micro Switch Miniature an attractive option for businesses looking for cost-effective solutions.
  • Exceptional Customer Support: WEUP values customer satisfaction and provides exceptional customer support at every stage of your purchase journey. From pre-sales inquiries to after-sales support, their team is dedicated to ensuring your needs are met.

In conclusion, the Micro Switch Miniature (Model V-164-3C6) by WEUP is a reliable and versatile solution for B2B buyers such as importers, distributors, manufacturers, brands, wholesalers, and retailers. With its wide variation of best-selling micro switches, suitability for multiple applications, robust design, safety mechanisms, and longevity, this micro switch offers exceptional value. Incorporating this micro switch into vacuum cleaners enhances their performance and reliability, contributing to a seamless cleaning experience. Trust in WEUP’s commitment to quality and reliability when choosing the Micro Switch Miniature for your business needs.

For more information on how to purchase the Micro Switch Miniature or to explore other products from WEUP’s comprehensive range, please visit their website or contact their sales team today.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

Micro Switch Miniature Basic Switch V-164-3C6

RatingsActuatorMaximum Operating Force (OF)Contact FormTerminalsHeat resistance
21:21 A at 250 VACNone: Pin plunger Micro Switch Miniature Basic Switch V-164-3C6
6: 3.92 N {400 gf}
1: SPDT Micro Switch Miniature Basic Switch V-164-3C6
A : Solder terminals
None : Standard (80°C)
16:16A at 250 VAC1 : Short hinge lever Micro Switch Miniature Basic Switch V-164-3C6
5: 1.96 N {200 gf}
2: SPST-NC Micro Switch Miniature Basic Switch V-164-3C6
C2 : Quick-connect terminals (#187)
-T : Heat-resistive (150°C)
15:15 A at 250 VAC2 : Hinge lever Micro Switch Miniature Basic Switch V-164-3C6
4: 0.98 N {100 gf}
3: SPST-NO Micro Switch Miniature Basic Switch V-164-3C6
C : Quick-connect terminals (#250)
10:10 A at 250 VAC3 : Long hinge lever Micro Switch Miniature Basic Switch V-164-3C6
Note: These values are for the pin plunger models.
4 : Simulated roller lever Micro Switch Miniature Basic Switch V-164-3C6
5 : Short hinge roller lever Micro Switch Miniature Basic Switch V-164-3C6
6 : Hinge roller lever Micro Switch Miniature Basic Switch V-164-3C6

Micro Switch Miniature Basic Switch V-164-3C6

Micro Switch Miniature Basic Switch V-164-3C6

ActuatorTerminalsContact formMaximum operating force (OF)21A16A
Pin plunger Micro Switch Miniature Basic Switch V-164-3C6Solder terminals (A)SPDT3.92NV-16-1A6
SPST-NCV-16-2A6
SPST-NOV-16-3A6
SPDT1.96NV-16-1A5
SPST-NCV-16-2A5
SPST-NOV-16-3A5
SPDT0.98N
SPST-NC
SPST-NO
Quick-connect terminals (#187) (C2)SPDT3.92NV-16-1C26
SPST-NCV-16-2C26
SPST-NOV-16-3C26
SPDT1.96NV-16-1C25
SPST-NCV-16-2C25
SPST-NOV-16-3C25
SPDT0.98N
SPST-NC
SPST-NO
Quick-connect terminals (#250) (C)SPDT3.92NV-21-1C6V-16-1C6
SPST-NCV-21-2C6V-16-2C6
SPST-NOV-21-3C6V-16-3C6
SPDT1.96NV-16-1C5
SPST-NCV-16-2C5
SPST-NOV-16-3C5
SPDT0.98N
SPST-NC
SPST-NO
Item                                              ModelV-10V-15V-16V-21V-21(IN)
Permissible operating speed0.1mm to 1 m/s max. (pin plunger models)
Permissible operating frequencyMechanical600 operations/min max. (pin plunger models)
Electrical60 operations/min
Insulation resistance100MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)15mΩ max.
Dielectric strength  *1Between terminals of
the same polarity
AC1,000V  50/60Hz  1min
Between current-carrying metal parts
and ground
AC1,500V  50/60Hz
1min
AC1,500V  50/60Hz
1min
AC2,000V  50/60Hz  1min
Between each terminal and non-current-
carrying metal parts
AC1,500V  50/60Hz
1min
AC1,500V  50/60Hz
1min
AC2,000V  50/60Hz  1min
Vibration
resistance  *2
Malfunction10 to 55 Hz, 1.5-mm double amplitude
Shock resistance  *2Durability1,000 m/s2  {approx. 100 G} max.
Malfunction200 m/s2
{approx. 20G} max.
300 m/s2 {approx. 30 G} max.
Durability  *3Mechanical50,000,000 operations min. (60 operations/min)
Electrical300,000 operations min.
(30 operations/min)
Heat resistive: 50,000 operations min
(30 operations/min)
100,000 operations min.
(30 operations/min)
Heat resistive: 20,000 operations min
(30 operations/min)
100,000 operations min.
(30 operations/min)
Degree of protectionIEC IP40
Degree of protection against electric shockClass I
Proof tracking index (PTI)175
Ambient operating temperature-25 to 105C
(Heat resistive: -25 to 150C)
-25 to 105C-25 to 80C
-25 to 105C (V-21 series: -25 to 80C) (Heat resistive: -25 to 150C) at ambient humidity of 60% max.
(with no icing or condensation)
Ambient operating humidity85% max. (for 5 to 35C)
WeightApprox. 6.2g (pin plunger models)
