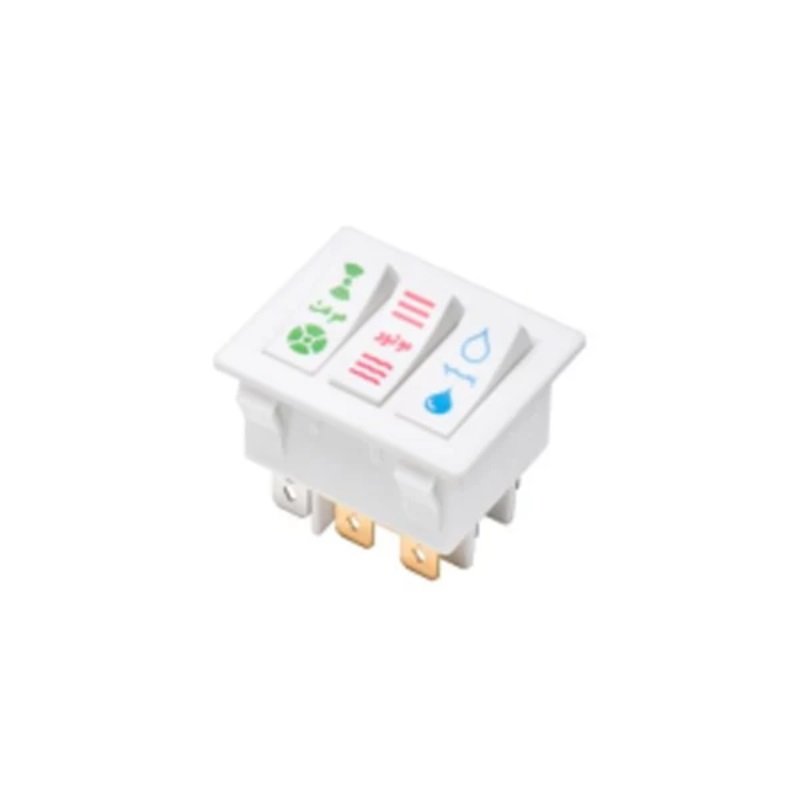

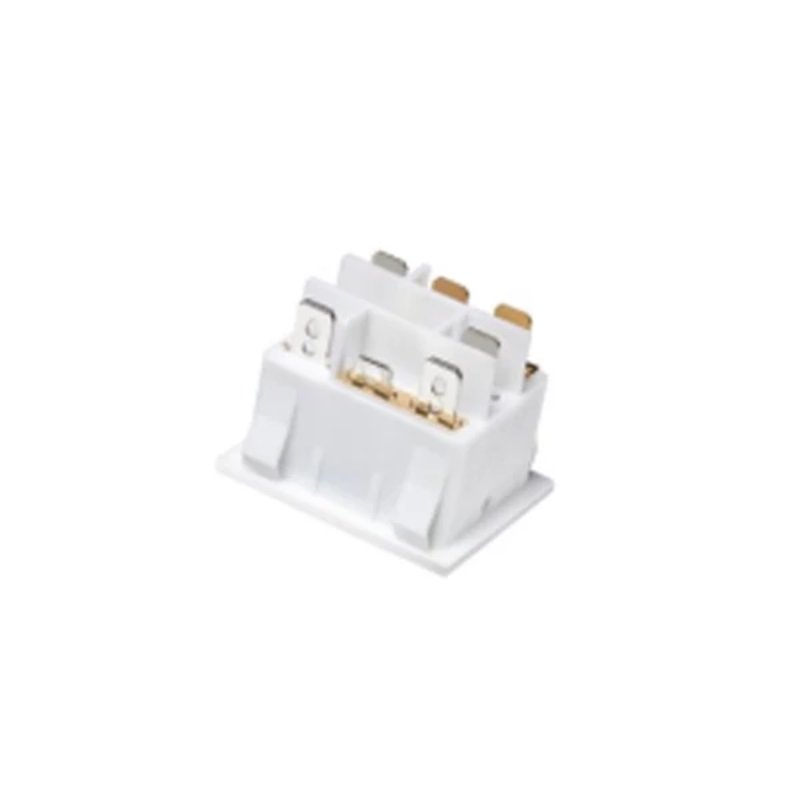

KCD3-303W8P 3PST TRIPLE ROCKER SWITCH

KCD3-303W8P

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
16A 250V AC

20A 125V AC

16(10)A 250V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 105/55
  • Contact Resistance:
≦ 50mΩ

Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing the WEUP Double Rocker Switch

Are you a B2B buyer looking for a reliable and efficient double rocker switch? Look no further than the WEUP Double Rocker Switch. With its exceptional features and high-quality construction, this switch is a must-have for importers, distributors, manufacturers, brands, wholesalers, and retailers in need of a top-notch electrical component. Let’s explore why the WEUP Double Rocker Switch stands out from the competition:

  1. Versatile Functionality: The WEUP Double Rocker Switch offers multiple functions, including a three-position ON-OFF-ON configuration. This versatility makes it suitable for a wide range of applications in small appliances, computers and peripherals, and medical instrumentation.
  2. Durable Construction: The double rocker switch is built to last. It boasts an electrical life of over 50,000 cycles, ensuring long-term reliability and performance. With a contact rating of 16A 250V AC and 20A 125V AC, this switch can handle demanding electrical loads with ease.
  3. Easy Installation: The WEUP Double Rocker Switch features quick connect or blade terminals, allowing for hassle-free installation. Whether you are a manufacturer assembling products or a distributor providing replacement parts, this switch’s ease of use will save you time and effort.
  4. Enhanced Safety: Safety is paramount when it comes to electrical components. The WEUP Double Rocker Switch is designed with a degree of protection rated at IP55, making it resistant to dust and splashes. This ensures reliable operation even in challenging environments.
  5. Customizable Options: WEUP understands that different applications require specific features and designs. With their own D&R development capabilities, they can easily create custom models according to your specific requirements. From different shapes and sizes to recessed switch guards and sub-miniature sizes for space-saving installations, WEUP can tailor the rocker switch to suit your needs.
  6. Supportive Services: WEUP goes the extra mile to support their customers. They offer custom wire harness and actuator marking requests, allowing you to personalize the switches for your qualifying designs. This level of customization ensures that the switches integrate seamlessly into your products or projects.
  7. Reliable Supplier Network: As one of the leading China manufacturers, WEUP has established a robust network of suppliers and vendors. This means that you can rely on them to consistently deliver high-quality products. Whether you require a small quantity for a specific project or large volumes for distribution, WEUP can meet your demands.

Applications of the WEUP Double Rocker Switch

The WEUP Double Rocker Switch finds its applications in various industries and sectors:

  • Power Supply Switches for Consumer Electronics: From televisions to gaming consoles, the double rocker switch is ideal for controlling the power supply in consumer electronic devices.
  • PC Peripherals: Keyboards, mice, and other computer peripherals can benefit from the functionality and reliability of the WEUP Double Rocker Switch.
  • Office/Commercial Equipment: Printers, copiers, monitors, and power outlet strips all require dependable switches to ensure smooth operation.
  • Air Purifiers and Dehumidifiers: These essential appliances rely on switches to control their functions effectively. The WEUP Double Rocker Switch provides the perfect solution.
  • Measuring Devices: Precision instruments such as multimeters, oscilloscopes, and gauges require switches that can handle high electrical loads without compromising accuracy.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

KCD3-303W8P 3PST TRIPLE ROCKER SWITCH

KCD3303K8PA1KC
Switch product typeBase TypeBase ColorCircuit DiagramTerminalMarkingButton ColorActuator
Black KCD3-303W8P 3PST TRIPLE ROCKER SWITCHON-OFF KCD3-303W8P 3PST TRIPLE ROCKER SWITCH6.3*0.8 KCD3-303W8P 3PST TRIPLE ROCKER SWITCH  KCD3-303W8P 3PST TRIPLE ROCKER SWITCHBlack KCD3-303W8P 3PST TRIPLE ROCKER SWITCH  KCD3-303W8P 3PST TRIPLE ROCKER SWITCH
Blue KCD3-303W8P 3PST TRIPLE ROCKER SWITCHON-OFF KCD3-303W8P 3PST TRIPLE ROCKER SWITCH6.3*0.8 KCD3-303W8P 3PST TRIPLE ROCKER SWITCH  KCD3-303W8P 3PST TRIPLE ROCKER SWITCHBlue KCD3-303W8P 3PST TRIPLE ROCKER SWITCH  KCD3-303W8P 3PST TRIPLE ROCKER SWITCH
Green KCD3-303W8P 3PST TRIPLE ROCKER SWITCHON-OFF KCD3-303W8P 3PST TRIPLE ROCKER SWITCH6.3*0.8 KCD3-303W8P 3PST TRIPLE ROCKER SWITCH  KCD3-303W8P 3PST TRIPLE ROCKER SWITCHGreen KCD3-303W8P 3PST TRIPLE ROCKER SWITCH  KCD3-303W8P 3PST TRIPLE ROCKER SWITCH
Orange KCD3-303W8P 3PST TRIPLE ROCKER SWITCHON-OFF-ON KCD3-303W8P 3PST TRIPLE ROCKER SWITCH6.3*0.8 KCD3-303W8P 3PST TRIPLE ROCKER SWITCH  KCD3-303W8P 3PST TRIPLE ROCKER SWITCHOrange KCD3-303W8P 3PST TRIPLE ROCKER SWITCH  KCD3-303W8P 3PST TRIPLE ROCKER SWITCH
Red KCD3-303W8P 3PST TRIPLE ROCKER SWITCHON-OFF-(ON) KCD3-303W8P 3PST TRIPLE ROCKER SWITCH6.3*0.8 KCD3-303W8P 3PST TRIPLE ROCKER SWITCH  KCD3-303W8P 3PST TRIPLE ROCKER SWITCHRed KCD3-303W8P 3PST TRIPLE ROCKER SWITCH
White KCD3-303W8P 3PST TRIPLE ROCKER SWITCH(ON)-OFF-(ON) KCD3-303W8P 3PST TRIPLE ROCKER SWITCH  KCD3-303W8P 3PST TRIPLE ROCKER SWITCHWhite KCD3-303W8P 3PST TRIPLE ROCKER SWITCH
Yellow KCD3-303W8P 3PST TRIPLE ROCKER SWITCH  KCD3-303W8P 3PST TRIPLE ROCKER SWITCHYellow KCD3-303W8P 3PST TRIPLE ROCKER SWITCH

Characteristics

Permissible operating speed1 to 500 mm/s
Permissible operating frequencyMechanical30 operations / min max.
Electrical20 operations / min max.
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)20 mΩ max. (6 to 8 VDC, 1 A, voltage drop method)
Dielectric strengthBetween terminals of the same polarity2.000 VAG, 50/60 Hz, for 1 min
Between terminals of the different polarity2.000 VAG, 50/60 Hz, for 1 min (See Note *)
Between charged metal parts and the ground terminal4.000 VAG, 50/60 Hz, for 1 min
Vibration resistanceMalfunction10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceMalfunction300 m/s2 max.
DurabilityMechanical40,000 operations min.
Electrical20,000 operations min.
WeightNon-illuminated: Approx 15g. Illuminated: Approx 16g.
Inrush current100A max. (100 ms max.)
Ambient operating temperature– 25 to +50 C (with no icing or condensation)
Ambient operating humidity45 to 85 %RH
Degree of protectionIEC IP40
Electric shock protection classClass II
PTI (proof tracking index)175
Pollution degree2
