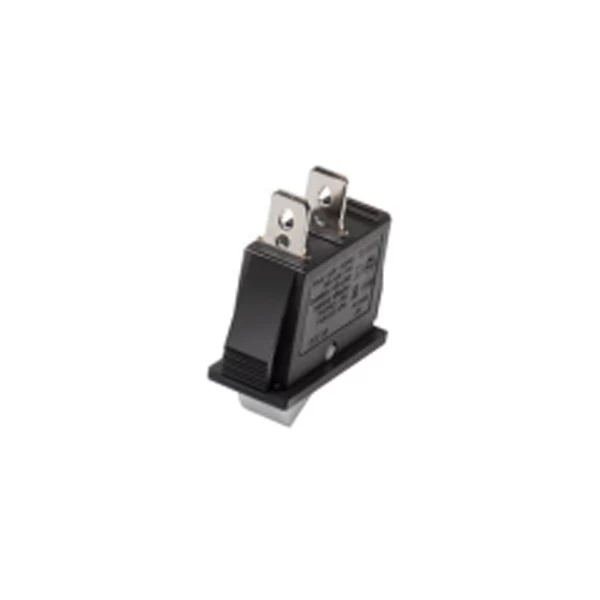

KCD3-101WD WHITE ROCKER SWITCH

KCD3-101WD

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
16A 250V AC 20(12)A 125V AC

20A 125V AC 20GP 125V AC

16(10)A 250V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 105/55
  • Contact Resistance:
≦ 50mΩ

Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing the WEUP Medium Single Pole Rocker Switch

Are you in the market for a reliable and versatile rocker switch? Look no further than the WEUP Medium Single Pole Rocker Switch. This exceptional product is designed to meet the needs of B2B buyers like importers, distributors, manufacturers, brands, wholesalers, and retailers. With its impressive features and functions, it is sure to impress even the most discerning customers in the industry.

High-Quality Construction and Durability

The WEUP Medium Single Pole Rocker Switch is manufactured by China manufacturers to the highest standards. It is built to withstand the demands of various applications and ensures long-lasting performance. The switch is constructed with precision and attention to detail, guaranteeing its durability and reliability in any setting.

Wide Range of Applications

One of the key advantages of the WEUP Medium Single Pole Rocker Switch is its versatility. This switch is suitable for a diverse range of applications, making it an ideal choice for different industries. Whether you need it for small appliances, computers and peripherals, or medical instrumentation, this rocker switch is up to the task. Its adaptability makes it a valuable asset for businesses in various sectors.

Flexible Functionality

The Medium Single Pole Rocker Switch offers multiple functions to accommodate various requirements. It comes in different configurations, including two-position On/Off, three-position, momentary, maintained, and more. This flexibility allows you to select the right configuration for your specific needs, ensuring optimal performance and convenience.

Easy Installation

The WEUP Medium Single Pole Rocker Switch features quick connect or blade terminals, enabling easy installation. This hassle-free setup saves you time and effort, allowing for a smooth integration into your products or equipment. Whether you are a manufacturer or a distributor, the user-friendly design of this switch ensures a seamless installation process.

Enhanced Safety Features

Safety is paramount when it comes to electrical components. The WEUP Medium Single Pole Rocker Switch is designed with safety in mind. It has imprinted markings that provide clear visibility, allowing users to easily identify the switch’s position. Additionally, it has an IP54 splash-proof rubber boot option, ensuring protection against water splashes and increasing its durability.

Customization Options

WEUP understands that every business has unique requirements. That’s why they offer customization options for their rocker switches. With their own D&R development capabilities, WEUP can create a new model according to your specific requests. They offer options like different shapes, sizes, construction, frames, recessed switch guards, and sub-miniature sizes. This level of customization ensures that the rocker switch perfectly fits your product or equipment.

Reliable Performance

The WEUP Medium Single Pole Rocker Switch delivers reliable performance with every use. It boasts a contact rating of 16A 250V AC and electrical life of over 50,000 cycles. Its insulation resistance exceeds 100 MΩ, providing excellent protection against electrical issues. With a contact resistance of less than 50mΩ and a degree of protection rated at IP55, this switch ensures optimal conductivity and safeguards against environmental factors.

Exceptional Quality Assurance

WEUP is committed to delivering products that meet the highest quality standards. The Medium Single Pole Rocker Switch undergoes rigorous testing and inspections to ensure its reliability and performance. It has been tested for vibration resistance, shock resistance, and durability. The switch’s weight is carefully designed for optimal usage, with non-illuminated models weighing approximately 15g and illuminated models weighing around 16g.

Certifications and Compliance

Rest assured that the WEUP Medium Single Pole Rocker Switch meets industry standards and regulations. It carries certifications such as CQC, CCC, CE, RoHS, ENEC, PAHS, VDE, TUV, and UL. These certifications signify that the switch has undergone thorough testing and complies with international standards for safety and performance.

Competitive Advantage

By choosing the WEUP Medium Single Pole Rocker Switch, you gain a competitive advantage in the market. With its exceptional features, customization options, and wide range of applications, this product sets your offerings apart from competitors. Its reliability and durability give your customers peace of mind, knowing they are investing in a high-quality product.

Conclusion

In conclusion, the WEUP Medium Single Pole Rocker Switch is a standout choice for B2B buyers seeking a top-notch electrical component. Its high-quality construction, wide range of applications, flexible functionality, easy installation, enhanced safety features, customization options, reliable performance, exceptional quality assurance, certifications, and competitive advantage make it an unbeatable option.

When searching for reliable China manufacturers, manufacturer suppliers, factory wholesale vendors for rocker switches, look no further than WEUP. With their commitment to excellence and customer satisfaction, they are the go-to provider for premium electrical components. Upgrade your products or equipment with the WEUP Medium Single Pole Rocker Switch today and experience the difference it makes in performance and reliability.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

KCD3-101WD WHITE ROCKER SWITCH







KCD3101K2PA1KC
Switch product typeBase TypeBase ColorCircuit DiagramTerminalMarkingButton ColorActuator
Black KCD3-101WD WHITE ROCKER SWITCHON-OFF KCD3-101WD WHITE ROCKER SWITCH6.3*0.8 KCD3-101WD WHITE ROCKER SWITCH  KCD3-101WD WHITE ROCKER SWITCHBlack KCD3-101WD WHITE ROCKER SWITCH  KCD3-101WD WHITE ROCKER SWITCH
Blue KCD3-101WD WHITE ROCKER SWITCHON-OFF KCD3-101WD WHITE ROCKER SWITCH6.3*0.8 KCD3-101WD WHITE ROCKER SWITCH  KCD3-101WD WHITE ROCKER SWITCHBlue KCD3-101WD WHITE ROCKER SWITCH  KCD3-101WD WHITE ROCKER SWITCH
Green KCD3-101WD WHITE ROCKER SWITCHON-OFF KCD3-101WD WHITE ROCKER SWITCH6.3*0.8 KCD3-101WD WHITE ROCKER SWITCH  KCD3-101WD WHITE ROCKER SWITCHGreen KCD3-101WD WHITE ROCKER SWITCH  KCD3-101WD WHITE ROCKER SWITCH
Orange KCD3-101WD WHITE ROCKER SWITCHON-OFF-ON KCD3-101WD WHITE ROCKER SWITCH6.3*0.8 KCD3-101WD WHITE ROCKER SWITCH  KCD3-101WD WHITE ROCKER SWITCHOrange KCD3-101WD WHITE ROCKER SWITCH  KCD3-101WD WHITE ROCKER SWITCH
Red KCD3-101WD WHITE ROCKER SWITCHON-OFF-(ON) KCD3-101WD WHITE ROCKER SWITCH6.3*0.8 KCD3-101WD WHITE ROCKER SWITCH  KCD3-101WD WHITE ROCKER SWITCHRed KCD3-101WD WHITE ROCKER SWITCH
White KCD3-101WD WHITE ROCKER SWITCH(ON)-OFF-(ON) KCD3-101WD WHITE ROCKER SWITCH  KCD3-101WD WHITE ROCKER SWITCHWhite KCD3-101WD WHITE ROCKER SWITCH
Yellow KCD3-101WD WHITE ROCKER SWITCH  KCD3-101WD WHITE ROCKER SWITCHYellow KCD3-101WD WHITE ROCKER SWITCH

Characteristics

Permissible operating speed1 to 500 mm/s
Permissible operating frequencyMechanical30 operations / min max.
Electrical20 operations / min max.
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)20 mΩ max. (6 to 8 VDC, 1 A, voltage drop method)
Dielectric strengthBetween terminals of the same polarity2.000 VAG, 50/60 Hz, for 1 min
Between terminals of the different polarity2.000 VAG, 50/60 Hz, for 1 min (See Note *)
Between charged metal parts and the ground terminal4.000 VAG, 50/60 Hz, for 1 min
Vibration resistanceMalfunction10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceMalfunction300 m/s2 max.
DurabilityMechanical40,000 operations min.
Electrical20,000 operations min.
WeightNon-illuminated: Approx 15g. Illuminated: Approx 16g.
Inrush current100A max. (100 ms max.)
Ambient operating temperature– 25 to +50 C (with no icing or condensation)
Ambient operating humidity45 to 85 %RH
Degree of protectionIEC IP40
Electric shock protection classClass II
PTI (proof tracking index)175
Pollution degree2

KCD3-101WD WHITE ROCKER SWITCH

Applications

Rocker Switch Applications

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.

MonitorsCopiersPrinters
KCD3-101WD WHITE ROCKER SWITCHKCD3-101WD WHITE ROCKER SWITCHKCD3-101WD WHITE ROCKER SWITCH
Power SuppliesMeasuring DevicesPower Outlet Strips
KCD3-101WD WHITE ROCKER SWITCHKCD3-101WD WHITE ROCKER SWITCHKCD3-101WD WHITE ROCKER SWITCH
