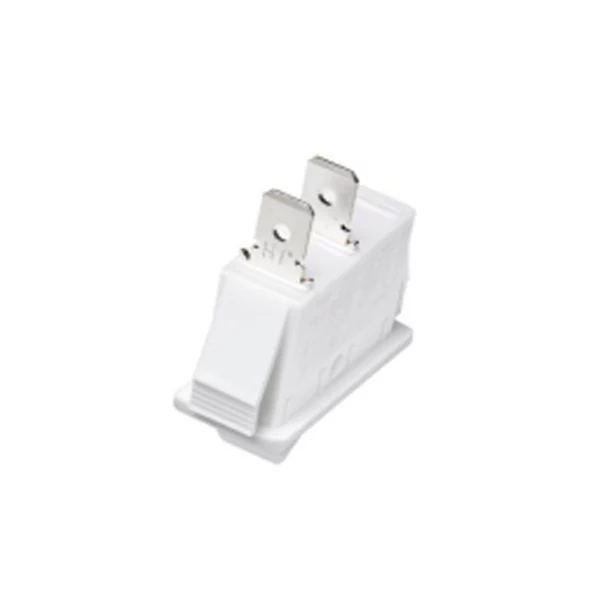

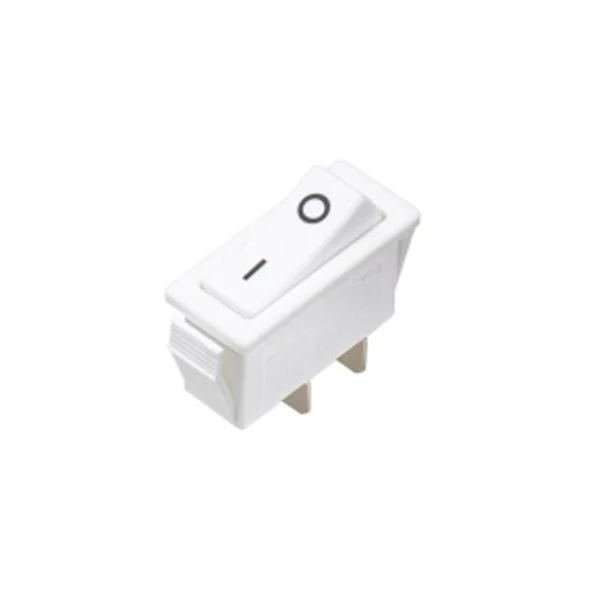

KCD3-101W2PA WHITE ROCKER SWITCH

KCD3-101W2PA

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
16A 250V AC 20(12)A 125V AC

20A 125V AC 20GP 125V AC

16(10)A 250V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 105/55
  • Contact Resistance:
≦ 50mΩ

Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing the WEUP Medium Single Pole Rocker Switch (Model: KCD3-101W2PA):

Are you a B2B buyer looking for a reliable and versatile rocker switch to enhance your product offerings? Look no further than the WEUP Medium Single Pole Rocker Switch. With its exceptional features and functions, this switch is the perfect choice for importers, distributors, manufacturers, brands, wholesalers, and retailers.

Features and Benefits:

  • Pilot Light or Illumination: The WEUP Medium Single Pole Rocker Switch is designed with a pilot light or illumination feature, allowing for easy identification of the switch status. This feature is especially useful in low-light environments or applications where visual indication is required.
  • Imprinted Markings: This rocker switch comes with clear and legible imprinted markings for easy identification and operation. The markings ensure that users can quickly and accurately select the desired function without any confusion.
  • IP54 Splash Proof Rubber Boot Option: The WEUP Medium Single Pole Rocker Switch offers an optional IP54 splash-proof rubber boot. This protective feature ensures that the switch remains resistant to water splashes and dust, making it suitable for various environments, including outdoor or industrial applications.
  • Quick Connect or Blade Terminals: With its quick connect or blade terminals, this rocker switch provides effortless installation and connection. Whether you prefer quick connect or blade terminals, the WEUP Medium Single Pole Rocker Switch offers flexibility to meet your specific requirements.

Specifications:

  • Contact Rating: The WEUP Medium Single Pole Rocker Switch boasts a contact rating of 16A 250V AC and 20(12)A 125V AC. This high contact rating ensures reliable and efficient performance, making it suitable for a wide range of applications.
  • Electrical Life: With a remarkable electrical life of over 50,000 cycles, this rocker switch offers durability and longevity. It can withstand repeated use without compromising its functionality, providing peace of mind to both manufacturers and end-users.
  • Insulation Resistance: The switch’s insulation resistance exceeds 100 MΩ, ensuring optimal safety and preventing electrical leakage. This feature is vital in applications where safety is a top priority.
  • Degree of Protection: The WEUP Medium Single Pole Rocker Switch is rated IP55, providing superior protection against dust and water ingress. This makes it a reliable choice for demanding environments where protection against environmental factors is essential.
  • Operating Temperature: Designed to withstand various temperature conditions, this rocker switch has an operating temperature range of T 105/55. It can endure high temperatures without compromising its performance, ensuring reliability in challenging operating environments.
  • Contact Resistance: With contact resistance less than 50mΩ, this rocker switch guarantees excellent conductivity and minimal energy loss. It ensures efficient electrical transfer, contributing to the overall effectiveness of the device it powers.

TYPICAL APPLICATIONS:

The versatility of the WEUP Medium Single Pole Rocker Switch makes it suitable for a wide range of applications. Some typical uses include:

  • Small Appliances: From kitchen appliances to household gadgets, this rocker switch can be easily incorporated into various small appliances for seamless operation.
  • Computers and Peripherals: Whether it’s a desktop computer or peripheral devices like printers or scanners, this switch’s functionality ensures smooth on/off control for reliable performance.
  • Medical Instrumentation: The WEUP Medium Single Pole Rocker Switch can be utilized in medical instrumentation such as diagnostic equipment or patient monitoring devices. Its high contact rating and durability make it ideal for critical healthcare applications.

Customizing Options:

WEUP understands that every customer has unique requirements. As one of the leading China manufacturers in the industry, WEUP offers customization options for the Medium Single Pole Rocker Switch. With their own dedicated D&R development team, WEUP can create a new model according to specific customer requests. Customization options include:

  • Shape and Size: WEUP can tailor the rocker switch’s shape and size to fit your specific application needs.
  • Construction: Choose from different construction options to suit your requirements, ensuring compatibility with your product design.
  • Frames and Recessed Switch Guards: Add frames or recessed switch guards to prevent accidental actuation, providing an added layer of safety.
  • Splash-proof Rubber Boots: Opt for splash-proof rubber boots to enhance the switch’s protection against water splashes and dust.
  • Sub-miniature Sizes: If space-saving is a concern, WEUP offers sub-miniature sizes for a small footprint without compromising functionality.

In addition to customization options, WEUP also supports custom wire harness and actuator marking requests. This level of customization ensures that the Medium Single Pole Rocker Switch meets your specific requirements and aligns perfectly with your brand identity.

Applications:

The versatility of rocker switches makes them indispensable in various industries. Here are some common applications where the WEUP Medium Single Pole Rocker Switch excels:

  1. Power Supply Switches for Consumer Electronics: From televisions to gaming consoles, this switch ensures seamless power control for consumer electronic products.
  2. PC Peripherals: Keyboards, mice, and other computer accessories benefit from the reliable on/off function provided by this rocker switch.
  3. Office/Commercial Equipment: Printers, copiers, and other office equipment rely on rocker switches for convenient power control.
  4. Air Purifiers and Dehumidifiers: These essential home appliances require reliable switches for efficient operation. The WEUP Medium Single Pole Rocker Switch delivers just that.
  5. Measuring Devices: From multimeters to oscilloscopes, measuring devices often incorporate rocker switches for easy operation and control.
  6. Power Outlet Strips: The WEUP Medium Single Pole Rocker Switch is an excellent choice for power outlet strips used in homes or offices. Its durability and reliability ensure long-lasting performance.

In conclusion, the WEUP Medium Single Pole Rocker Switch (Model: KCD3-101W2PA) stands out as an exceptional choice for B2B buyers in need of reliable and versatile switches. Its impressive features, such as pilot light or illumination, imprinted markings, IP54 splash-proof rubber boot option, and quick connect or blade terminals, make it a top contender in the market. With customization options available to meet specific requirements, supported by WEUP’s expertise as a leading China manufacturer, this rocker switch is a valuable addition to any product lineup.

Choose the WEUP Medium Single Pole Rocker Switch today and experience its effectiveness in enhancing your products’ functionality and reliability. Contact us now to explore how this exceptional switch can benefit your business!

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

KCD3-101W2PA WHITE ROCKER SWITCH

KCD3103K2PA1KC
Switch product typeBase TypeBase ColorCircuit DiagramTerminalMarkingButton ColorActuator
Black KCD3-101W2PA WHITE ROCKER SWITCHON-OFF KCD3-101W2PA WHITE ROCKER SWITCH6.3*0.8 KCD3-101W2PA WHITE ROCKER SWITCH  KCD3-101W2PA WHITE ROCKER SWITCHBlack KCD3-101W2PA WHITE ROCKER SWITCH  KCD3-101W2PA WHITE ROCKER SWITCH
Blue KCD3-101W2PA WHITE ROCKER SWITCHON-OFF KCD3-101W2PA WHITE ROCKER SWITCH6.3*0.8 KCD3-101W2PA WHITE ROCKER SWITCH  KCD3-101W2PA WHITE ROCKER SWITCHBlue KCD3-101W2PA WHITE ROCKER SWITCH  KCD3-101W2PA WHITE ROCKER SWITCH
Green KCD3-101W2PA WHITE ROCKER SWITCHON-OFF KCD3-101W2PA WHITE ROCKER SWITCH6.3*0.8 KCD3-101W2PA WHITE ROCKER SWITCH  KCD3-101W2PA WHITE ROCKER SWITCHGreen KCD3-101W2PA WHITE ROCKER SWITCH  KCD3-101W2PA WHITE ROCKER SWITCH
Orange KCD3-101W2PA WHITE ROCKER SWITCHON-OFF-ON KCD3-101W2PA WHITE ROCKER SWITCH6.3*0.8 KCD3-101W2PA WHITE ROCKER SWITCH  KCD3-101W2PA WHITE ROCKER SWITCHOrange KCD3-101W2PA WHITE ROCKER SWITCH  KCD3-101W2PA WHITE ROCKER SWITCH
Red KCD3-101W2PA WHITE ROCKER SWITCHON-OFF-(ON) KCD3-101W2PA WHITE ROCKER SWITCH6.3*0.8 KCD3-101W2PA WHITE ROCKER SWITCH  KCD3-101W2PA WHITE ROCKER SWITCHRed KCD3-101W2PA WHITE ROCKER SWITCH
White KCD3-101W2PA WHITE ROCKER SWITCH(ON)-OFF-(ON) KCD3-101W2PA WHITE ROCKER SWITCH  KCD3-101W2PA WHITE ROCKER SWITCHWhite KCD3-101W2PA WHITE ROCKER SWITCH
Yellow KCD3-101W2PA WHITE ROCKER SWITCH  KCD3-101W2PA WHITE ROCKER SWITCHYellow KCD3-101W2PA WHITE ROCKER SWITCH

Characteristics

Permissible operating speed1 to 500 mm/s
Permissible operating frequencyMechanical30 operations / min max.
Electrical20 operations / min max.
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)20 mΩ max. (6 to 8 VDC, 1 A, voltage drop method)
Dielectric strengthBetween terminals of the same polarity2.000 VAG, 50/60 Hz, for 1 min
Between terminals of the different polarity2.000 VAG, 50/60 Hz, for 1 min (See Note *)
Between charged metal parts and the ground terminal4.000 VAG, 50/60 Hz, for 1 min
Vibration resistanceMalfunction10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceMalfunction300 m/s2 max.
DurabilityMechanical40,000 operations min.
Electrical20,000 operations min.
WeightNon-illuminated: Approx 15g. Illuminated: Approx 16g.
Inrush current100A max. (100 ms max.)
Ambient operating temperature– 25 to +50 C (with no icing or condensation)
Ambient operating humidity45 to 85 %RH
Degree of protectionIEC IP40
Electric shock protection classClass II
PTI (proof tracking index)175
Pollution degree2

KCD3-101W2PA WHITE ROCKER SWITCH

Applications

Rocker Switch Applications

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.

MonitorsCopiersPrinters
KCD3-101W2PA WHITE ROCKER SWITCHKCD3-101W2PA WHITE ROCKER SWITCHKCD3-101W2PA WHITE ROCKER SWITCH
Power SuppliesMeasuring DevicesPower Outlet Strips
KCD3-101W2PA WHITE ROCKER SWITCHKCD3-101W2PA WHITE ROCKER SWITCHKCD3-101W2PA WHITE ROCKER SWITCH
