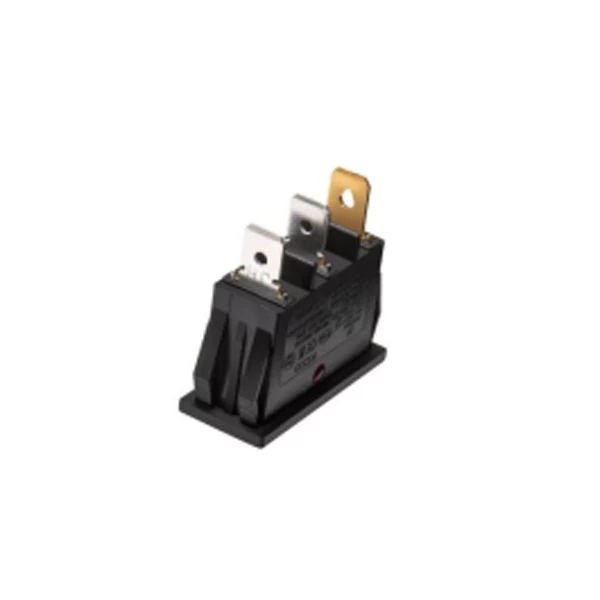

KCD3-101RNA LIGHT ILLUMINATED ROCKER SWITCH

KCD3-101RNA

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
16A 250V AC 20(12)A 125V AC

20A 125V AC 20GP 125V AC

16(10)A 250V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 105/55
  • Contact Resistance:
≦ 50mΩ

Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing the WEUP Medium Single Pole Rocker Switch

When it comes to controlling the on/off functions of home appliances, computers, medical instrumentation, and more, the WEUP Medium Single Pole Rocker Switch is the ideal choice. With its impressive features and exceptional performance, this rocker switch stands out among its competitors. In this compelling argument, we will highlight the product’s key features and explain why B2B buyers like importers, distributors, manufacturers, brands, wholesalers, and retailers should consider this switch for their needs.

Features and Benefits:

  1. Pilot Light or Illumination: The WEUP Medium Single Pole Rocker Switch offers the option of a pilot light or illumination. This feature enhances visibility, making it easier to locate and operate the switch even in low-light conditions. Whether it’s a small appliance, computer peripheral, or medical instrument, the illuminated markings ensure effortless operation and control.
  2. Imprinted Markings: The imprinted markings on this rocker switch provide clear indications of its functions. This feature eliminates any confusion and allows users to easily identify the switch’s position or mode of operation. The well-defined markings make it convenient for users to operate the switch with confidence.
  3. IP54 Splash Proof Rubber Boot Option: For applications that require protection against moisture or splashes, the WEUP Medium Single Pole Rocker Switch offers an IP54 splash-proof rubber boot option. This additional safeguard ensures the longevity and reliability of the switch, making it suitable for use in various environments and conditions.
  4. Quick Connect or Blade Terminals: The switch is designed with flexibility in mind, offering both quick connect and blade terminals. This versatility allows for easy installation and connection to different types of wire harnesses. Whether you prefer quick connect or blade terminals, this rocker switch accommodates your specific needs.

Specifications:

  • Contact Rating: 16A 250V AC 20(12)A 125V AC
  • Electrical Life: ≧ 50,000 Cycles
  • Insulation Resistance: ≧ 100 MΩ
  • Degree of Protection: IP55
  • Operating Temperature: T 105/55
  • Contact Resistance: ≦ 50mΩ

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

Customizing Rocker Switches:

WEUP understands that different applications may require unique specifications. With their own D&R development capabilities, they can easily create new models according to customers’ requests. Whether it’s customizing shapes, sizes, construction, or frames, WEUP can tailor the rocker switch to meet your specific requirements. Additionally, they offer recessed switch guards to prevent accidental actuation and splash-proof rubber boots for added protection. Their commitment to providing customized solutions makes WEUP the preferred choice among China manufacturers, suppliers, and vendors.

Effectiveness and Reliability:

The WEUP Medium Single Pole Rocker Switch offers unparalleled effectiveness and reliability in controlling on/off functions. With a contact rating of 16A 250V AC, this switch can handle high power loads while maintaining stable performance. Its electrical life of over 50,000 cycles ensures longevity and durability, making it a trusted choice for various applications.

Supporting Customer Needs:

WEUP goes above and beyond to support customer needs. They can provide custom wire harnesses and actuator markings to ensure the switch integrates seamlessly into your designs. By offering tailored solutions, WEUP demonstrates its commitment to meeting customer requirements and exceeding expectations.

Applications:

The versatility of the WEUP Medium Single Pole Rocker Switch makes it suitable for a wide range of applications. Importers, distributors, manufacturers, brands, wholesalers, and retailers can benefit from incorporating this switch into their products or offering it as a standalone component.

  • Power Supply Switches for Consumer Electronics: Whether it’s monitors, printers, or office/commercial equipment, this rocker switch ensures reliable power control.
  • Air Purifiers, Dehumidifiers, etc.: The WEUP Medium Single Pole Rocker Switch is perfect for controlling essential functions in air purifiers and dehumidifiers. Its robust design guarantees long-lasting performance in these demanding applications.
  • Measuring Devices: Accuracy and precision are crucial in measuring devices. This rocker switch provides dependable on/off control for measuring devices such as multimeters or oscilloscopes.

Conclusion:

In conclusion, the WEUP Medium Single Pole Rocker Switch offers a range of features and benefits that make it an excellent choice for B2B buyers like importers, distributors, manufacturers, brands, wholesalers, and retailers. Its pilot light or illumination, imprinted markings, IP54 splash-proof rubber boot option, and quick connect or blade terminals provide versatility and convenience for various applications. The switch’s effectiveness, reliability, and customization options make it an invaluable component for countless products. Trust WEUP as your preferred China manufacturer, supplier, and vendor for all your rocker switch needs.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

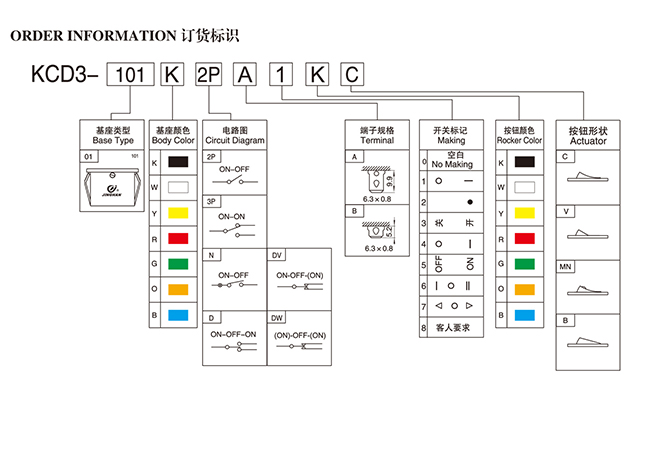

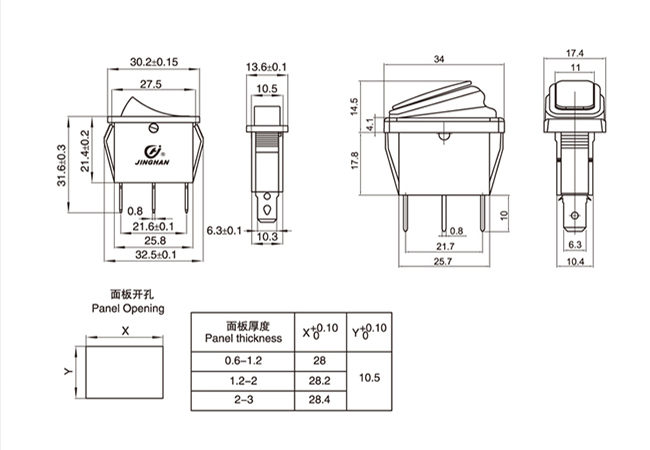

Technical Data

KCD3-101WD WHITE ROCKER SWITCH







KCD3101K2PA1KC
Switch product typeBase TypeBase ColorCircuit DiagramTerminalMarkingButton ColorActuator
Black KCD3-101WD WHITE ROCKER SWITCHON-OFF KCD3-101WD WHITE ROCKER SWITCH6.3*0.8 KCD3-101WD WHITE ROCKER SWITCH  KCD3-101WD WHITE ROCKER SWITCHBlack KCD3-101WD WHITE ROCKER SWITCH  KCD3-101WD WHITE ROCKER SWITCH
Blue KCD3-101WD WHITE ROCKER SWITCHON-OFF KCD3-101WD WHITE ROCKER SWITCH6.3*0.8 KCD3-101WD WHITE ROCKER SWITCH  KCD3-101WD WHITE ROCKER SWITCHBlue KCD3-101WD WHITE ROCKER SWITCH  KCD3-101WD WHITE ROCKER SWITCH
Green KCD3-101WD WHITE ROCKER SWITCHON-OFF KCD3-101WD WHITE ROCKER SWITCH6.3*0.8 KCD3-101WD WHITE ROCKER SWITCH  KCD3-101WD WHITE ROCKER SWITCHGreen KCD3-101WD WHITE ROCKER SWITCH  KCD3-101WD WHITE ROCKER SWITCH
Orange KCD3-101WD WHITE ROCKER SWITCHON-OFF-ON KCD3-101WD WHITE ROCKER SWITCH6.3*0.8 KCD3-101WD WHITE ROCKER SWITCH  KCD3-101WD WHITE ROCKER SWITCHOrange KCD3-101WD WHITE ROCKER SWITCH  KCD3-101WD WHITE ROCKER SWITCH
Red KCD3-101WD WHITE ROCKER SWITCHON-OFF-(ON) KCD3-101WD WHITE ROCKER SWITCH6.3*0.8 KCD3-101WD WHITE ROCKER SWITCH  KCD3-101WD WHITE ROCKER SWITCHRed KCD3-101WD WHITE ROCKER SWITCH
White KCD3-101WD WHITE ROCKER SWITCH(ON)-OFF-(ON) KCD3-101WD WHITE ROCKER SWITCH  KCD3-101WD WHITE ROCKER SWITCHWhite KCD3-101WD WHITE ROCKER SWITCH
Yellow KCD3-101WD WHITE ROCKER SWITCH  KCD3-101WD WHITE ROCKER SWITCHYellow KCD3-101WD WHITE ROCKER SWITCH

Characteristics

Permissible operating speed1 to 500 mm/s
Permissible operating frequencyMechanical30 operations / min max.
Electrical20 operations / min max.
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)20 mΩ max. (6 to 8 VDC, 1 A, voltage drop method)
Dielectric strengthBetween terminals of the same polarity2.000 VAG, 50/60 Hz, for 1 min
Between terminals of the different polarity2.000 VAG, 50/60 Hz, for 1 min (See Note *)
Between charged metal parts and the ground terminal4.000 VAG, 50/60 Hz, for 1 min
Vibration resistanceMalfunction10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceMalfunction300 m/s2 max.
DurabilityMechanical40,000 operations min.
Electrical20,000 operations min.
WeightNon-illuminated: Approx 15g. Illuminated: Approx 16g.
Inrush current100A max. (100 ms max.)
Ambient operating temperature– 25 to +50 C (with no icing or condensation)
Ambient operating humidity45 to 85 %RH
Degree of protectionIEC IP40
Electric shock protection classClass II
PTI (proof tracking index)175
Pollution degree2

KCD3-101RNA LIGHT ILLUMINATED ROCKER SWITCH

Applications

Rocker Switch Applications

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.

MonitorsCopiersPrinters
KCD3-101WD WHITE ROCKER SWITCHKCD3-101WD WHITE ROCKER SWITCHKCD3-101WD WHITE ROCKER SWITCH
Power SuppliesMeasuring DevicesPower Outlet Strips
KCD3-101WD WHITE ROCKER SWITCHKCD3-101WD WHITE ROCKER SWITCHKCD3-101WD WHITE ROCKER SWITCH
