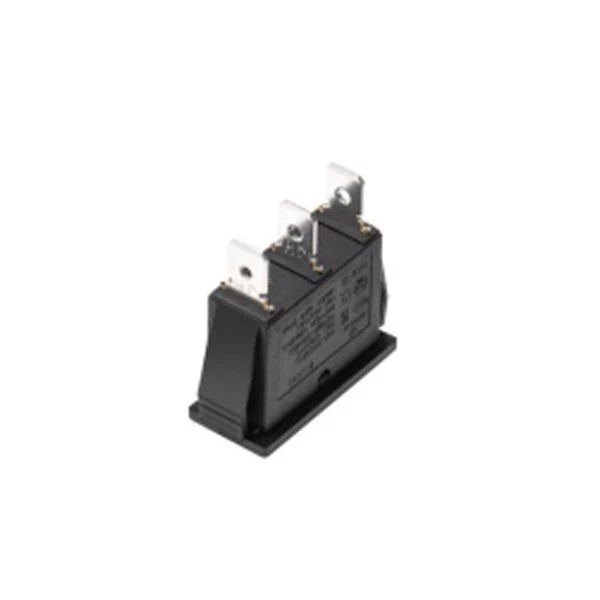

KCD3-101KDW SPDT ON OFF ON ROCKER SWITCH

KCD3-101KDW

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
16A 250V AC 20(12)A 125V AC

20A 125V AC 20GP 125V AC

16(10)A 250V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 105/55
  • Dielectric Resistance:
≦ 50MΩ

Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing WEUP’s On Off On Rocker Switch, the perfect choice for B2B buyers such as importers, distributors, manufacturers, brands, wholesalers, and retailers. This high-quality switch offers a range of features and functions that make it a standout product in the market.

Product Name: KCD3-101KDW SPDT On Off On Rocker Switch

Features and Benefits:

  • Pilot Light or Illumination: The KCD3-101KDW Rocker Switch is available with a pilot light or illumination option, allowing for easy visibility in low-light conditions. This feature is particularly useful in applications where the switch needs to be clearly visible.
  • Imprinted Markings: The switch comes with imprinted markings, ensuring that the switch’s functions are clearly labeled. This makes it easy for users to understand and operate the switch without any confusion.
  • IP54 Splash Proof Rubber Boot Option: For added protection, the KCD3-101KDW Rocker Switch offers an IP54 splash-proof rubber boot option. This feature ensures that the switch is resistant to splashes and can withstand harsh environments, making it ideal for use in various applications.
  • Quick Connect or Blade Terminals: The switch is designed with quick connect or blade terminals, providing ease of installation and allowing for efficient wiring connections. This feature saves time and effort during the installation process.

Specifications:

  • Contact Rating: The KCD3-101KDW Rocker Switch has a contact rating of 16A 250V AC, 20(12)A 125V AC, and 20A 125V AC 20GP 125V AC. This ensures that the switch can handle high electrical loads, making it suitable for a wide range of applications.
  • Electrical Life: With a minimum of 50,000 cycles, this switch offers excellent durability and long-lasting performance. It can withstand frequent use without compromising its functionality.
  • Insulation Resistance: The switch has a minimum insulation resistance of 100 MΩ, ensuring reliable and safe operation.
  • Degree of Protection: With an IP55 rating, the KCD3-101KDW Rocker Switch provides effective protection against dust and water splashes. This makes it suitable for use in various environments.
  • Operating Temperature: The switch can operate within a temperature range of T 105/55, allowing for versatility in different conditions.

Typical Applications:

The KCD3-101KDW Rocker Switch is versatile and be used in various applications, including:

Small appliances Computers and peripherals

  • Medical instrumentation

Why ChooseUP’s On Off On Rocker Switch:

  1. Extensive Customization: WEUP offers a range of customization options for the rocker switch. With multi-pole multi-position functionality, the switch can be tailored meet requirements. WEUP’s own D&R development allows for the of new models according to customers’ requests, ensuring a perfect fit any application.
  2. Wide Range Configurations: The rocker switch is available in different configurations, including two On/Off,-position,ary, maintained, and more. This variety allows to choose the most suitable configuration for their specific needs.
  3. lluminated Sealed Versions: The switch is available in illuminated, including LED and incandescent options. This makes it easy to identify switch’s status at a glance. Additionally, sealed/waterproof are available for applications that require enhanced protection against moisture dust.
  4. High-Quality Construction: WEUP’s rocker switches are manufactured with top-notch quality. The switches are built to withstand demanding environments and offer reliable performance over an extended period.
  5. Support for Custom Wire Harness and Actuator Marking Requests: WEUP understands that every customer has unique requirements. Therefore, they offer support for custom wire harness and actuator marking requests. This ensures that the switch integrates seamlessly into the overall design and meets customers’ specific needs.
  6. Trusted Manufacturer: WEUP is one of China’s leading manufacturers and suppliers of rocker switches. Their products are known for their superior quality, reliability, and durability. With a strong reputation in the industry, WEUP is a trusted choice among B2B buyers.

Applications:

The KCD3-101KDW Rocker Switch finds applications in various industries:

  • Power Supply Switches for Consumer Electronics: Whether it’s in monitors, printers, or measuring devices, this rocker switch provides a reliable on/off function that ensures smooth operation.
  • PC Peripherals: From keyboards to external hard drives, this rocker switch can be used in various PC peripherals to control power supply and functionality.
  • Office/Commercial Equipment: Copiers, printers, and other office equipment require a dependable rocker switch to control their power supply. The KCD3-101KDW Rocker Switch provides just that.

Conclusion:

WEUP’s On Off On Rocker Switch (KCD3-101KDW) is an exceptional product that offers a range of features and benefits suitable for B2B buyers like importers, distributors, manufacturers, brands, wholesalers, and retailers. Its pilot light or illumination option, imprinted markings, IP54 splash-proof rubber boot option, quick connect or blade terminals, and customization options make it a standout choice in the market. With its high-quality construction, reliability, and support for custom requests, WEUP’s rocker switch is the ideal solution for various applications in small appliances, computers and peripherals, and medical instrumentation. Choose WEUP as your trusted partner for rocker switches and experience top-notch quality from a leading manufacturer in China.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

KCD3-101KDW SPDT ON OFF ON ROCKER SWITCH







KCD3103K2PA1KC
Switch product typeBase TypeBase ColorCircuit DiagramTerminalMarkingButton ColorActuator
Black KCD3-101KDW SPDT ON OFF ON ROCKER SWITCHON-OFF KCD3-101KDW SPDT ON OFF ON ROCKER SWITCH6.3*0.8 KCD3-101KDW SPDT ON OFF ON ROCKER SWITCH  KCD3-101KDW SPDT ON OFF ON ROCKER SWITCHBlack KCD3-101KDW SPDT ON OFF ON ROCKER SWITCH  KCD3-101KDW SPDT ON OFF ON ROCKER SWITCH
Blue KCD3-101KDW SPDT ON OFF ON ROCKER SWITCHON-OFF KCD3-101KDW SPDT ON OFF ON ROCKER SWITCH6.3*0.8 KCD3-101KDW SPDT ON OFF ON ROCKER SWITCH  KCD3-101KDW SPDT ON OFF ON ROCKER SWITCHBlue KCD3-101KDW SPDT ON OFF ON ROCKER SWITCH  KCD3-101KDW SPDT ON OFF ON ROCKER SWITCH
Green KCD3-101KDW SPDT ON OFF ON ROCKER SWITCHON-OFF KCD3-101KDW SPDT ON OFF ON ROCKER SWITCH6.3*0.8 KCD3-101KDW SPDT ON OFF ON ROCKER SWITCH  KCD3-101KDW SPDT ON OFF ON ROCKER SWITCHGreen KCD3-101KDW SPDT ON OFF ON ROCKER SWITCH  KCD3-101KDW SPDT ON OFF ON ROCKER SWITCH
Orange KCD3-101KDW SPDT ON OFF ON ROCKER SWITCHON-OFF-ON KCD3-101KDW SPDT ON OFF ON ROCKER SWITCH6.3*0.8 KCD3-101KDW SPDT ON OFF ON ROCKER SWITCH  KCD3-101KDW SPDT ON OFF ON ROCKER SWITCHOrange KCD3-101KDW SPDT ON OFF ON ROCKER SWITCH  KCD3-101KDW SPDT ON OFF ON ROCKER SWITCH
Red KCD3-101KDW SPDT ON OFF ON ROCKER SWITCHON-OFF-(ON) KCD3-101KDW SPDT ON OFF ON ROCKER SWITCH6.3*0.8 KCD3-101KDW SPDT ON OFF ON ROCKER SWITCH  KCD3-101KDW SPDT ON OFF ON ROCKER SWITCHRed KCD3-101KDW SPDT ON OFF ON ROCKER SWITCH
White KCD3-101KDW SPDT ON OFF ON ROCKER SWITCH(ON)-OFF-(ON) KCD3-101KDW SPDT ON OFF ON ROCKER SWITCH  KCD3-101KDW SPDT ON OFF ON ROCKER SWITCHWhite KCD3-101KDW SPDT ON OFF ON ROCKER SWITCH
Yellow KCD3-101KDW SPDT ON OFF ON ROCKER SWITCH  KCD3-101KDW SPDT ON OFF ON ROCKER SWITCHYellow KCD3-101KDW SPDT ON OFF ON ROCKER SWITCH

Characteristics

Permissible operating speed1 to 500 mm/s
Permissible operating frequencyMechanical30 operations / min max.
Electrical20 operations / min max.
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)20 mΩ max. (6 to 8 VDC, 1 A, voltage drop method)
Dielectric strengthBetween terminals of the same polarity2.000 VAG, 50/60 Hz, for 1 min
Between terminals of the different polarity2.000 VAG, 50/60 Hz, for 1 min (See Note *)
Between charged metal parts and the ground terminal4.000 VAG, 50/60 Hz, for 1 min
Vibration resistanceMalfunction10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceMalfunction300 m/s2 max.
DurabilityMechanical40,000 operations min.
Electrical20,000 operations min.
WeightNon-illuminated: Approx 15g. Illuminated: Approx 16g.
Inrush current100A max. (100 ms max.)
Ambient operating temperature– 25 to +50 C (with no icing or condensation)
Ambient operating humidity45 to 85 %RH
Degree of protectionIEC IP40
Electric shock protection classClass II
PTI (proof tracking index)175
Pollution degree2

KCD3-101KDW SPDT ON OFF ON ROCKER SWITCH

Applications

Rocker Switch Applications

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.

MonitorsCopiersPrinters
KCD3-101KDW SPDT ON OFF ON ROCKER SWITCHKCD3-101KDW SPDT ON OFF ON ROCKER SWITCHKCD3-101KDW SPDT ON OFF ON ROCKER SWITCH
Power SuppliesMeasuring DevicesPower Outlet Strips
KCD3-101KDW SPDT ON OFF ON ROCKER SWITCHKCD3-101KDW SPDT ON OFF ON ROCKER SWITCHrocker switch
