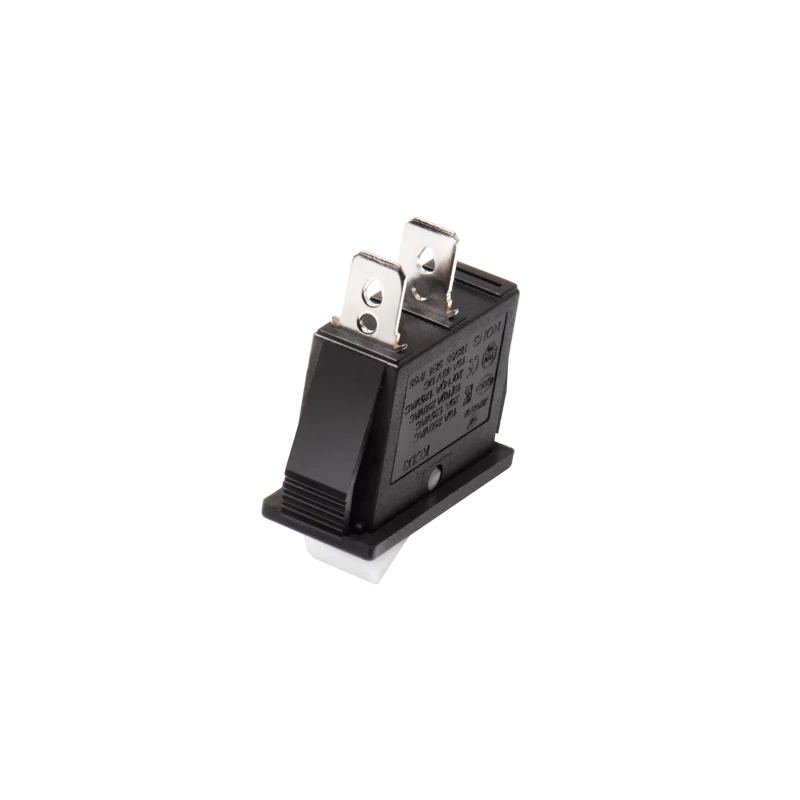

KCD3-101-2P-KW On Off On 12v Rocker Switch

KCD3-101-2P-KW

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
16A 250V AC 20(12)A 125V AC

20A 125V AC 20GP 125V AC

16(10)A 250V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 105/55
  • Dielectric Resistance:
≦ 50MΩ

Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing the WEUP 12v Rocker Switch: A Versatile Solution for B2B Buyers

The WEUP 12v Rocker Switch, model number KCD3-101-2P-KW, is the ultimate choice for importers, distributors, manufacturers, brands, wholesalers, and retailers in search of a reliable and high-performing switch for their products. This rocker switch offers a wide range of features and functions that make it stand out from the competition. Let’s delve into the details and explore why the WEUP 12v Rocker Switch is the ideal choice for your business.

1. Versatility and Flexibility

The WEUP 12v Rocker Switch is designed to meet the diverse needs of various industries. Whether you’re in the small appliance, computer and peripheral, or medical instrumentation sector, this rocker switch is suitable for a wide range of applications. Its multi-pole, multi-position functionality allows it to be used in different configurations, including two-position On/Off, three-position, momentary, and maintained options. This versatility makes it an excellent choice for a variety of products and ensures compatibility with different electrical systems.

2. High-Quality Construction

WEUP takes pride in its commitment to producing high-quality products, and the 12v Rocker Switch is no exception. Built with precision and durability in mind, this switch boasts a long electrical life of over 50,000 cycles. Its contact rating of 16A 250V AC ensures reliable performance and can handle demanding applications without compromising safety or functionality. The switch’s insulation resistance of over 100 MΩ further contributes to its robust construction and guarantees optimal performance even in challenging environments.

3. Easy Installation and Connection

The WEUP 12v Rocker Switch offers two convenient terminal options: quick connect or blade terminals. This flexibility simplifies the installation process, allowing for easy integration into your products. Whether you prefer a quick connection for faster assembly or blade terminals for a more secure connection, this rocker switch provides the versatility you need. Additionally, the switch’s imprinted markings ensure clear identification and effortless operation.

4. Enhanced Safety Features

Safety is of paramount importance when it comes to electrical components, and the WEUP 12v Rocker Switch does not disappoint. With an IP54 splash-proof rubber boot option available, this switch offers additional protection against moisture and dust. This feature is particularly beneficial for applications that may be exposed to harsh environments or require extra durability. The switch’s high degree of protection (IP55) further guarantees its reliability and longevity.

5. Customization Options

WEUP understands that every business has unique requirements, which is why they offer customization options for their rocker switches. As China manufacturers with their own D&R development capabilities, WEUP can create new models according to your specific requests. Whether you need a different shape, size, construction, or recessed switch guards to prevent accidental actuation, WEUP can tailor their rocker switches to meet your exact needs. Additionally, they can support custom wire harness and actuator marking requests to ensure seamless integration into your products.

6. Wide Range of Options

The WEUP 12v Rocker Switch comes in various configurations to suit your preferences. From different button colors like black, blue, green, orange, red, white, and yellow to circuit diagrams such as ON-OFF or ON-OFF-ON, you have the freedom to choose the ideal combination for your products. This wide range of options ensures that you can find the perfect fit for your brand and design aesthetic.

7. Exceptional Customer Support

WEUP is dedicated to providing exceptional customer support throughout your business journey. From pre-sales to after-sales assistance, their team of experts is readily available to address any queries or concerns you may have. Whether you require technical guidance during the integration process or need assistance with customization options, WEUP’s knowledgeable staff will provide you with the necessary support to ensure a seamless experience.

In conclusion, the WEUP 12v Rocker Switch (model number KCD3-101-2P-KW) offers a compelling solution for B2B buyers seeking a reliable and versatile switch for their products. With its versatility, high-quality construction, easy installation, enhanced safety features, customization options, wide range of choices, and exceptional customer support, this rocker switch stands out as a top choice among importers, distributors, manufacturers, brands, wholesalers, and retailers worldwide.

To explore further opportunities with WEUP as a trusted manufacturer and supplier from China, contact their factory directly for wholesale pricing and discuss your specific requirements with their experienced team of vendors. Choose the WEUP 12v Rocker Switch for unmatched quality and performance that will elevate your products and meet the demands of your customers.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

KCD3-101-2P-KW On Off On 12v Rocker Switch







KCD3103K2PA1KC
Switch product typeBase TypeBase ColorCircuit DiagramTerminalMarkingButton ColorActuator
Black KCD3-101-2P-KW On Off On 12v Rocker SwitchON-OFF KCD3-101-2P-KW On Off On 12v Rocker Switch6.3*0.8 KCD3-101-2P-KW On Off On 12v Rocker Switch  KCD3-101-2P-KW On Off On 12v Rocker SwitchBlack KCD3-101-2P-KW On Off On 12v Rocker Switch  KCD3-101-2P-KW On Off On 12v Rocker Switch
Blue KCD3-101-2P-KW On Off On 12v Rocker SwitchON-OFF KCD3-101-2P-KW On Off On 12v Rocker Switch6.3*0.8 KCD3-101-2P-KW On Off On 12v Rocker Switch  KCD3-101-2P-KW On Off On 12v Rocker SwitchBlue KCD3-101-2P-KW On Off On 12v Rocker Switch  KCD3-101-2P-KW On Off On 12v Rocker Switch
Green KCD3-101-2P-KW On Off On 12v Rocker SwitchON-OFF KCD3-101-2P-KW On Off On 12v Rocker Switch6.3*0.8 KCD3-101-2P-KW On Off On 12v Rocker Switch  KCD3-101-2P-KW On Off On 12v Rocker SwitchGreen KCD3-101-2P-KW On Off On 12v Rocker Switch  KCD3-101-2P-KW On Off On 12v Rocker Switch
Orange KCD3-101-2P-KW On Off On 12v Rocker SwitchON-OFF-ON KCD3-101-2P-KW On Off On 12v Rocker Switch6.3*0.8 KCD3-101-2P-KW On Off On 12v Rocker Switch  KCD3-101-2P-KW On Off On 12v Rocker SwitchOrange KCD3-101-2P-KW On Off On 12v Rocker Switch  KCD3-101-2P-KW On Off On 12v Rocker Switch
Red KCD3-101-2P-KW On Off On 12v Rocker SwitchON-OFF-(ON) KCD3-101-2P-KW On Off On 12v Rocker Switch6.3*0.8 KCD3-101-2P-KW On Off On 12v Rocker Switch  KCD3-101-2P-KW On Off On 12v Rocker SwitchRed KCD3-101-2P-KW On Off On 12v Rocker Switch
White KCD3-101-2P-KW On Off On 12v Rocker Switch(ON)-OFF-(ON) KCD3-101-2P-KW On Off On 12v Rocker Switch  KCD3-101-2P-KW On Off On 12v Rocker SwitchWhite KCD3-101-2P-KW On Off On 12v Rocker Switch
Yellow KCD3-101-2P-KW On Off On 12v Rocker Switch  KCD3-101-2P-KW On Off On 12v Rocker SwitchYellow KCD3-101-2P-KW On Off On 12v Rocker Switch

Characteristics

Permissible operating speed1 to 500 mm/s
Permissible operating frequencyMechanical30 operations / min max.
Electrical20 operations / min max.
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)20 mΩ max. (6 to 8 VDC, 1 A, voltage drop method)
Dielectric strengthBetween terminals of the same polarity2.000 VAG, 50/60 Hz, for 1 min
Between terminals of the different polarity2.000 VAG, 50/60 Hz, for 1 min (See Note *)
Between charged metal parts and the ground terminal4.000 VAG, 50/60 Hz, for 1 min
Vibration resistanceMalfunction10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceMalfunction300 m/s2 max.
DurabilityMechanical40,000 operations min.
Electrical20,000 operations min.
WeightNon-illuminated: Approx 15g. Illuminated: Approx 16g.
Inrush current100A max. (100 ms max.)
Ambient operating temperature– 25 to +50 C (with no icing or condensation)
Ambient operating humidity45 to 85 %RH
Degree of protectionIEC IP40
Electric shock protection classClass II
PTI (proof tracking index)175
Pollution degree2

KCD3-101-2P-KW On Off On 12v Rocker Switch

Applications

Rocker Switch Applications

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.

MonitorsCopiersPrinters
KCD3-101-3P On Off On 12v Rocker SwitchKCD3-101-3P On Off On 12v Rocker SwitchKCD3-101-3P On Off On 12v Rocker Switch
Power SuppliesMeasuring DevicesPower Outlet Strips
KCD3-101-3P On Off On 12v Rocker SwitchKCD3-101-3P On Off On 12v Rocker SwitchKCD3-101-3P On Off On 12v Rocker Switch
