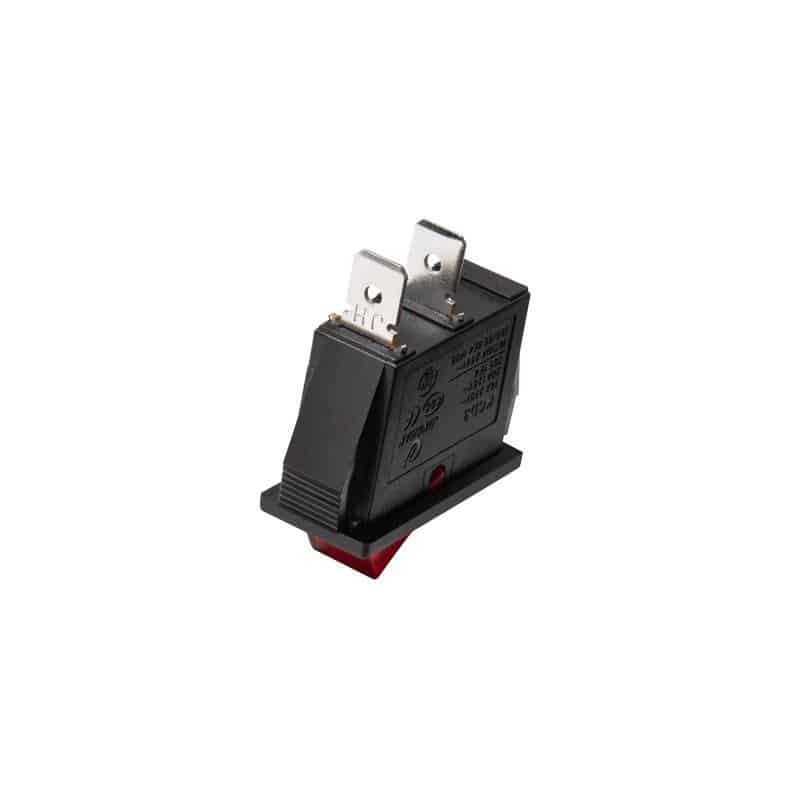

KCD3-101-2P-KR

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
16A 250V AC 20(12)A 125V AC

20A 125V AC 20GP 125V AC

16(10)A 250V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 105/55
  • Dielectric Resistance:
≦ 50MΩ

Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing the WEUP 12v Rocker Switch: The Perfect Choice for B2B Buyers

When it comes to finding a reliable and efficient rocker switch, WEUP’s 12v Rocker Switch is the ultimate solution. Designed with the needs of B2B buyers in mind, this switch offers a range of features and functions that make it ideal for importers, distributors, manufacturers, brands, wholesalers, and retailers. Let’s take a closer look at why this product is a must-have for your business.

1. High-Quality Construction The 12v Rocker Switch from WEUP is crafted with precision and attention to detail. As one of the leading China manufacturers in the industry, WEUP ensures that each switch is made using top-quality materials, guaranteeing durability and longevity. This ensures that you receive a product that meets the highest standards of excellence.

2. Versatility and Customization WEUP understands that different businesses have different requirements. That’s why the 12v Rocker Switch is available in various configurations, including two-position On/Off, three-position, momentary, maintained, and more. This versatility allows you to choose the perfect switch that suits your specific needs. Additionally, WEUP provides customization options such as shape, size, construction, frames, and recessed switch guards to prevent accidental actuation. With WEUP, you can have a tailor-made solution for your business.

3. Wide Range of Applications The WEUP 12v Rocker Switch is designed to excel in a variety of applications. Whether you’re in the small appliance industry, dealing with computers and peripherals, or working with medical instrumentation, this switch is the perfect fit. Its impeccable performance and reliability ensure that it can handle the demands of any industry.

4. Pilot Light or Illumination One standout feature of the 12v Rocker Switch is its pilot light or illumination option. This allows for easy identification of the switch’s status, even in low-light conditions. Whether you need to indicate power-on or power-off status, this feature provides convenience and enhanced functionality.

5. Imprinted Markings With clear and legible imprinted markings, the 12v Rocker Switch ensures ease of use and quick identification of functions. This feature saves time and reduces the chances of errors or confusion during operation.

6. Quick Connect or Blade Terminals The 12v Rocker Switch offers the flexibility of quick connect or blade terminals. This allows for easy installation and connection to your electrical system. Whether you prefer the convenience of quick connect terminals or the reliability of blade terminals, WEUP has you covered.

7. IP54 Splash Proof Rubber Boot Option For environments where water or moisture is a concern, WEUP offers an optional IP54 splash-proof rubber boot. This protective covering adds an extra layer of defense against splashes and ensures the longevity of your switch.

8. Exceptional Electrical Performance The 12v Rocker Switch boasts impressive electrical capabilities. With a contact rating of 16A 250V AC, 20(12)A 125V AC, and 20A 125V AC, it can handle high electrical loads with ease. Its electrical life of over 50,000 cycles guarantees reliable performance for an extended period.

9. High Degree of Protection WEUP understands the importance of protecting electrical components from external factors. That’s why the 12v Rocker Switch comes with a degree of protection rated at IP55. This ensures resistance to dust and water splashes, making it suitable for both indoor and outdoor applications.

10. Dependable Performance When it comes to switches, reliability is key. The 12v Rocker Switch from WEUP undergoes rigorous testing to ensure its dependability in demanding conditions. With an insulation resistance of over 100 MΩ and dielectric resistance of less than 50MΩ, this switch guarantees optimal performance and peace of mind.

In conclusion, the WEUP 12v Rocker Switch is the perfect choice for B2B buyers looking for a reliable and versatile switch solution. With its high-quality construction, wide range of applications, customizable options, and exceptional electrical performance, this switch stands out from the competition. Trust in WEUP’s expertise as one of the leading China manufacturers to provide you with a top-notch product that meets your specific needs. Don’t miss out on this opportunity to enhance your business operations – choose WEUP’s 12v Rocker Switch today!

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

KCD3-101-2P-KR On Off On 12v Rocker Switch

KCD3103K2PA1KC
Switch product typeBase TypeBase ColorCircuit DiagramTerminalMarkingButton ColorActuator
Black KCD3-101-2P-KR On Off On 12v Rocker SwitchON-OFF KCD3-101-2P-KR On Off On 12v Rocker Switch6.3*0.8 KCD3-101-2P-KR On Off On 12v Rocker Switch  KCD3-101-2P-KR On Off On 12v Rocker SwitchBlack KCD3-101-2P-KR On Off On 12v Rocker Switch  KCD3-101-2P-KR On Off On 12v Rocker Switch
Blue KCD3-101-2P-KR On Off On 12v Rocker SwitchON-OFF KCD3-101-2P-KR On Off On 12v Rocker Switch6.3*0.8 KCD3-101-2P-KR On Off On 12v Rocker Switch  KCD3-101-2P-KR On Off On 12v Rocker SwitchBlue KCD3-101-2P-KR On Off On 12v Rocker Switch  KCD3-101-2P-KR On Off On 12v Rocker Switch
Green KCD3-101-2P-KR On Off On 12v Rocker SwitchON-OFF KCD3-101-2P-KR On Off On 12v Rocker Switch6.3*0.8 KCD3-101-2P-KR On Off On 12v Rocker Switch  KCD3-101-2P-KR On Off On 12v Rocker SwitchGreen KCD3-101-2P-KR On Off On 12v Rocker Switch  KCD3-101-2P-KR On Off On 12v Rocker Switch
Orange KCD3-101-2P-KR On Off On 12v Rocker SwitchON-OFF-ON KCD3-101-2P-KR On Off On 12v Rocker Switch6.3*0.8 KCD3-101-2P-KR On Off On 12v Rocker Switch  KCD3-101-2P-KR On Off On 12v Rocker SwitchOrange KCD3-101-2P-KR On Off On 12v Rocker Switch  KCD3-101-2P-KR On Off On 12v Rocker Switch
Red KCD3-101-2P-KR On Off On 12v Rocker SwitchON-OFF-(ON) KCD3-101-2P-KR On Off On 12v Rocker Switch6.3*0.8 KCD3-101-2P-KR On Off On 12v Rocker Switch  KCD3-101-2P-KR On Off On 12v Rocker SwitchRed KCD3-101-2P-KR On Off On 12v Rocker Switch
White KCD3-101-2P-KR On Off On 12v Rocker Switch(ON)-OFF-(ON) KCD3-101-2P-KR On Off On 12v Rocker Switch  KCD3-101-2P-KR On Off On 12v Rocker SwitchWhite KCD3-101-2P-KR On Off On 12v Rocker Switch
Yellow KCD3-101-2P-KR On Off On 12v Rocker Switch  KCD3-101-2P-KR On Off On 12v Rocker SwitchYellow KCD3-101-2P-KR On Off On 12v Rocker Switch

Characteristics

Permissible operating speed1 to 500 mm/s
Permissible operating frequencyMechanical30 operations / min max.
Electrical20 operations / min max.
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)20 mΩ max. (6 to 8 VDC, 1 A, voltage drop method)
Dielectric strengthBetween terminals of the same polarity2.000 VAG, 50/60 Hz, for 1 min
Between terminals of the different polarity2.000 VAG, 50/60 Hz, for 1 min (See Note *)
Between charged metal parts and the ground terminal4.000 VAG, 50/60 Hz, for 1 min
Vibration resistanceMalfunction10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceMalfunction300 m/s2 max.
DurabilityMechanical40,000 operations min.
Electrical20,000 operations min.
WeightNon-illuminated: Approx 15g. Illuminated: Approx 16g.
Inrush current100A max. (100 ms max.)
Ambient operating temperature– 25 to +50 C (with no icing or condensation)
Ambient operating humidity45 to 85 %RH
Degree of protectionIEC IP40
Electric shock protection classClass II
PTI (proof tracking index)175
Pollution degree2

KCD3-101-2P-KR On Off On 12v Rocker Switch

Applications

Rocker Switch Applications

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.

MonitorsCopiersPrinters
KCD3-101-3P On Off On 12v Rocker SwitchKCD3-101-3P On Off On 12v Rocker SwitchKCD3-101-3P On Off On 12v Rocker Switch
Power SuppliesMeasuring DevicesPower Outlet Strips
KCD3-101-3P On Off On 12v Rocker SwitchKCD3-101-3P On Off On 12v Rocker SwitchKCD3-101-3P On Off On 12v Rocker Switch
