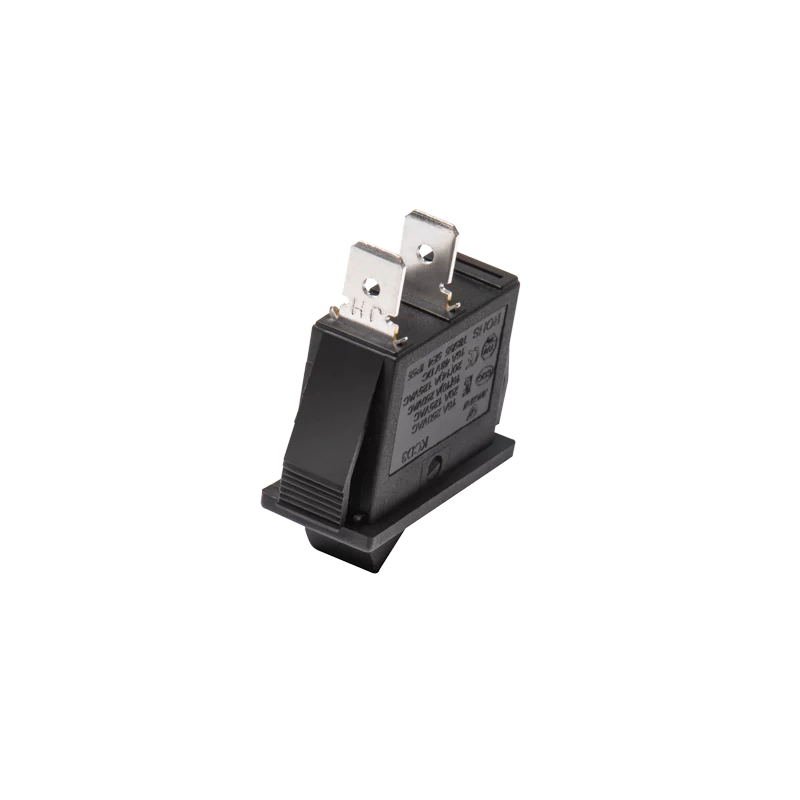

KCD3-101-2P-KK On Off On 12v Rocker Switch

KCD3-101-2P-KK

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
16A 250V AC 20(12)A 125V AC

20A 125V AC 20GP 125V AC

16(10)A 250V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 105/55
  • Dielectric Resistance:
≦ 50MΩ

Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing the WEUP 12v Rocker Switch

The WEUP 12v Rocker Switch (KCD3-101-2P-KK) is a versatile and reliable switch that is designed to meet the needs of B2B buyers such as importers, distributors, manufacturers, brands, wholesalers, and retailers. This high-quality rocker switch offers a range of features and functions that make it an excellent choice for a variety of applications.

Reliable Performance

  • The WEUP 12v Rocker Switch is built to last with a high electrical life of over 50,000 cycles. This ensures that the switch will continue to perform consistently even after prolonged use.
  • With a contact rating of 16A 250V AC, this rocker switch can handle high electrical loads, making it suitable for a wide range of small appliances, computers and peripherals, and medical instrumentation.
  • The switch also has an insulation resistance of over 100 MΩ, providing excellent protection against electrical leakage.

Versatile Functionality

  • The WEUP 12v Rocker Switch offers different functions, including the essential on/off function as well as 3 positions and button changeover options. This versatility allows it to be used in various applications, providing flexibility to meet different needs.
  • The switch comes with imprinted markings, making it easy to identify the different positions and functions. This ensures smooth operation and eliminates any confusion.
  • It also features a pilot light or illumination option, which is particularly useful in applications where visual indication of the switch status is required.

Durable Construction

  • The WEUP 12v Rocker Switch is built to withstand tough conditions. It has a degree of protection of IP55, offering excellent resistance against dust and water splashes. This makes it suitable for use in environments where moisture or dirt may be present.
  • The switch has an operating temperature range of T 105/55, allowing it to perform reliably even in extreme temperature conditions.
  • With a dielectric resistance of less than 50MΩ, the switch provides effective insulation between its terminals, ensuring safe and reliable operation.

Customizable Options

  • WEUP understands that different applications may require specific switch configurations. As a result, they offer customization options for their rocker switches.
  • With their own D&R development capabilities, WEUP can easily create new models according to customers’ requests. This allows buyers to have switches tailored to their specific needs and requirements.
  • Additional customization options include different shapes, sizes, constructions, frames, and recessed switch guards. These options provide further flexibility in designing the perfect rocker switch for any application.

Wide Range of Applications The WEUP 12v Rocker Switch is suitable for a variety of applications across different industries. Some typical applications include:

  • Small appliances: This rocker switch can be used in a range of small household appliances like air purifiers and dehumidifiers.
  • Computers and peripherals: It is compatible with various computer equipment such as monitors, printers, and power supply units.
  • Medical instrumentation: The switch meets the requirements for medical instruments and can be used in various healthcare devices.

Why Choose WEUP? WEUP stands out among China manufacturers and suppliers as a leading provider of high-quality rocker switches. Here’s why you should consider WEUP for your B2B needs:

  1. Superior Quality: The WEUP 12v Rocker Switch is manufactured using top-quality materials and undergoes rigorous testing to ensure durability and reliability.
  2. Customization Capabilities: WEUP’s ability to create new models according to your specific requirements sets them apart from other manufacturers. They can tailor switches to meet your unique needs.
  3. Excellent Customer Support: With a commitment to customer satisfaction, WEUP provides exceptional customer support from pre-sales to after-sales service. They are responsive and prioritize customer needs.
  4. Wide Range of Options: WEUP offers a comprehensive range of rocker switches with different configurations, sizes, and functionalities. This ensures that you can find the perfect switch for your application.
  5. Competitive Pricing: As a factory direct supplier, WEUP offers wholesale prices without compromising on product quality. This makes them an affordable option for B2B buyers.

In conclusion, the WEUP 12v Rocker Switch (KCD3-101-2P-KK) is an excellent choice for B2B buyers seeking a reliable and versatile switch. Its features such as imprinted markings, pilot light option, and customizable configurations make it ideal for various applications. With WEUP’s commitment to quality and customer support, you can trust them as your preferred supplier. Choose WEUP for your rocker switch needs and experience the difference in performance and service.
