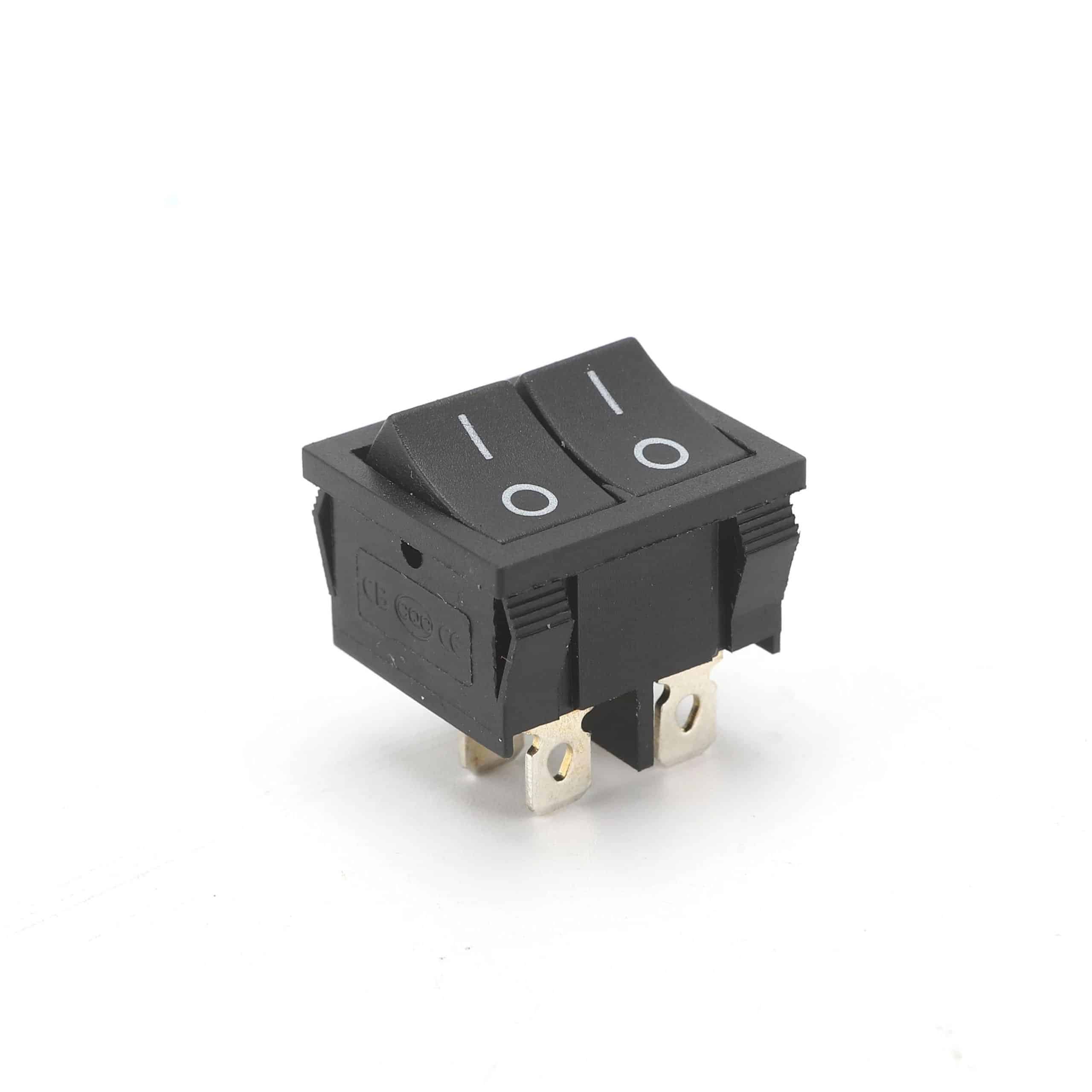

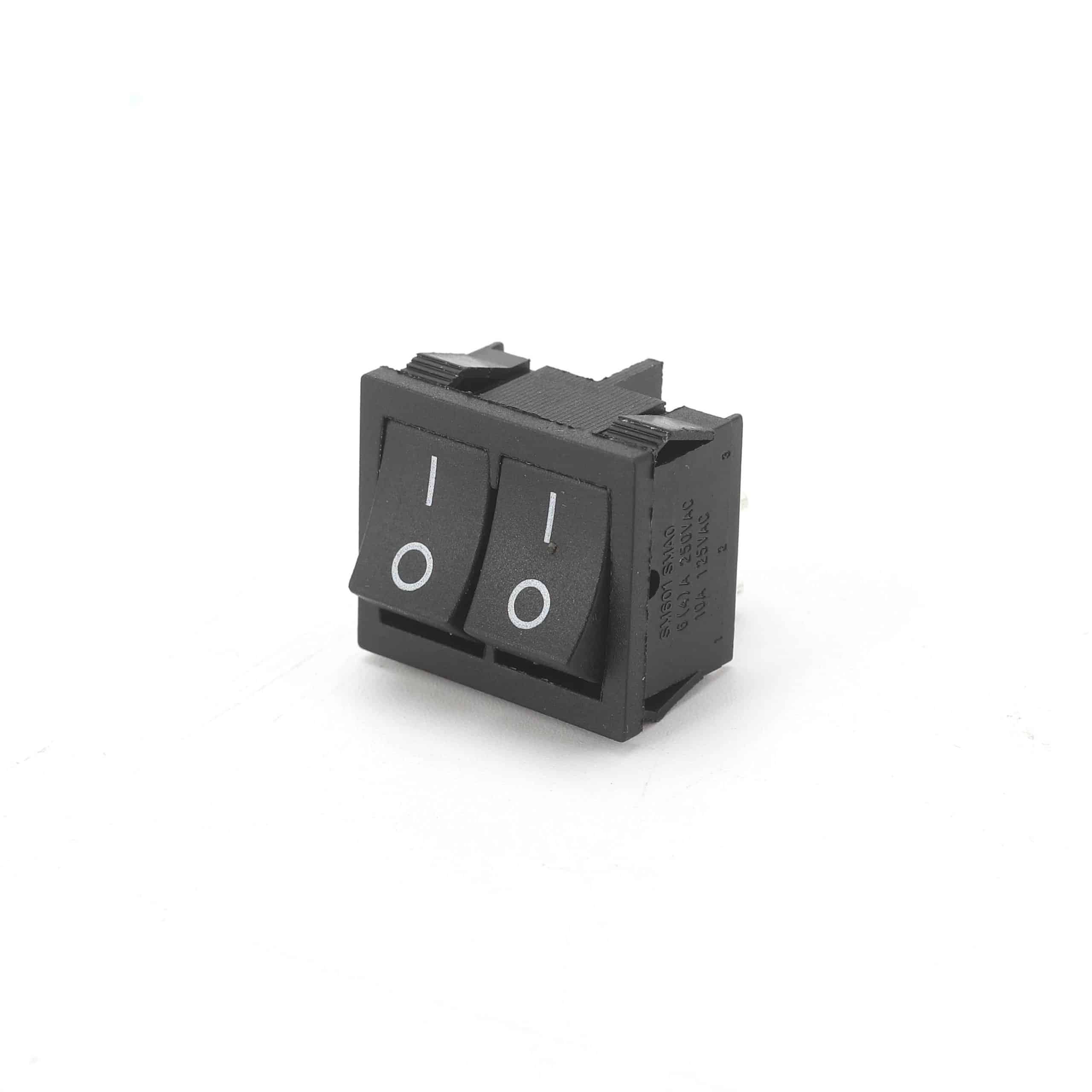

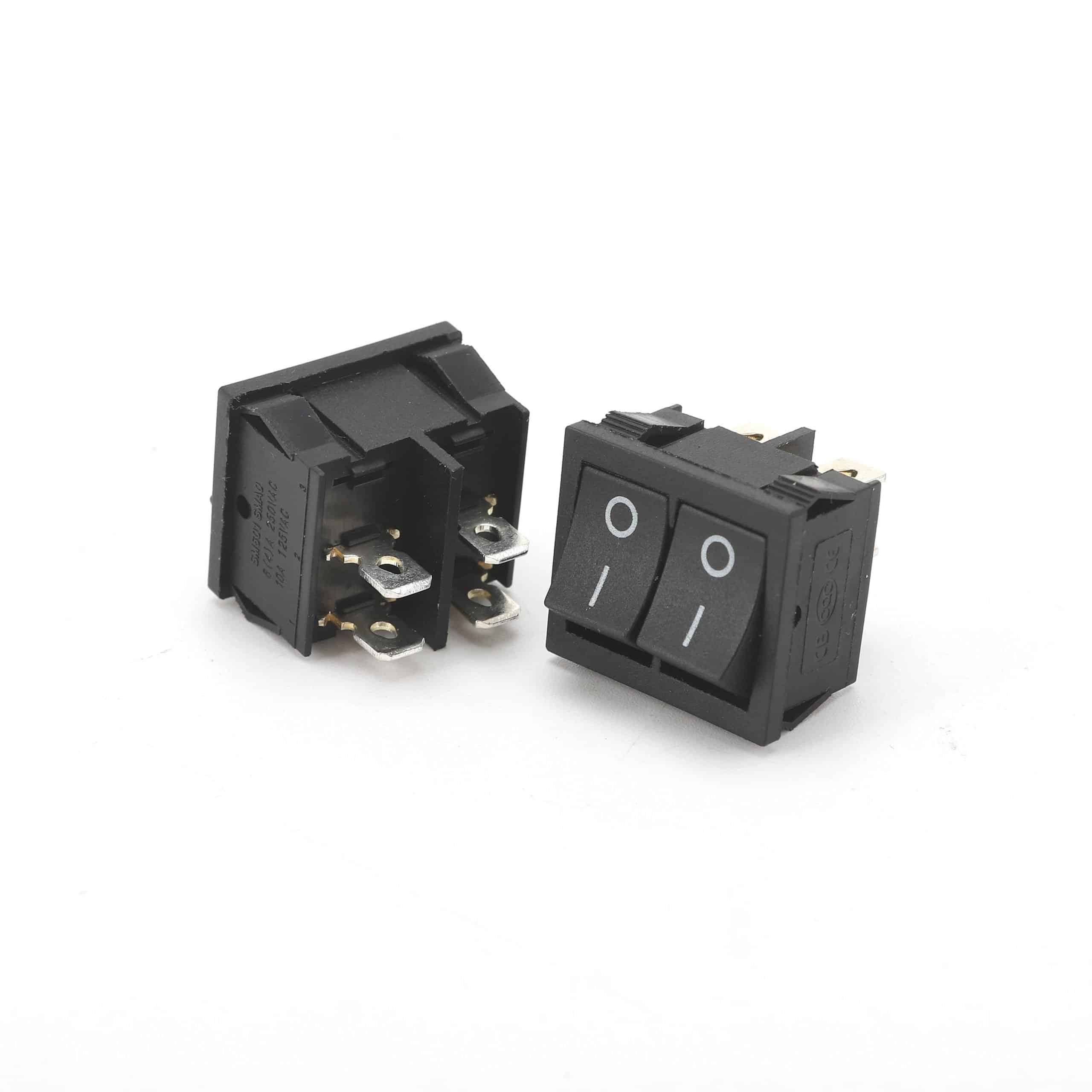

KCD2-502K4PA DOUBLE ROCKER SWITCH SPST

KCD2-502

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
6A 250V AC  6(4)A 250V AC

10A 125V AC   12(6) 125V AC

10(6) 250V AC  12GP 125V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 105/55
  • Contact Resistance:
≦ 50mΩ

To summarize, this product is built with stunning features and great benefits that makes it an ideal choice for small appliances, computers and peripherals, as well as medical instrumentation. It offers a pilot light or illumination for ease of use and imprinted markings for quick identification. Additionally, the IP54 splash-proof rubber boot option makes it suitable for various environments. Lastly, the maximum contact rating is 6A 250V AC  6(4)A 250V AC while its electrical life is ≥ 50000 cycles and insulation resistance stands at ≥ 100mΩ., As well as these specs, this product also has a contact resistance of ≤ 50mΩ and operating temperature of T 85/55. With all these features combined in one unit, you can be assured to have the optimal and secure performance at all times.

Read More

Product Features

Introducing the WEUP Double Rocker Switch (KCD2-502K4PA), a high-quality and versatile electrical component that is sure to meet the needs of B2B buyers like importers, distributors, manufacturers, brands, wholesalers, and retailers. This reliable switch offers a range of features and functions that make it an exceptional choice for various industries.

Features and Benefits:

  • Pilot Light or Illumination: The WEUP Double Rocker Switch comes with a pilot light or illumination feature, allowing users to easily identify whether the switch is on or off. This enhances usability and convenience, especially in low-light environments.
  • Imprinted Markings: With clearly imprinted markings on the switch, users can quickly identify the switch’s function and position. This saves time and minimizes errors when operating multiple switches simultaneously.
  • IP54 Splash Proof Rubber Boot Option: The switch is designed with an IP54 splash-proof rubber boot option, making it suitable for use in environments where water or moisture may be present. This added protection ensures the longevity and reliability of the switch.
  • Quick Connect or Blade Terminals: The WEUP Double Rocker Switch offers the flexibility of quick connect or blade terminals, providing ease of installation and compatibility with a wide range of wiring options. This versatility simplifies the installation process and saves valuable time.

Specifications:

  • Contact Rating: The switch has a contact rating of 6A 250V AC 6(4)A 250V AC, offering robust performance and durability for various applications.
  • Electrical Life: With an electrical life of ≥ 50,000 cycles, this switch is built to withstand frequent use and provide long-lasting reliability.
  • Insulation Resistance: The switch has an insulation resistance of ≥ 100 MΩ, ensuring safe operation and preventing electrical leakage.
  • Degree of Protection: Featuring an IP55 degree of protection, this switch is resistant to dust and water splashes, making it suitable for use in challenging environments.
  • Operating Temperature: The WEUP Double Rocker Switch operates reliably within a temperature range of T 105/55, allowing for versatile use in both high and low-temperature conditions.
  • Contact Resistance: With a contact resistance of ≤ 50mΩ, this switch ensures efficient electrical conductivity, minimizing power loss and maximizing performance.

TYPICAL APPLICATIONS:

The WEUP Double Rocker Switch is an ideal choice for a wide range of applications across various industries. Its versatility and reliability make it suitable for:

  • Small appliances such as air purifiers and dehumidifiers.
  • Computers and peripherals including monitors, copiers, printers, and power supplies.
  • Medical instrumentation where precision and safety are paramount.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

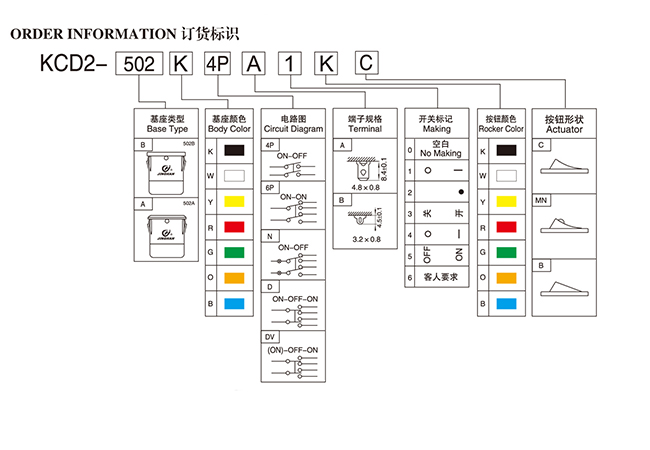

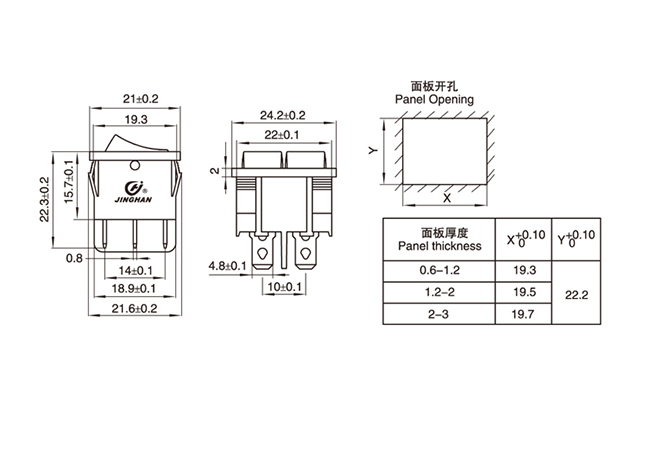

Technical Data

KCD2-502K4PA DOUBLE ROCKER SWITCH SPST







KCD1-2502K4PA1K
Switch product typeBase TypeBase ColorCircuit DiagramTerminalMarkingButton Color
Black KCD2-502K4PA DOUBLE ROCKER SWITCH SPSTON-OFF KCD2-502K4PA DOUBLE ROCKER SWITCH SPST 4.8*0.8 KCD2-502K4PA DOUBLE ROCKER SWITCH SPST  KCD2-502K4PA DOUBLE ROCKER SWITCH SPSTBlack KCD2-502K4PA DOUBLE ROCKER SWITCH SPST
Blue KCD2-502K4PA DOUBLE ROCKER SWITCH SPSTON-OFF KCD2-502K4PA DOUBLE ROCKER SWITCH SPST 3.2*0.8 KCD2-502K4PA DOUBLE ROCKER SWITCH SPST  KCD2-502K4PA DOUBLE ROCKER SWITCH SPSTBlue KCD2-502K4PA DOUBLE ROCKER SWITCH SPST
Green KCD2-502K4PA DOUBLE ROCKER SWITCH SPSTON-OFF KCD2-502K4PA DOUBLE ROCKER SWITCH SPST1.2*0.8 KCD2-502K4PA DOUBLE ROCKER SWITCH SPST  KCD2-502K4PA DOUBLE ROCKER SWITCH SPSTGreen KCD2-502K4PA DOUBLE ROCKER SWITCH SPST
Orange KCD2-502K4PA DOUBLE ROCKER SWITCH SPSTON-ON KCD2-502K4PA DOUBLE ROCKER SWITCH SPST  KCD2-502K4PA DOUBLE ROCKER SWITCH SPSTOrange KCD2-502K4PA DOUBLE ROCKER SWITCH SPST
Red KCD2-502K4PA DOUBLE ROCKER SWITCH SPST  KCD2-502K4PA DOUBLE ROCKER SWITCH SPSTRed KCD2-502K4PA DOUBLE ROCKER SWITCH SPST
White KCD2-502K4PA DOUBLE ROCKER SWITCH SPST  KCD2-502K4PA DOUBLE ROCKER SWITCH SPSTWhite KCD2-502K4PA DOUBLE ROCKER SWITCH SPST
Yellow KCD2-502K4PA DOUBLE ROCKER SWITCH SPST  KCD2-502K4PA DOUBLE ROCKER SWITCH SPSTYellow KCD2-502K4PA DOUBLE ROCKER SWITCH SPST

KCD2-502K4PA DOUBLE ROCKER SWITCH SPST

Applications

Rocker Switch Applications

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.

CopiersPrinters
KCD2-502K4PA DOUBLE ROCKER SWITCH SPSTKCD2-502K4PA DOUBLE ROCKER SWITCH SPST
Measuring DevicesPower Outlet Strips
KCD2-502K4PA DOUBLE ROCKER SWITCH SPSTKCD2-502K4PA DOUBLE ROCKER SWITCH SPST

Related Products (4)

Download Latest Catalog

Do you supply samples? Are the Samples free?

Yes. Usually, 1-2 samples are free of charge, please support us by providing us with any express account such as DHL, FedEx, TNT, or UPS.

How is the shipping?

Our nearest port is Ningbo and Shanghai port, but if you collect the goods to ship together, we could send them to the other farther port. Usually, our customers will choose TNT, DHL, FedEx, and UPS to ship them.

How long is the delivery leading time?

Usually the samples 1-5 days to prepare. For orders, it depends on the quantity. Usually 5-15 days.

How is the packing?

For standard packing, dozens per box, 500pcs or 1000pcs per carton. We also provide you with custom box or carton packing with your logo and design.

How do you do regarding quality control?

All the products will be 100% checked before the shipment.
