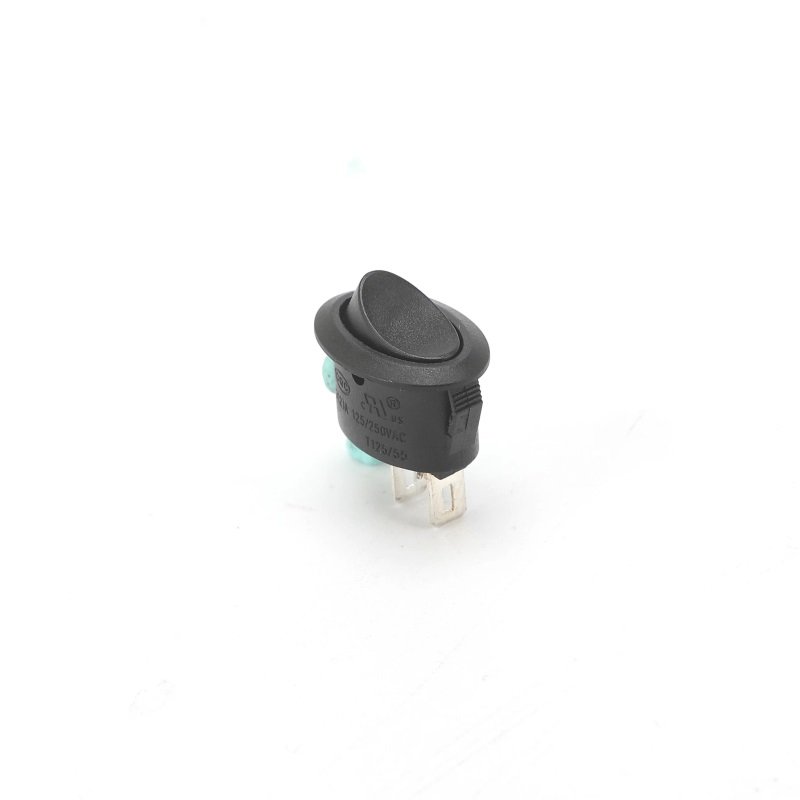

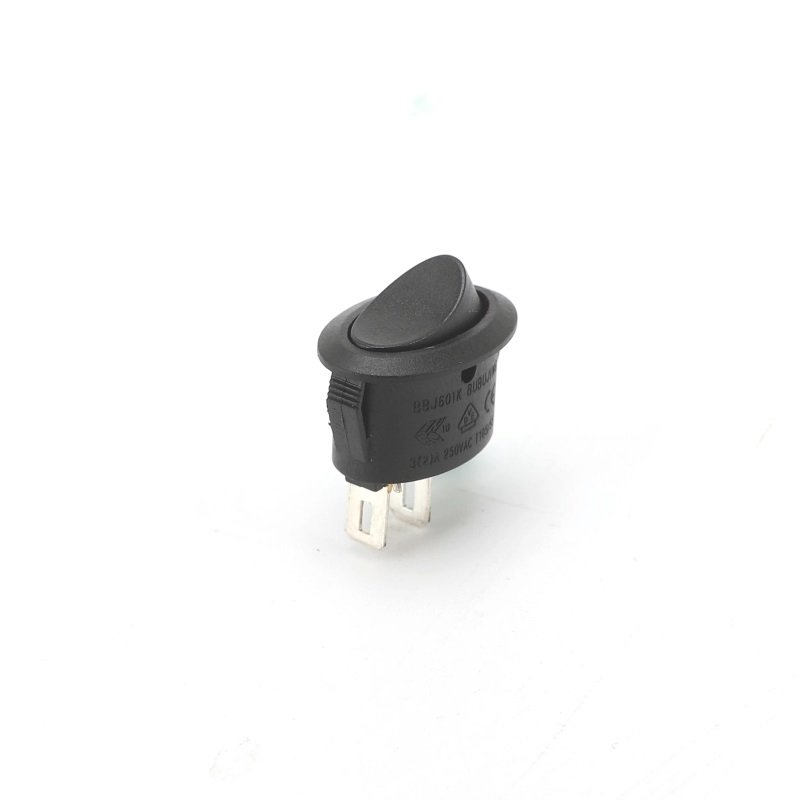

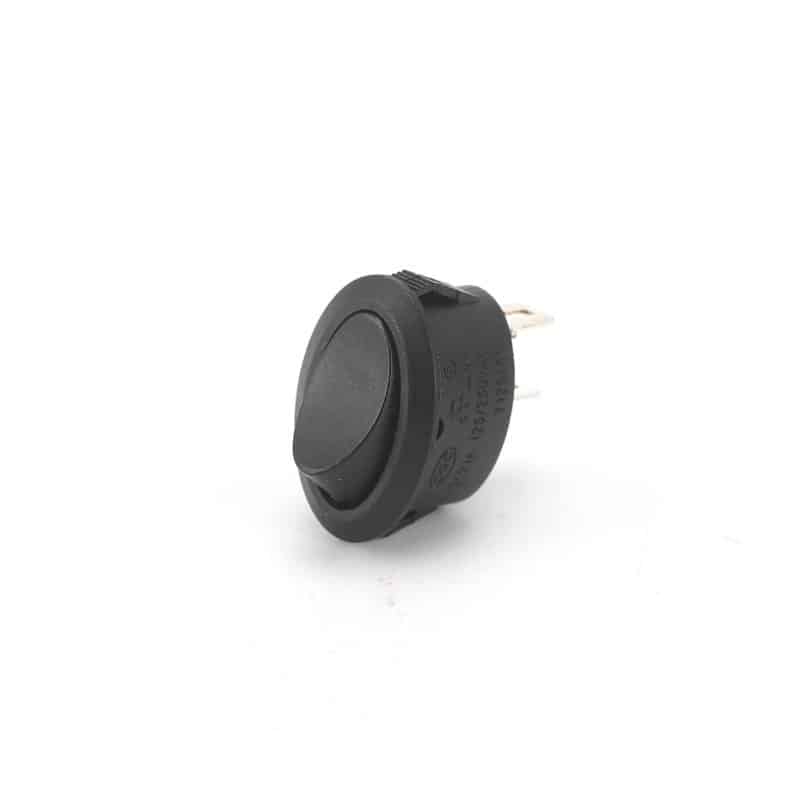

KCD11-101BK2P 12V OVAL MINI ROCKER SWITCH

KCD11-101BK2P

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
3(2)A  250VAC

3(2)A  125VAC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 85/55
  • Contact Resistance:
≦ 50mΩ

Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing the WEUP Mini Rocker Switch: KCD11-101BK2P

Are you in search of a reliable and versatile rocker switch for your B2B needs? Look no further than the WEUP Mini Rocker Switch. This compact and powerful switch offers a wide range of features and benefits that make it an ideal choice for importers, distributors, manufacturers, brands, wholesalers, and retailers. Let’s delve into the reasons why this product should be at the top of your list.

1. Pilot Light or Illumination: The WEUP Mini Rocker Switch comes with a pilot light or illumination feature. This allows for easy identification of the switch status, even in low-light conditions. Whether you need to indicate power-on or power-off, the built-in pilot light ensures clear visibility.

2. Imprinted Markings: With clear and legible imprinted markings, this rocker switch makes it effortless to identify its various functions and positions. The well-designed markings eliminate any confusion and provide a seamless user experience.

3. IP54 Splash Proof Rubber Boot Option: The WEUP Mini Rocker Switch offers an optional IP54 splash-proof rubber boot. This added protection ensures the longevity of the switch by guarding against splashes and minor water exposure. It is perfect for applications where moisture resistance is essential.

4. Quick Connect or Blade Terminals: This rocker switch provides the flexibility of quick connect or blade terminals, allowing for easy installation and connection. Whether you prefer quick connect terminals for rapid assembly or blade terminals for secure connections, the WEUP Mini Rocker Switch caters to your specific requirements.

5. Wide Range of Applications: The WEUP Mini Rocker Switch is suitable for a variety of applications. From small appliances to computers and peripherals, and even medical instrumentation, this versatile switch can handle it all. Its adaptability makes it an ideal choice for B2B buyers from various industries.

6. High Contact Rating: When it comes to electrical performance, the WEUP Mini Rocker Switch excels. With a contact rating of 3(2)A 250VAC and 3(2)A 125VAC, this switch can handle demanding electrical loads with ease. Its reliable performance ensures the smooth operation of your devices.

7. Long Electrical Life: Durability is a key factor in any switch, and the WEUP Mini Rocker Switch delivers on this front. With an electrical life of over 50,000 cycles, you can rely on this switch to perform consistently over an extended period. Its longevity reduces the need for frequent replacements, saving you time and resources.

8. Excellent Insulation Resistance: The WEUP Mini Rocker Switch boasts an insulation resistance of over 100 MΩ, ensuring optimal electrical insulation and preventing any leakage or short circuits. This feature enhances the safety and reliability of your electrical systems.

9. IP55 Degree of Protection: With an IP55 degree of protection, this switch offers excellent protection against dust and water ingress. It is designed to withstand harsh environments, making it suitable for both indoor and outdoor applications.

10. Wide Operating Temperature Range: The WEUP Mini Rocker Switch is designed to operate in a wide temperature range. With an operating temperature of T 85/55, it can withstand both high and low temperature conditions without compromising its performance.

The WEUP Mini Rocker Switch is not just another ordinary rocker switch; it is a customizable solution tailored to meet your specific needs. As China manufacturers, WEUP has its own D&R development capabilities, allowing for the creation of new models according to customer requests. This flexibility ensures that you get a switch that perfectly fits your requirements.

WEUP offers customization options such as different shapes, sizes, constructions, frames, recessed switch guards, splash-proof rubber boots, and sub-miniature sizes. These options allow for a space-saving small footprint while providing additional features to suit your application needs.

Moreover, WEUP supports custom wire harness and actuator marking requests. This level of customization ensures that the switch seamlessly integrates into your designs and meets your branding requirements. By partnering with WEUP, you gain access to a comprehensive range of options to create a unique product that stands out in the market.

When choosing a supplier for your B2B needs, reliability is paramount. With over 50 years of experience in manufacturing rocker switches, WEUP has established itself as a trusted and reputable supplier in the industry. Their commitment to quality and customer satisfaction is evident in their certifications such as CQC, CCC, CE, RoHS, ENEC, PAHS, VDE, TUV, and UL.

But don’t just take our word for it. The applications of rocker switches speak for themselves. Power supply switches for consumer electronics, PC peripherals, office/commercial equipment, air purifiers, dehumidifiers, monitors, copiers, printers, measuring devices – these are just a few examples of where rocker switches are utilized. The WEUP Mini Rocker Switch can seamlessly integrate into these applications and more.

In conclusion, the WEUP Mini Rocker Switch (KCD11-101BK2P) is the ideal choice for B2B buyers seeking a high-quality and versatile switch. Its pilot light or illumination feature, imprinted markings, IP54 splash-proof rubber boot option, quick connect or blade terminals, and wide range of applications make it a standout product in the market.

With excellent electrical performance, durability, insulation resistance, degree of protection, and a wide operating temperature range, this switch can handle demanding environments without compromising its functionality.

WEUP’s commitment to customization ensures that you get a switch tailored to your specific needs. Their extensive experience as China manufacturers sets them apart as a reliable partner in the industry.

So why wait? Choose WEUP’s Mini Rocker Switch today and experience the difference in performance and reliability. Contact us now for more information on how you can benefit from this exceptional product.

Key Benefits at a Glance:

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash-proof rubber boot option
  • Quick connect or blade terminals
  • Wide range of applications
  • High contact rating
  • Long electrical life
  • Excellent insulation resistance
  • IP55 degree of protection
  • Wide operating temperature range

Supporting Certifications:

  • CQC
  • CCC
  • CE
  • RoHS
  • ENEC
  • PAHS
  • VDE
  • TUV
  • UL

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

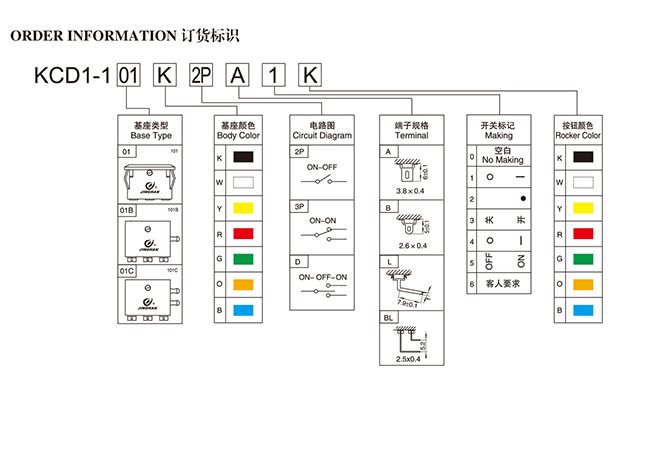

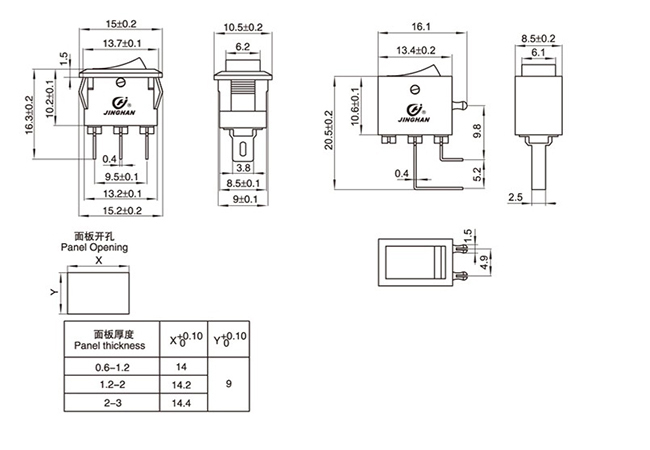

Technical Data

KCD11-101BK2P 12V OVAL MINI ROCKER SWITCH

KCD1-106K2PA1KC
Switch product typeBase TypeBase ColorCircuit DiagramTerminalMarkingButton ColorActuator
Black KCD11-101BK2P 12V OVAL MINI ROCKER SWITCHON-OFF KCD11-101BK2P 12V OVAL MINI ROCKER SWITCH 3.8*0.4 KCD11-101BK2P 12V OVAL MINI ROCKER SWITCH  KCD11-101BK2P 12V OVAL MINI ROCKER SWITCHBlack KCD11-101BK2P 12V OVAL MINI ROCKER SWITCH  KCD11-101BK2P 12V OVAL MINI ROCKER SWITCH
Blue KCD11-101BK2P 12V OVAL MINI ROCKER SWITCHON-OFF KCD11-101BK2P 12V OVAL MINI ROCKER SWITCH2.6*0.4 KCD11-101BK2P 12V OVAL MINI ROCKER SWITCH  KCD11-101BK2P 12V OVAL MINI ROCKER SWITCHBlue KCD11-101BK2P 12V OVAL MINI ROCKER SWITCH  KCD11-101BK2P 12V OVAL MINI ROCKER SWITCH
Green KCD11-101BK2P 12V OVAL MINI ROCKER SWITCHON-OFF KCD11-101BK2P 12V OVAL MINI ROCKER SWITCH1.2*0.8  KCD11-101BK2P 12V OVAL MINI ROCKER SWITCHGreen KCD11-101BK2P 12V OVAL MINI ROCKER SWITCH  KCD11-101BK2P 12V OVAL MINI ROCKER SWITCH
Orange KCD11-101BK2P 12V OVAL MINI ROCKER SWITCHON-OFF-ON KCD11-101BK2P 12V OVAL MINI ROCKER SWITCH  KCD11-101BK2P 12V OVAL MINI ROCKER SWITCHOrange KCD11-101BK2P 12V OVAL MINI ROCKER SWITCH  KCD11-101BK2P 12V OVAL MINI ROCKER SWITCH
Red KCD11-101BK2P 12V OVAL MINI ROCKER SWITCHON-OFF-(ON) KCD11-101BK2P 12V OVAL MINI ROCKER SWITCH  KCD11-101BK2P 12V OVAL MINI ROCKER SWITCHRed KCD11-101BK2P 12V OVAL MINI ROCKER SWITCH
White KCD11-101BK2P 12V OVAL MINI ROCKER SWITCH(ON)-OFF-(ON) KCD11-101BK2P 12V OVAL MINI ROCKER SWITCH  KCD11-101BK2P 12V OVAL MINI ROCKER SWITCHWhite KCD11-101BK2P 12V OVAL MINI ROCKER SWITCH
Yellow KCD11-101BK2P 12V OVAL MINI ROCKER SWITCH  KCD11-101BK2P 12V OVAL MINI ROCKER SWITCHYellow KCD11-101BK2P 12V OVAL MINI ROCKER SWITCH

Characteristics

Permissible operating frequencyMechanical20 operations/min max.
Electrical7 operations/min max.
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)100 mΩ max. (6 to 8 VDC, 1 A, voltage drop method)
Dielectric strengthBetween terminals of the same polarity2,000 VAC, 50/60 Hz, for 1 min
Between terminals of the different polarity2,000 VAC, 50/60 Hz, for 1 min
Between charged metal parts and the ground terminal4,000 VAC, 50/60 Hz, for 1 min
Vibration resistanceMalfunction10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceMalfunction300 m/s2
Destruction500 m/s2
DurabilityMechanical50,000 operations min.
Electrical10,000 operations min.
Inrush current100 A max. (8.3 ms max.)
Degree of protectionIEC IP40
Ambient operating temperature–20 to +55C (with no icing or condensation)
Ambient operating humidity45 to 85%RH

KCD11-101BK2P 12V OVAL MINI ROCKER SWITCH

Applications

Rocker Switch Applications

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.

MonitorsCopiersPrinters
KCD11-101BK2P 12V OVAL MINI ROCKER SWITCHKCD11-101BK2P 12V OVAL MINI ROCKER SWITCHKCD11-101BK2P 12V OVAL MINI ROCKER SWITCH
Power SuppliesMeasuring DevicesPower Outlet Strips
KCD11-101BK2P 12V OVAL MINI ROCKER SWITCHKCD11-101BK2P 12V OVAL MINI ROCKER SWITCHrocker switch

Related Products (4)

Download Latest Catalog

Do you supply samples? Are the Samples free?

Yes. Usually, 1-2 samples are free of charge, please support us by providing us with any express account such as DHL, FedEx, TNT, or UPS.

How is the shipping?

Our nearest port is Ningbo and Shanghai port, but if you collect the goods to ship together, we could send them to the other farther port. Usually, our customers will choose TNT, DHL, FedEx, and UPS to ship them.

How long is the delivery leading time?

Usually the samples 1-5 days to prepare. For orders, it depends on the quantity. Usually 5-15 days.

How is the packing?

For standard packing, dozens per box, 500pcs or 1000pcs per carton. We also provide you with custom box or carton packing with your logo and design.

How do you do regarding quality control?

All the products will be 100% checked before the shipment.
