  • KCD1 rocker switch 6A 250VAC rocker switch 4pin 2 position boat rocker switch
  • KCD1 rocker switch 6A 250VAC rocker switch 4pin 2 position boat rocker switch

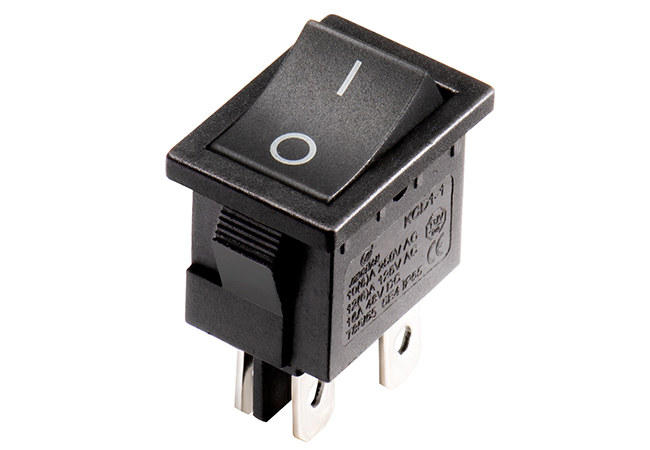

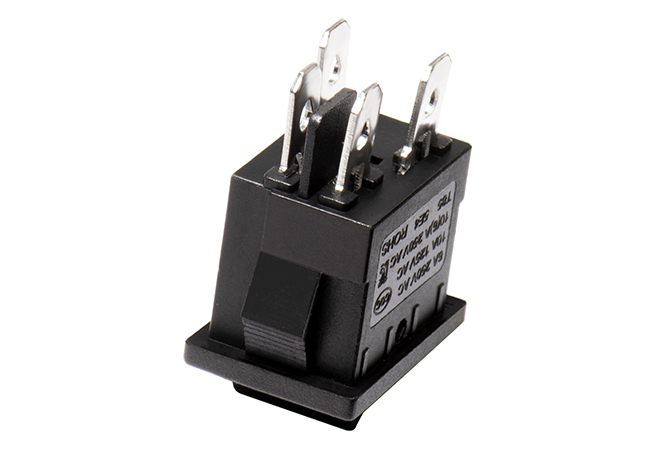

KCD1 rocker switch 6A 250VAC rocker switch 4pin 2 position boat rocker switch

KCD1

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
6A 250V AC  6(4)A 250V AC

10A 125V AC  12(6)A 125V AC

10(6) 250V AC   12GP 125V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 85/55
  • Contact Resistance:
≦ 50mΩ

Rocker switch control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing the WEUP Sub-mini Rocker Switch: Empowering Your Business with Quality and Versatility

Are you a B2B buyer searching for a reliable and versatile sub-mini rocker switch? Look no further than WEUP, a leading provider of high-quality electrical components. Our Sub-mini Rocker Switch (KCD1-104) is designed to meet the diverse needs of importers, distributors, manufacturers, brands, wholesalers, and retailers. With its exceptional features and functions, this rocker switch is a game-changer for various industries. Let’s explore why WEUP’s Sub-mini Rocker Switch should be your go-to choice:

1. Unmatched Quality and Reliability

  • Contact Rating: With a contact rating of 6A 250V AC and 10A 125V AC, our rocker switch ensures optimal performance and longevity.
  • Electrical Life: With a minimum durability of 50,000 cycles, this switch is built to withstand the test of time.
  • Insulation Resistance: Offering a minimum insulation resistance of 100 MΩ, our switch guarantees reliable operation even in demanding environments.
  • Degree of Protection: Boasting an IP55 degree of protection, it provides excellent resistance against water splashes and dust.

2. Versatile Applications

The WEUP Sub-mini Rocker Switch is incredibly versatile, making it suitable for a wide range of applications:

  • Small Appliances: From kitchen gadgets to household electronics, our switch is ideal for controlling the on/off functions of small appliances.
  • Computers and Peripherals: Whether it’s a computer monitor or a printer, our rocker switch is perfect for powering various computer peripherals.
  • Medical Instrumentation: With its reliability and precision, this switch finds its place in medical equipment, ensuring smooth operation in critical settings.

3. Customization Options

At WEUP, we understand that each business has unique requirements. That’s why we offer customization options to tailor our rocker switch to your specific needs:

  • Diverse Configurations: Our sub-mini rocker switches are available in two-position On/Off, three-position, momentary, maintained, and more, ensuring compatibility with different systems.
  • Illuminated Versions: Choose from LED and incandescent illuminated versions to enhance visibility and ease of use.
  • Sealed/Waterproof Variants: For applications that require extra protection against moisture and dust, we offer sealed and waterproof versions to meet your specifications.
  • Wire Harness and Actuator Marking: WEUP supports custom wire harness and actuator marking requests, providing you with a tailored solution that aligns with your branding requirements.

4. Unparalleled Expertise and Support

WEUP takes pride in being one of the trusted China manufacturers in the industry. Our commitment to excellence extends beyond product quality:

  • D&R Development: With our in-house Design and Research team, we can create new models according to your specific requests, ensuring a tailored solution that meets your exact requirements.
  • Reliable Partnerships: For years, WEUP has built strong relationships with suppliers, factories, and vendors. This allows us to offer competitive pricing without compromising on quality.
  • Customer Satisfaction: We prioritize customer satisfaction by delivering top-notch products and providing responsive customer support. Your success is our success.

5. Wide Range of Certifications

Rest assured that our Sub-mini Rocker Switch complies with stringent industry standards:

  • CQC, CCC, CE
  • RoHS, ENEC, PAHS
  • VDE, TUV, UL

Applications

The applications for our Sub-mini Rocker Switch are vast and varied:

  • Power Supply Switches for Consumer Electronics: From air purifiers to monitors, copiers to printers, our switch ensures reliable power control in consumer electronic devices.
  • Measuring Devices: Whether it’s a digital scale or an oscilloscope, our switch is an essential component for accurate measurements.
  • Power Outlet Strips: Enhance the functionality of power outlet strips with our reliable rocker switch for seamless on/off control.

In conclusion, WEUP’s Sub-mini Rocker Switch (KCD1-104) stands out as the go-to choice for B2B buyers like importers, distributors, manufacturers, brands, wholesalers, and retailers. Its exceptional quality, versatility, customization options, and wide range of certifications make it the perfect solution for various industries. With WEUP as your reliable partner, you can expect top-notch products backed by unparalleled expertise and support. Don’t miss out on the opportunity to enhance your business operations with our Sub-mini Rocker Switch. Contact us today to discuss your requirements and experience the WEUP difference!

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

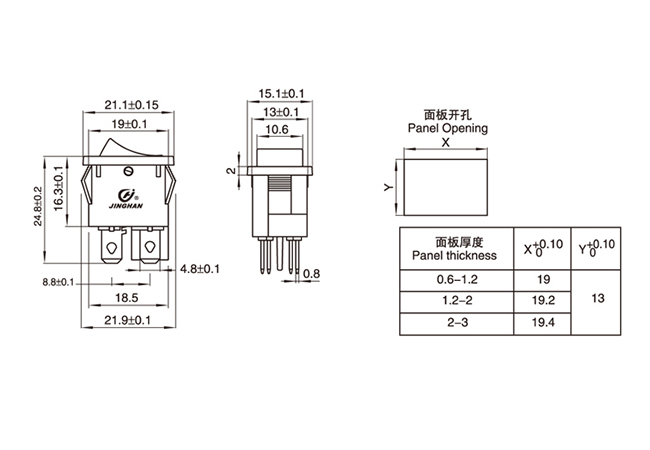

Technical Data

KCD1 rocker switch 6A 250VAC rocker switch 4pin 2 position boat rocker switch



KCD1-104K4PA1K
Switch product typeBase TypeBase ColorCircuit DiagramTerminalMarkingButton Color
Black KCD1 rocker switch 6A 250VAC rocker switch 4pin 2 position boat rocker switchON-OFF KCD1 rocker switch 6A 250VAC rocker switch 4pin 2 position boat rocker switch 4.8*0.8 KCD1 rocker switch 6A 250VAC rocker switch 4pin 2 position boat rocker switch  KCD1 rocker switch 6A 250VAC rocker switch 4pin 2 position boat rocker switchBlack KCD1 rocker switch 6A 250VAC rocker switch 4pin 2 position boat rocker switch
Blue KCD1 rocker switch 6A 250VAC rocker switch 4pin 2 position boat rocker switchON-OFF KCD1 rocker switch 6A 250VAC rocker switch 4pin 2 position boat rocker switch  KCD1 rocker switch 6A 250VAC rocker switch 4pin 2 position boat rocker switchBlue KCD1 rocker switch 6A 250VAC rocker switch 4pin 2 position boat rocker switch
Green KCD1 rocker switch 6A 250VAC rocker switch 4pin 2 position boat rocker switch  KCD1 rocker switch 6A 250VAC rocker switch 4pin 2 position boat rocker switchGreen KCD1 rocker switch 6A 250VAC rocker switch 4pin 2 position boat rocker switch
Orange KCD1 rocker switch 6A 250VAC rocker switch 4pin 2 position boat rocker switch  KCD1 rocker switch 6A 250VAC rocker switch 4pin 2 position boat rocker switchOrange KCD1 rocker switch 6A 250VAC rocker switch 4pin 2 position boat rocker switch
Red KCD1 rocker switch 6A 250VAC rocker switch 4pin 2 position boat rocker switch  KCD1 rocker switch 6A 250VAC rocker switch 4pin 2 position boat rocker switchRed KCD1 rocker switch 6A 250VAC rocker switch 4pin 2 position boat rocker switch
White KCD1 rocker switch 6A 250VAC rocker switch 4pin 2 position boat rocker switch  KCD1 rocker switch 6A 250VAC rocker switch 4pin 2 position boat rocker switchWhite KCD1 rocker switch 6A 250VAC rocker switch 4pin 2 position boat rocker switch
Yellow KCD1 rocker switch 6A 250VAC rocker switch 4pin 2 position boat rocker switch  KCD1 rocker switch 6A 250VAC rocker switch 4pin 2 position boat rocker switchYellow KCD1 rocker switch 6A 250VAC rocker switch 4pin 2 position boat rocker switch

Characteristics

Permissible operating frequencyMechanical20 operations/min max.
Electrical7 operations/min max.
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)100 mΩ max. (6 to 8 VDC, 1 A, voltage drop method)
Dielectric strengthBetween terminals of the same polarity2,000 VAC, 50/60 Hz, for 1 min
Between terminals of the different polarity2,000 VAC, 50/60 Hz, for 1 min
Between charged metal parts and the ground terminal4,000 VAC, 50/60 Hz, for 1 min
Vibration resistanceMalfunction10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceMalfunction300 m/s2
Destruction500 m/s2
DurabilityMechanical50,000 operations min.
Electrical10,000 operations min.
Inrush current100 A max. (8.3 ms max.)
Degree of protectionIEC IP40
Ambient operating temperature–20 to +55C (with no icing or condensation)
Ambient operating humidity45 to 85%RH

KCD1 rocker switch 6A 250VAC rocker switch 4pin 2 position boat rocker switch

Applications

Rocker Switch Applications

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.

MonitorsCopiersPrinters
KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchKCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchKCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switch
Power SuppliesMeasuring DevicesPower Outlet Strips
KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchKCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switchrocker switch

Related Products (4)

Download Latest Catalog

Do you supply samples? Are the Samples free?

Yes. Usually, 1-2 samples are free of charge, please support us by providing us with any express account such as DHL, FedEx, TNT, or UPS.

How is the shipping?

Our nearest port is Ningbo and Shanghai port, but if you collect the goods to ship together, we could send them to the other farther port. Usually, our customers will choose TNT, DHL, FedEx, and UPS to ship them.

How long is the delivery leading time?

Usually the samples 1-5 days to prepare. For orders, it depends on the quantity. Usually 5-15 days.

How is the packing?

For standard packing, dozens per box, 500pcs or 1000pcs per carton. We also provide you with custom box or carton packing with your logo and design.

How do you do regarding quality control?

All the products will be 100% checked before the shipment.
