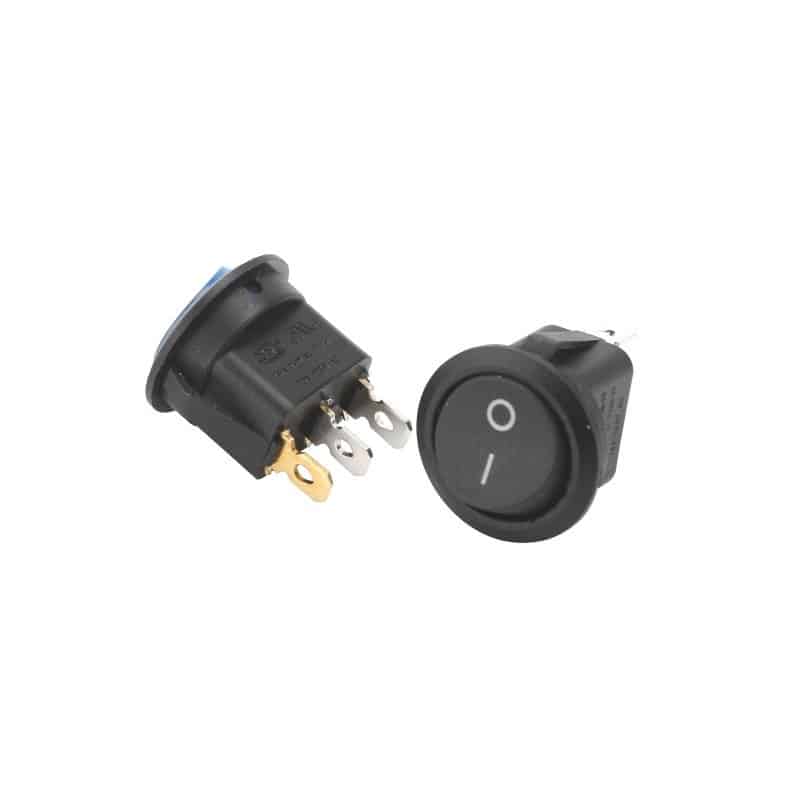

KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switch

KCD1-106

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
6A 250V AC  6(4)A 250V AC

10A 125V AC  12(6)A 125V AC

10(6) 250V AC   12GP 125V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 105/55
  • Dielectric Resistance:
≦ 50MΩ

Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing the WEUP Sub-mini Rocker Switch: The Perfect Choice for B2B Buyers

Are you a B2B buyer looking a reliable and versatile sub-mini rocker? Look further than the WEUP Sub-mini Rocker Switch. With its outstanding features, impeccable performance, and exceptional customization options, this switch is the ideal solution for importers, distributors, manufacturers, brands, wholesalers, and retailers. Let’s delve into the compelling reasons why this product should be at the top of your list.

1. Versatile and Reliable Functionality

  • The WEUP Sub-mini Rocker Switch offers multiple configurations to suit a wide range of applications. Whether you need a two-position On/Off switch or a three-position switch, this product has you covered.
  • It provides excellent control over the on/off functions of various home appliances, computers, peripherals, medical instrumentation, and small appliances.
  • With its robust design and high electrical life of over 50,000 cycles, this switch ensures long-lasting performance and reliability.

2. Customization Options

  • At WEUP, we understand that every customer has unique requirements. That’s why our sub-mini rocker switches are highly customizable.
  • Our in-house D&R development capabilities allow us to create new models according to your specific requests. From shapes and sizes to construction and frames, we can tailor the switch to your exact needs.
  • We also offer recessed switch guards to prevent accidental actuation, splash-proof rubber boots for IP54 splash-proof protection, and sub-miniature sizes for space-saving installations.

3. Wide Range of Configurations

  • The WEUP Sub-mini Rocker Switch comes in various configurations to cater to different applications. It is available with SPST, SPDT, DPST, DPDT, 3PDT, and 4DPT functionality.
  • You can choose between illuminated (LED and incandescent) and sealed/waterproof versions based on your specific requirements.
  • These versatile options ensure that you can find the perfect switch for your needs without compromising on quality or functionality.

4. High-Quality Construction

  • Our sub-mini rocker switches are meticulously crafted using top-grade materials to guarantee durability and longevity.
  • The switch has imprinted markings for easy identification and operation.
  • With an IP55 degree of protection, these switches are resistant to dust and water splashes, making them suitable for various environments.

5. Exceptional Performance

  • The WEUP Sub-mini Rocker Switch boasts an impressive contact rating of 6A 250V AC and 10A 125V AC.
  • It has a high insulation resistance of over 100 MΩ and a dielectric resistance of less than 50MΩ.
  • These switches can withstand operating temperatures ranging from T105/55 and are designed to handle inrush currents of up to 100A.

6. Recognized Certifications

  • Our sub-mini rocker switches adhere to international standards and have obtained several certifications such as CQC, CCC, CE, RoHS, ENEC, PAHS, VDE, TUV, and UL.
  • These certifications serve as a testament to the product’s compliance with safety and quality regulations.

Applications

  • The WEUP Sub-mini Rocker Switch finds applications in a wide range of industries:
    • Consumer electronics: Power supply switches for air purifiers, dehumidifiers, monitors, copiers, printers, etc.
    • PC peripherals: Ideal for controlling power supplies in computer peripherals like monitors and printers.
    • Office/commercial equipment: Suitable for power outlet strips and measuring devices.

In conclusion, the WEUP Sub-mini Rocker Switch is the perfect choice for B2B buyers seeking reliable and versatile switches. Its customizable options, exceptional performance, and wide range of configurations make it an excellent investment for importers, distributors, manufacturers, brands, wholesalers, and retailers. Trust WEUP as your reliable partner in providing top-quality switches that meet your specific requirements. Contact us today to explore our product offerings!

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switch

KCD1-202K2PA1KC
Switch product typeBase TypeBase ColorCircuit DiagramTerminalMarkingButton ColorActuator
Black KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchON-OFF KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switch 4.8*0.8 KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switch  KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchBlack KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switch  KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switch
Blue KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchON-OFF KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switch3.2*0.8 KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switch  KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchBlue KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switch  KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switch
Green KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchON-OFF KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switch1.2*0.8 KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switch  KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchGreen KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switch  KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switch
Orange KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchON-OFF-ON KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switch  KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchOrange KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switch  KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switch
Red KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchON-OFF-(ON) KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switch  KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchRed KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switch
White KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switch(ON)-OFF-(ON) KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switch  KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchWhite KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switch
Yellow KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switch  KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchYellow KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switch

Characteristics

Permissible operating frequencyMechanical20 operations/min max.
Electrical7 operations/min max.
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)100 mΩ max. (6 to 8 VDC, 1 A, voltage drop method)
Dielectric strengthBetween terminals of the same polarity2,000 VAC, 50/60 Hz, for 1 min
Between terminals of the different polarity2,000 VAC, 50/60 Hz, for 1 min
Between charged metal parts and the ground terminal4,000 VAC, 50/60 Hz, for 1 min
Vibration resistanceMalfunction10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceMalfunction300 m/s2
Destruction500 m/s2
DurabilityMechanical50,000 operations min.
Electrical10,000 operations min.
Inrush current100 A max. (8.3 ms max.)
Degree of protectionIEC IP40
Ambient operating temperature–20 to +55C (with no icing or condensation)
Ambient operating humidity45 to 85%RH

KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switch

Applications

Rocker Switch Applications

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.

MonitorsCopiersPrinters
KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchKCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchKCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switch
Power SuppliesMeasuring DevicesPower Outlet Strips
KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchKCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switchrocker switch
