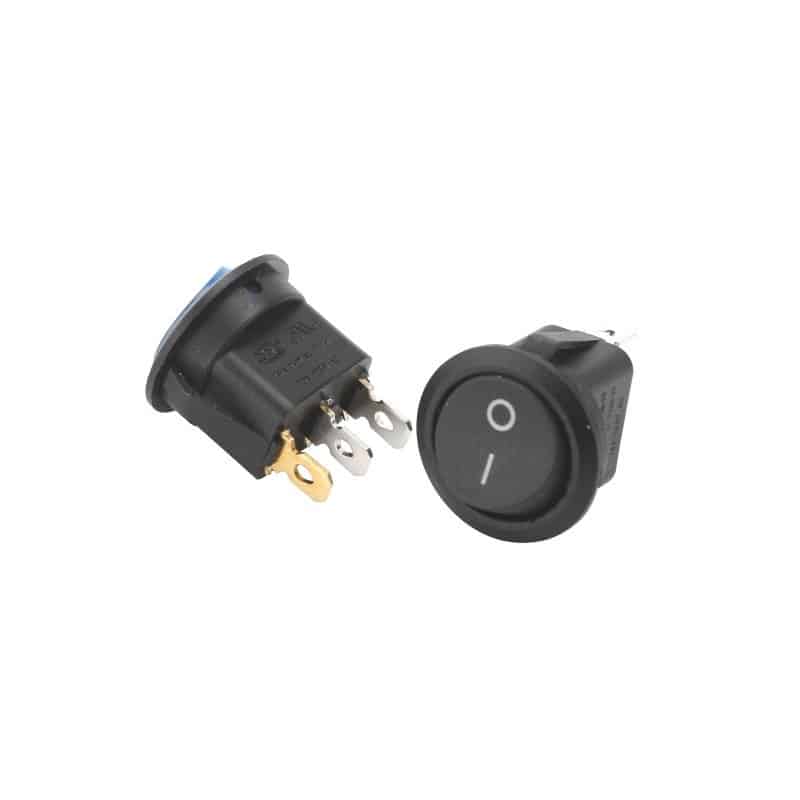

KCD1-202 led rocker switch round rocker switch 6 amp

KCD1-202

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
6A 250V AC  6(4)A 250V AC

10A 125V AC  12(6)A 125V AC

10(6) 250V AC   12GP 125V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 105/55
  • Contact Resistance:
≦ 50mΩ

Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing WEUP’s Sub-mini Rocker Switch

The WEUP Sub-mini Rocker Switch is a highly versatile and reliable electrical component that is specifically designed to control the on/off functions of various home appliances, computers, peripherals, and medical instrumentation. As a B2B buyer like an importer, distributor, manufacturer, brand, wholesaler, or retailer, you’ll find this product to be an excellent addition to your offerings. Let’s explore the compelling features and benefits that make the WEUP Sub-mini Rocker Switch stand out from the competition.

1. High-Quality Construction and Durability

  • The Sub-mini Rocker Switch is built to last with a sturdy construction and high-quality materials.
  • With a mechanical durability of 50,000 operations and an electrical durability of 10,000 operations, this switch ensures long-lasting performance.
  • It can withstand vibration up to 55 Hz and shock up to 300 m/s2, making it suitable for demanding environments.

2. Wide Range of Applications

  • The Sub-mini Rocker Switch is perfect for a variety of applications, including small appliances, computers, peripherals, and medical instrumentation.
  • Whether you need to control the power supply switches for consumer electronics or office/commercial equipment, this switch is a reliable choice.
  • It is commonly used in air purifiers, monitors, printers, copiers, power outlet strips, and measuring devices.

3. Customizable Options

  • WEUP understands the importance of meeting specific customer requirements. They offer customization options for their rocker switches.
  • With their own research and development capabilities, WEUP can create new models according to your requests.
  • You can customize the shape, size, construction, frames, and even opt for recessed switch guards to prevent accidental actuation.
  • If you require a space-saving solution, WEUP offers sub-miniature sizes that have a small footprint.

4. Pilot Light or Illumination

  • The Sub-mini Rocker Switch is available in illuminated versions with LED or incandescent lights.
  • This feature enhances user experience by providing visual feedback on the switch’s status.
  • The illumination can help users identify whether the appliance or equipment is on or off with just a glance.

5. Imprinted Markings

  • WEUP’s Sub-mini Rocker Switch comes with imprinted markings that make it easy to identify the switch’s functionality.
  • The clear and legible markings help users operate the switch accurately and conveniently.

6. Quick Connect or Blade Terminals

  • This switch offers flexibility with its quick connect or blade terminals.
  • You can choose the terminal type that best suits your application needs.
  • The quick connect terminals enable easy and efficient installation.

7. IP54 Splash Proof Rubber Boot Option

  • For applications that require protection against splashes or contaminants, the Sub-mini Rocker Switch offers an IP54 splash-proof rubber boot option.
  • This additional feature ensures the switch remains functional and safe in environments where moisture or debris may be present.

8. Excellent Electrical Performance

  • The Sub-mini Rocker Switch has a contact rating of 6A 250V AC and 10A 125V AC, making it suitable for various power requirements.
  • It has low contact resistance of less than 50mΩ, ensuring efficient electrical conductivity.
  • With insulation resistance of at least 100 MΩ and dielectric strength of up to 4,000 VAC, this switch provides reliable electrical performance.

9. Compliance with International Standards

  • WEUP’s Sub-mini Rocker Switch is compliant with several international standards such as CQC, CCC, CE, RoHS, ENEC, PAHS, VDE, TUV, and UL.
  • This ensures that the product meets strict quality and safety regulations.

By choosing the WEUP-mini Rock Switch, you from its exceptional quality, durability, and customization options. The wide range of applications supports makes it a valuable for various industries. Whether you a China manufacturer, supplier, factory, wholesaler, or vendor this product is an excellent addition your.

WEUP’s dedication to customer satisfaction evident in their ability to customize and provide support for specific wire act marking requests. Their commitment to meeting customer requirements sets them apart from competitors in the market.

In conclusion the WEUP Sub-mini Rock Switch is a reliable and versatile electrical component that offers exceptional performance and durability Its customizable, wide of applications, and compliance with international standards make it ideal choice for B2B buyers like importers, distributors,, brands, wholesalers, and retailers. Choose WEUP high-quality products that meet your specific needs.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

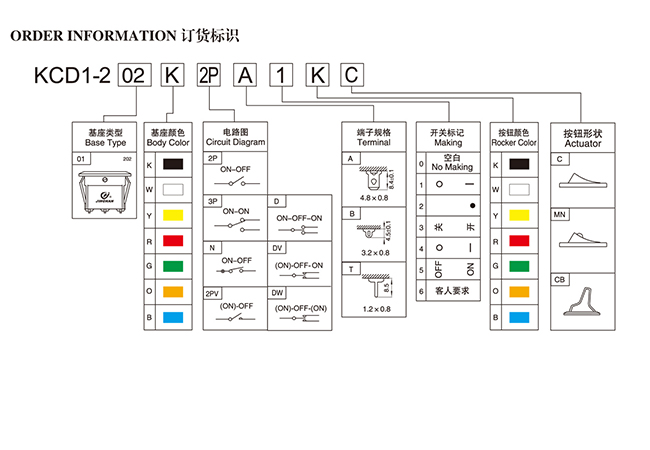

Technical Data

KCD1-202 led rocker switch round rocker switch 6 amp

KCD1-202K2PA1KC
Switch product typeBase TypeBase ColorCircuit DiagramTerminalMarkingButton ColorActuator
Black KCD1-202 led rocker switch round rocker switch 6 ampON-OFF KCD1-202 led rocker switch round rocker switch 6 amp 4.8*0.8 KCD1-202 led rocker switch round rocker switch 6 amp  KCD1-202 led rocker switch round rocker switch 6 ampBlack KCD1-202 led rocker switch round rocker switch 6 amp  KCD1-202 led rocker switch round rocker switch 6 amp
Blue KCD1-202 led rocker switch round rocker switch 6 ampON-OFF KCD1-202 led rocker switch round rocker switch 6 amp3.2*0.8 KCD1-202 led rocker switch round rocker switch 6 amp  KCD1-202 led rocker switch round rocker switch 6 ampBlue KCD1-202 led rocker switch round rocker switch 6 amp  KCD1-202 led rocker switch round rocker switch 6 amp
Green KCD1-202 led rocker switch round rocker switch 6 ampON-OFF KCD1-202 led rocker switch round rocker switch 6 amp1.2*0.8 KCD1-202 led rocker switch round rocker switch 6 amp  KCD1-202 led rocker switch round rocker switch 6 ampGreen KCD1-202 led rocker switch round rocker switch 6 amp  KCD1-202 led rocker switch round rocker switch 6 amp
Orange KCD1-202 led rocker switch round rocker switch 6 ampON-OFF-ON KCD1-202 led rocker switch round rocker switch 6 amp  KCD1-202 led rocker switch round rocker switch 6 ampOrange KCD1-202 led rocker switch round rocker switch 6 amp  KCD1-202 led rocker switch round rocker switch 6 amp
Red KCD1-202 led rocker switch round rocker switch 6 ampON-OFF-(ON) KCD1-202 led rocker switch round rocker switch 6 amp  KCD1-202 led rocker switch round rocker switch 6 ampRed KCD1-202 led rocker switch round rocker switch 6 amp
White KCD1-202 led rocker switch round rocker switch 6 amp(ON)-OFF-(ON) KCD1-202 led rocker switch round rocker switch 6 amp  KCD1-202 led rocker switch round rocker switch 6 ampWhite KCD1-202 led rocker switch round rocker switch 6 amp
Yellow KCD1-202 led rocker switch round rocker switch 6 amp  KCD1-202 led rocker switch round rocker switch 6 ampYellow KCD1-202 led rocker switch round rocker switch 6 amp

Characteristics

Permissible operating frequencyMechanical20 operations/min max.
Electrical7 operations/min max.
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)100 mΩ max. (6 to 8 VDC, 1 A, voltage drop method)
Dielectric strengthBetween terminals of the same polarity2,000 VAC, 50/60 Hz, for 1 min
Between terminals of the different polarity2,000 VAC, 50/60 Hz, for 1 min
Between charged metal parts and the ground terminal4,000 VAC, 50/60 Hz, for 1 min
Vibration resistanceMalfunction10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceMalfunction300 m/s2
Destruction500 m/s2
DurabilityMechanical50,000 operations min.
Electrical10,000 operations min.
Inrush current100 A max. (8.3 ms max.)
Degree of protectionIEC IP40
Ambient operating temperature–20 to +55C (with no icing or condensation)
Ambient operating humidity45 to 85%RH

KCD1-202 led rocker switch round rocker switch 6 amp

Applications

Rocker Switch Applications

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.

MonitorsCopiersPrinters
KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchKCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchKCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switch
Power SuppliesMeasuring DevicesPower Outlet Strips
KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchKCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switchrocker switch
