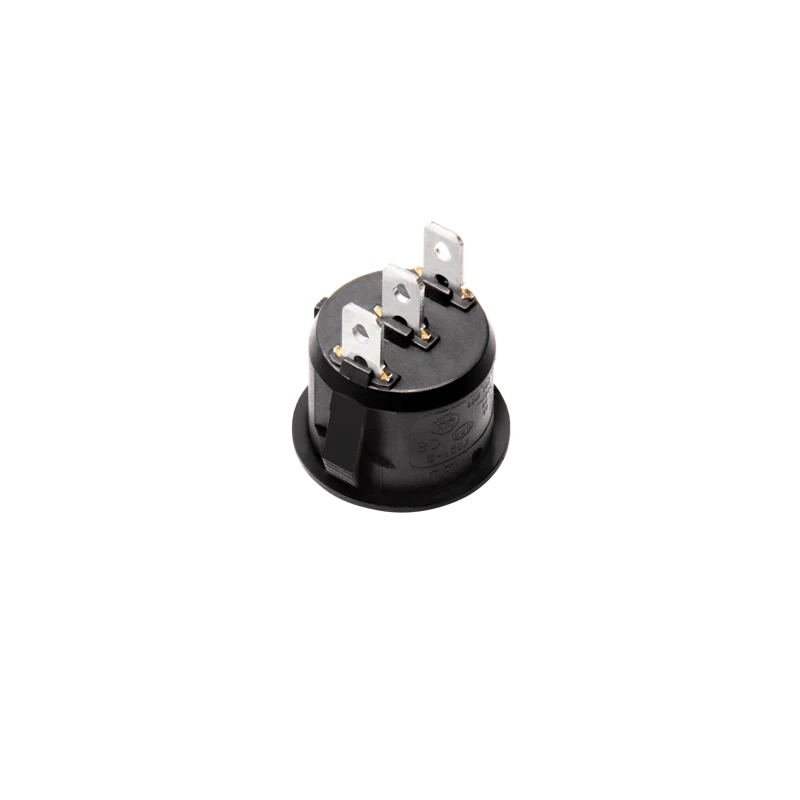

KCD1-201-D-KK On Off On Rocker Switch

KCD1-201-D-KK

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
6A 250V AC  6(4)A 250V AC

10A 125V AC  12(6)A 125V AC

10(6) 250V AC   12GP 125V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 85/55
  • Contact Resistance:
≦ 50mΩ

Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing the WEUP On Off On Rocker Switch

The WEUP On Off On Rocker Switch, with the model number KCD1-201-D-KK, is a versatile and reliable switch that offers excellent control over the on/off functions of various appliances and equipment. Whether you are an importer, distributor, manufacturer, brand, wholesaler, or retailer, this switch is a must-have for your business. Let’s dive into the features and benefits that make this product stand out:

1. Pilot Light or Illumination: The WEUP On Off On Rocker Switch is equipped with a pilot light or illumination feature. This allows for easy identification of the switch’s status, even in low-light conditions. It ensures that users can quickly determine whether the switch is on or off, enhancing convenience and safety.

2. Imprinted Markings: The switch comes with imprinted markings that clearly indicate its functions and positions. This feature eliminates any confusion and ensures smooth operation. Users can easily identify the desired switch position, thanks to the clear and durable markings.

3. IP54 Splash Proof Rubber Boot Option: For applications where protection against splashes and moisture is crucial, the WEUP On Off On Rocker Switch offers an IP54 splash-proof rubber boot option. This added level of protection ensures the switch’s durability and reliability, even in challenging environments.

4. Quick Connect or Blade Terminals: The switch provides the option of quick connect or blade terminals, allowing for easy and efficient installation. The choice between these two terminal types enables flexibility in connecting the switch to various electrical systems.

5. Contact Rating: The WEUP On Off On Rocker Switch boasts impressive contact ratings, making it suitable for a wide range of applications. With a contact rating of 6A 250V AC and 10A 125V AC, this switch can handle the power requirements of small appliances, computers and peripherals, and medical instrumentation with ease.

6. Long Electrical Life: This rocker switch is designed to withstand frequent use over an extended period. With an electrical life of over 50,000 cycles, it ensures reliable performance and longevity.

7. High Insulation Resistance: The switch offers excellent insulation resistance of over 100 MΩ. This feature enhances safety by reducing the risk of electrical leakage and ensures reliable operation in various electrical systems.

8. IP55 Degree of Protection: The WEUP On Off On Rocker Switch has a degree of protection rated at IP55. This means it is dust-resistant and protected against water jets from any direction, making it suitable for both indoor and outdoor applications.

9. Wide Operating Temperature Range: With an operating temperature range of T 85/55, this switch can function effectively in different temperature conditions. It can withstand both high and low temperatures, making it suitable for diverse environments.

10. Low Contact Resistance: The switch exhibits low contact resistance of less than 50mΩ, ensuring efficient power transmission and minimizing energy loss.

The WEUP On Off On Rocker Switch is not only packed with impressive features but also offers customization options to meet your specific requirements. As China manufacturers, WEUP has its own D&R development, allowing for the creation of new models tailored to your requests. Whether you need different shapes, sizes, constructions, frames, recessed switch guards, or splash-proof rubber boots, WEUP can deliver a customized solution that meets your needs.

Moreover, WEUP can support custom wire harness and actuator marking requests to ensure your designs align with your branding requirements. This level of customization and support sets WEUP apart as a reliable partner for your business needs.

In conclusion, the WEUP On Off On Rocker Switch (KCD1-201-D-KK) is an exceptional choice for B2B buyers like importers, distributors, manufacturers, brands, wholesalers, and retailers. Its wide range of features and benefits make it suitable for various applications in industries such as small appliances, computers and peripherals, and medical instrumentation. With WEUP’s commitment to customization and quality, you can trust that this rocker switch will meet your exact specifications and deliver reliable performance. Contact WEUP today to explore the possibilities and benefit from their expertise as industry-leading suppliers.



Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

KCD1-201-D-KK On Off On Rocker Switch

KCD1-106K2PA1KC
Switch product typeBase TypeBase ColorCircuit DiagramTerminalMarkingButton ColorActuator
Black KCD1-201-D-KK On Off On Rocker SwitchON-OFF KCD1-201-D-KK On Off On Rocker Switch 4.8*0.8 KCD1-201-D-KK On Off On Rocker Switch  KCD1-201-D-KK On Off On Rocker SwitchBlack KCD1-201-D-KK On Off On Rocker Switch  KCD1-201-D-KK On Off On Rocker Switch
Blue KCD1-201-D-KK On Off On Rocker SwitchON-OFF KCD1-201-D-KK On Off On Rocker Switch3.2*0.8 KCD1-201-D-KK On Off On Rocker Switch  KCD1-201-D-KK On Off On Rocker SwitchBlue KCD1-201-D-KK On Off On Rocker Switch  KCD1-201-D-KK On Off On Rocker Switch
Green KCD1-201-D-KK On Off On Rocker SwitchON-OFF KCD1-201-D-KK On Off On Rocker Switch1.2*0.8 KCD1-201-D-KK On Off On Rocker Switch  KCD1-201-D-KK On Off On Rocker SwitchGreen KCD1-201-D-KK On Off On Rocker Switch  KCD1-201-D-KK On Off On Rocker Switch
Orange KCD1-201-D-KK On Off On Rocker SwitchON-OFF-ON KCD1-201-D-KK On Off On Rocker Switch  KCD1-201-D-KK On Off On Rocker SwitchOrange KCD1-201-D-KK On Off On Rocker Switch  KCD1-201-D-KK On Off On Rocker Switch
Red KCD1-201-D-KK On Off On Rocker SwitchON-OFF-(ON) KCD1-201-D-KK On Off On Rocker Switch  KCD1-201-D-KK On Off On Rocker SwitchRed KCD1-201-D-KK On Off On Rocker Switch
White KCD1-201-D-KK On Off On Rocker Switch(ON)-OFF-(ON) KCD1-201-D-KK On Off On Rocker Switch  KCD1-201-D-KK On Off On Rocker SwitchWhite KCD1-201-D-KK On Off On Rocker Switch
Yellow KCD1-201-D-KK On Off On Rocker Switch  KCD1-201-D-KK On Off On Rocker SwitchYellow KCD1-201-D-KK On Off On Rocker Switch
