  • KCD1-311 current switch 3pins Lighted Rocker Switch
  • KCD1-311 current switch 3pins Lighted Rocker Switch
  • KCD1-311 current switch 3pins Lighted Rocker Switch
  • KCD1-311 current switch 3pins Lighted Rocker Switch

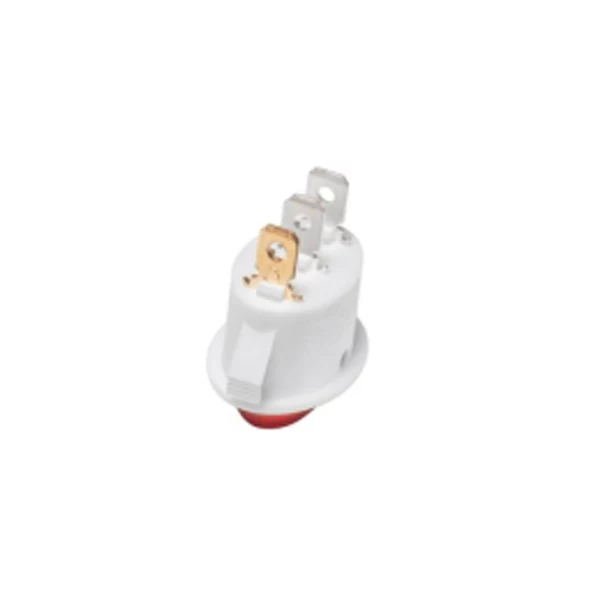

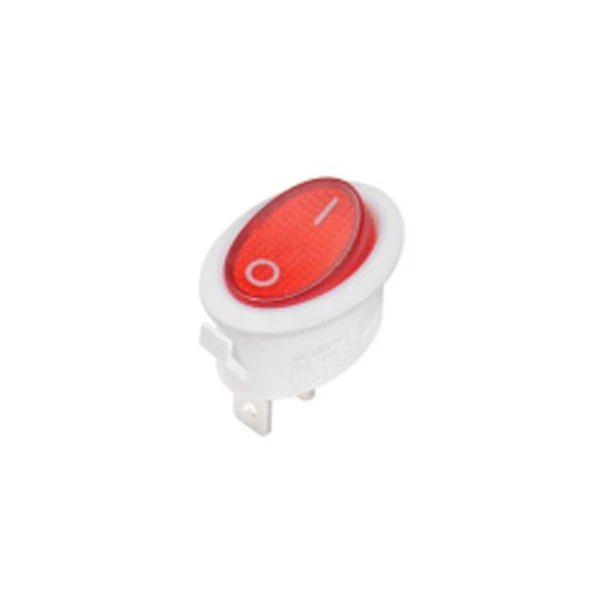

KCD1-311 current switch 3pins Lighted Rocker Switch

KCD1-311

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
6A 250V AC  6(4)A 250V AC

10A 125V AC   12(6) 125V AC

10(6) 250V AC  12GP 125V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 85/55
  • ContactResistance:
≦ 50mΩ

The new switch model is both feature-rich and cost-efficient, with multiple options to be tailored to suit any application. It is evident that the craftsmanship in this product’s design is meticulous and offers impressive features and benefits such as a pilot light or illumination, imprinted markings, IP54 splash proof rubber boot option, quick connect or blade terminals, 6A 250V AC 6(4)A 250V AC 10A 125V AC 12(6)A 125V AC 10(6) 250V AC 12GP 125V AC electrical life, insulation resistance of 100 MΩ and degree of protection of IP 55. With all these features coupled with its wide range of applications in small appliances, computers/peripherals and medical instrumentation, it’s easy to see why this product has been well received by customers on market. Moving forward, we will continually strive to uphold product excellence while developing more cost-effective solutions for our clients.

Read More

Product Features

Introducing the Lighted Rocker Switch by WEUP (Model: KCD1-311) – an exceptional product that is tailor-made for B2B buyers like importers, distributors, manufacturers, brands, wholesalers, and retailers. With its impressive features and functions, this switch stands out as a top choice in the market. Let’s delve into the compelling reasons why this product deserves your attention:

1. Pilot Light or Illumination: The Lighted Rocker Switch comes with a pilot light or illumination feature, providing visual feedback and enhancing user experience. This feature ensures that users can easily identify whether the switch is on or off, even in low-light conditions.

2. Imprinted Markings: The switch is designed with imprinted markings, facilitating clear and easy identification of its functions. This feature eliminates confusion and enhances usability, making it an ideal choice for various applications.

3. IP54 Splash Proof Rubber Boot Option: WEUP understands the importance of durability and reliability in demanding environments. That’s why the Lighted Rocker Switch offers an optional IP54 splash-proof rubber boot. This feature provides extra protection against water splashes, making it suitable for a wide range of applications, including outdoor or damp environments.

4. Quick Connect or Blade Terminals: This switch offers flexibility with its quick connect or blade terminals, allowing for easy installation and connection. Whether you prefer quick connect or blade terminals, this product caters to your specific requirements.

5. Wide Range of Applications: The Lighted Rocker Switch is versatile and can be utilized in various industries and applications. Some notable applications include:

  • Small appliances: This switch is perfect for small appliances such as air purifiers, dehumidifiers, and more.
  • Computers and peripherals: Whether it’s monitors, copiers, printers, or power supplies, this switch is a reliable choice for computer-related equipment.
  • Medical instrumentation: The switch’s durability and functionality make it suitable for medical devices and instrumentation.

6. High Contact Rating: With a contact rating of 6A 250V AC and 10A 125V AC, this switch can handle electrical loads efficiently and reliably. Whether you’re dealing with high voltage or current requirements, this switch is up to the task.

7. Long Electrical Life: The Lighted Rocker Switch boasts an electrical life of over 50,000 cycles, ensuring durability and longevity. This longevity makes it a cost-effective solution for businesses, reducing the need for frequent replacements.

8. Excellent Insulation Resistance: With insulation resistance of over 100 MΩ, this switch provides a high level of electrical insulation. This feature ensures safety and reliability, minimizing the risk of electrical failures or accidents.

9. Impressive Degree of Protection: The switch offers a degree of protection of IP55, safeguarding against dust particles and water splashes. This protection ensures that the switch can withstand various environmental conditions, making it suitable for both indoor and outdoor applications.

In conclusion, WEUP’s Lighted Rocker Switch (Model: KCD1-311) is a feature-rich and cost-efficient product that exceeds expectations in terms of design, functionality, and versatility. Its pilot light or illumination, imprinted markings, IP54 splash-proof rubber boot option, quick connect or blade terminals, high contact rating, long electrical life, excellent insulation resistance, and impressive degree of protection make it an outstanding choice for buyers in the B2B market.

The craftsmanship and attention to detail in this product are evident, making it highly sought after by importers, distributors, manufacturers, brands, wholesalers, and retailers. As China manufacturers with a reputation for excellence, WEUP prioritizes delivering reliable products that meet the highest industry standards.

To satisfy your business needs, WEUP offers direct access to their manufacturing facilities through a network of trusted suppliers and vendors. You can benefit from their expertise and take advantage of competitive pricing options. By choosing WEUP’s Lighted Rocker Switch, you are investing in a product that combines quality, durability, and affordability.

Make a smart choice for your business today and join countless satisfied customers who have embraced the reliability and functionality of WEUP’s Lighted Rocker Switch (Model: KCD1-311).

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

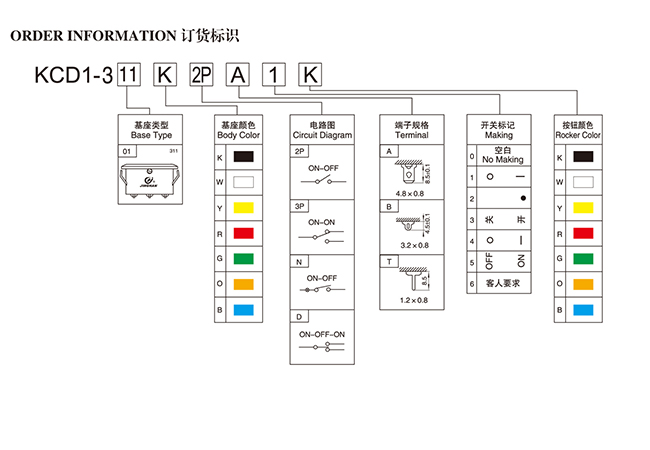

Technical Data

KCD1-311 current switch 3pins Lighted Rocker Switch



KCD1-311K2PA1KC
Switch product typeBase TypeBase ColorCircuit DiagramTerminalMarkingButton ColorActuator
Black KCD1-311 current switch 3pins Lighted Rocker SwitchON-OFF KCD1-311 current switch 3pins Lighted Rocker Switch 4.8*0.8 KCD1-311 current switch 3pins Lighted Rocker Switch  KCD1-311 current switch 3pins Lighted Rocker SwitchBlack KCD1-311 current switch 3pins Lighted Rocker Switch  KCD1-311 current switch 3pins Lighted Rocker Switch
Blue KCD1-311 current switch 3pins Lighted Rocker SwitchON-OFF KCD1-311 current switch 3pins Lighted Rocker Switch3.2*0.8 KCD1-311 current switch 3pins Lighted Rocker Switch  KCD1-311 current switch 3pins Lighted Rocker SwitchBlue KCD1-311 current switch 3pins Lighted Rocker Switch  KCD1-311 current switch 3pins Lighted Rocker Switch
Green KCD1-311 current switch 3pins Lighted Rocker SwitchON-OFF KCD1-311 current switch 3pins Lighted Rocker Switch1.2*0.8 KCD1-311 current switch 3pins Lighted Rocker Switch  KCD1-311 current switch 3pins Lighted Rocker SwitchGreen KCD1-311 current switch 3pins Lighted Rocker Switch  KCD1-311 current switch 3pins Lighted Rocker Switch
Orange KCD1-311 current switch 3pins Lighted Rocker SwitchON-OFF-ON KCD1-311 current switch 3pins Lighted Rocker Switch  KCD1-311 current switch 3pins Lighted Rocker SwitchOrange KCD1-311 current switch 3pins Lighted Rocker Switch  KCD1-311 current switch 3pins Lighted Rocker Switch
Red KCD1-311 current switch 3pins Lighted Rocker SwitchON-OFF-(ON) KCD1-311 current switch 3pins Lighted Rocker Switch  KCD1-311 current switch 3pins Lighted Rocker SwitchRed KCD1-311 current switch 3pins Lighted Rocker Switch
White KCD1-311 current switch 3pins Lighted Rocker Switch(ON)-OFF-(ON) KCD1-311 current switch 3pins Lighted Rocker Switch  KCD1-311 current switch 3pins Lighted Rocker SwitchWhite KCD1-311 current switch 3pins Lighted Rocker Switch
Yellow KCD1-311 current switch 3pins Lighted Rocker Switch  KCD1-311 current switch 3pins Lighted Rocker SwitchYellow KCD1-311 current switch 3pins Lighted Rocker Switch

Characteristics

Permissible operating frequencyMechanical20 operations/min max.
Electrical7 operations/min max.
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)100 mΩ max. (6 to 8 VDC, 1 A, voltage drop method)
Dielectric strengthBetween terminals of the same polarity2,000 VAC, 50/60 Hz, for 1 min
Between terminals of the different polarity2,000 VAC, 50/60 Hz, for 1 min
Between charged metal parts and the ground terminal4,000 VAC, 50/60 Hz, for 1 min
Vibration resistanceMalfunction10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceMalfunction300 m/s2
Destruction500 m/s2
DurabilityMechanical50,000 operations min.
Electrical10,000 operations min.
Inrush current100 A max. (8.3 ms max.)
Degree of protectionIEC IP40
Ambient operating temperature–20 to +55C (with no icing or condensation)
Ambient operating humidity45 to 85%RH

KCD1-311 current switch 3pins Lighted Rocker Switch

Applications

Rocker Switch Applications

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.



MonitorsCopiersPrinters
KCD3-101RD WATERPROOF ROCKER SWITCHKCD3-101RD WATERPROOF ROCKER SWITCHKCD3-101RD WATERPROOF ROCKER SWITCH
Power SuppliesMeasuring DevicesPower Outlet Strips
KCD3-101RD WATERPROOF ROCKER SWITCHKCD3-101RD WATERPROOF ROCKER SWITCHKCD3-101RD WATERPROOF ROCKER SWITCH
