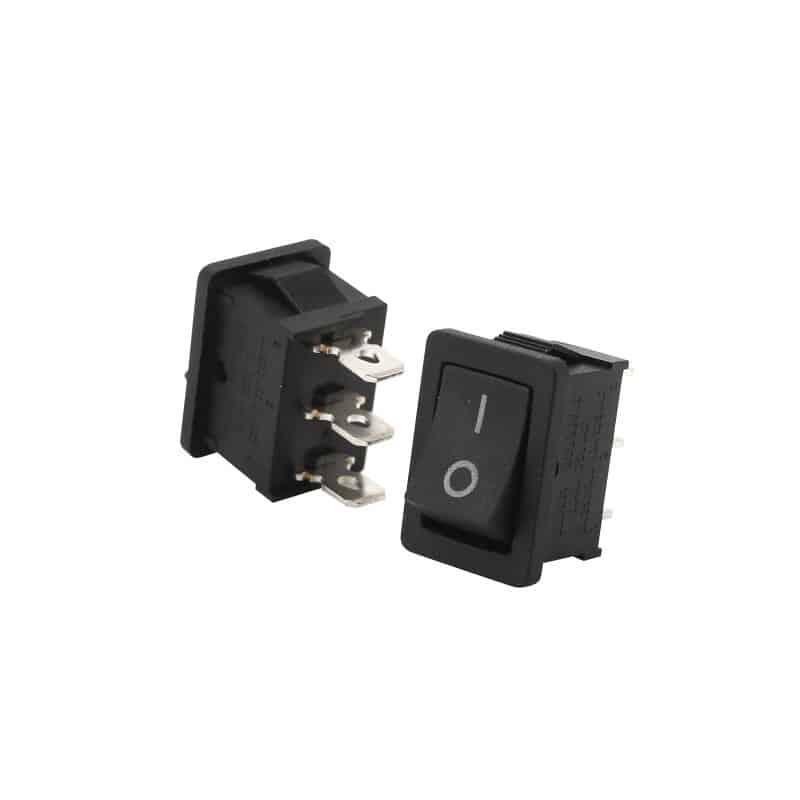

KCD1-106 SPST On Off Heat Resistant Small 250V Toggle Mini Rocker Switch

KCD1-106

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
6A 250V AC  6(4)A 250V AC

10A 125V AC  12(6)A 125V AC

10(6) 250V AC   12GP 125V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 85/55
  • Contact Resistance:
≦ 50mΩ

Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing the WEUP Sub-mini Rocker Switch

Are you in search of a reliable and versatile sub-mini rocker switch for your business? Look no further than the WEUP Sub-mini Rocker Switch. With its exceptional features and impressive functionality, this product is the perfect choice for B2B buyers like importers, distributors, manufacturers, brands, wholesalers, and retailers. Let’s delve into why the WEUP Sub-mini Rocker Switch should be your top pick.

Superior Quality and Durability

  • The WEUP Sub-mini Rocker Switch is manufactured by China manufacturers with a strong reputation for producing high-quality electrical components. This ensures that you receive a product that meets the highest standards of reliability and durability.
  • With a mechanical durability of 50,000 operations minimum and electrical durability of 10,000 operations minimum, this sub-mini rocker switch is designed to withstand extensive usage without compromising performance.
  • It has a vibration resistance of 10 to 55 Hz, ensuring that it remains functional even in challenging environments.

Wide Range of Applications

  • The WEUP Sub-mini Rocker Switch is suitable for various applications across different industries. Whether you need a switch for small appliances, computers and peripherals, or medical instrumentation, this product has got you covered.
  • Its versatility makes it an ideal choice for power supply switches in consumer electronics, PC peripherals, and office/commercial equipment. It can be seamlessly integrated into air purifiers, monitors, copiers, printers, power outlet strips, and more.

Customizable Options

  • WEUP understands that different businesses have unique requirements. That’s why they offer customizable options for the sub-mini rocker switch. You can choose from different shapes, sizes, constructions, frames, and recessed switch guards to suit your specific needs.
  • The company also provides custom wire harness and actuator marking requests, allowing you to personalize the switches according to your branding requirements.

Excellent Functionality

  • The WEUP Sub-mini Rocker Switch offers outstanding functionality with its SPST (Single Pole Single Throw) configuration. This allows for simple on/off control, making it easy to operate various home appliance products.
  • It comes with quick connect or blade terminals for hassle-free installation. You can choose between different terminal options based on your preferences and ease of use.

Reliable Performance

  • With a contact rating of 6A 250V AC and an electrical life of over 50,000 cycles, this sub-mini rocker switch promises reliable performance in demanding conditions.
  • It has an insulation resistance of over 100 MΩ and a contact resistance of less than 50mΩ, ensuring efficient electrical conductivity and minimal power loss.

Variety of Models

  • The WEUP Sub-mini Rocker Switch is available in various models to cater to different needs. Whether you require two-position On/Off switches, three-position switches, momentary switches, or maintained switches, there is a model that suits your requirements.
  • You can also choose between illuminated (LED and incandescent) and sealed/waterproof versions based on your specific application needs.

In conclusion, the WEUP Sub-mini Rocker Switch is the ultimate choice for B2B buyers seeking a high-quality and versatile electrical switch. Its superior quality, wide range of applications, customizable options, excellent functionality, reliable performance, and variety of models make it the go-to option for importers, distributors, manufacturers, brands, wholesalers, and retailers. Don’t miss out on the opportunity to enhance your product offerings with this exceptional sub-mini rocker switch from WEUP. Contact us today to connect with reliable suppliers and take your business to new heights.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

KCD1-106 SPST On Off Heat Resistant Small 250V Toggle Mini Rocker Switch

KCD1-106K2PA1KC
Switch product typeBase TypeBase ColorCircuit DiagramTerminalMarkingButton ColorActuator
Black KCD1-106 SPST On Off Heat Resistant Small 250V Toggle Mini Rocker SwitchON-OFF KCD1-106 SPST On Off Heat Resistant Small 250V Toggle Mini Rocker Switch 4.8*0.8 KCD1-106 SPST On Off Heat Resistant Small 250V Toggle Mini Rocker Switch  KCD1-106 SPST On Off Heat Resistant Small 250V Toggle Mini Rocker SwitchBlack KCD1-106 SPST On Off Heat Resistant Small 250V Toggle Mini Rocker Switch  KCD1-106 SPST On Off Heat Resistant Small 250V Toggle Mini Rocker Switch
Blue KCD1-106 SPST On Off Heat Resistant Small 250V Toggle Mini Rocker SwitchON-OFF KCD1-106 SPST On Off Heat Resistant Small 250V Toggle Mini Rocker Switch3.2*0.8 KCD1-106 SPST On Off Heat Resistant Small 250V Toggle Mini Rocker Switch  KCD1-106 SPST On Off Heat Resistant Small 250V Toggle Mini Rocker SwitchBlue KCD1-106 SPST On Off Heat Resistant Small 250V Toggle Mini Rocker Switch  KCD1-106 SPST On Off Heat Resistant Small 250V Toggle Mini Rocker Switch
Green KCD1-106 SPST On Off Heat Resistant Small 250V Toggle Mini Rocker SwitchON-OFF KCD1-106 SPST On Off Heat Resistant Small 250V Toggle Mini Rocker Switch1.2*0.8 KCD1-106 SPST On Off Heat Resistant Small 250V Toggle Mini Rocker Switch  KCD1-106 SPST On Off Heat Resistant Small 250V Toggle Mini Rocker SwitchGreen KCD1-106 SPST On Off Heat Resistant Small 250V Toggle Mini Rocker Switch  KCD1-106 SPST On Off Heat Resistant Small 250V Toggle Mini Rocker Switch
Orange KCD1-106 SPST On Off Heat Resistant Small 250V Toggle Mini Rocker SwitchON-OFF-ON KCD1-106 SPST On Off Heat Resistant Small 250V Toggle Mini Rocker Switch  KCD1-106 SPST On Off Heat Resistant Small 250V Toggle Mini Rocker SwitchOrange KCD1-106 SPST On Off Heat Resistant Small 250V Toggle Mini Rocker Switch  KCD1-106 SPST On Off Heat Resistant Small 250V Toggle Mini Rocker Switch
Red KCD1-106 SPST On Off Heat Resistant Small 250V Toggle Mini Rocker SwitchON-OFF-(ON) KCD1-106 SPST On Off Heat Resistant Small 250V Toggle Mini Rocker Switch  KCD1-106 SPST On Off Heat Resistant Small 250V Toggle Mini Rocker SwitchRed KCD1-106 SPST On Off Heat Resistant Small 250V Toggle Mini Rocker Switch
White KCD1-106 SPST On Off Heat Resistant Small 250V Toggle Mini Rocker Switch(ON)-OFF-(ON) KCD1-106 SPST On Off Heat Resistant Small 250V Toggle Mini Rocker Switch  KCD1-106 SPST On Off Heat Resistant Small 250V Toggle Mini Rocker SwitchWhite KCD1-106 SPST On Off Heat Resistant Small 250V Toggle Mini Rocker Switch
Yellow KCD1-106 SPST On Off Heat Resistant Small 250V Toggle Mini Rocker Switch  KCD1-106 SPST On Off Heat Resistant Small 250V Toggle Mini Rocker SwitchYellow KCD1-106 SPST On Off Heat Resistant Small 250V Toggle Mini Rocker Switch

Characteristics

Permissible operating frequencyMechanical20 operations/min max.
Electrical7 operations/min max.
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)100 mΩ max. (6 to 8 VDC, 1 A, voltage drop method)
Dielectric strengthBetween terminals of the same polarity2,000 VAC, 50/60 Hz, for 1 min
Between terminals of the different polarity2,000 VAC, 50/60 Hz, for 1 min
Between charged metal parts and the ground terminal4,000 VAC, 50/60 Hz, for 1 min
Vibration resistanceMalfunction10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceMalfunction300 m/s2
Destruction500 m/s2
DurabilityMechanical50,000 operations min.
Electrical10,000 operations min.
Inrush current100 A max. (8.3 ms max.)
Degree of protectionIEC IP40
Ambient operating temperature–20 to +55C (with no icing or condensation)
Ambient operating humidity45 to 85%RH

KCD1-106 SPST On Off Heat Resistant Small 250V Toggle Mini Rocker Switch

Applications

Rocker Switch Applications

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.

MonitorsCopiersPrinters
KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchKCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchKCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switch
Power SuppliesMeasuring DevicesPower Outlet Strips
