Rocker Switch

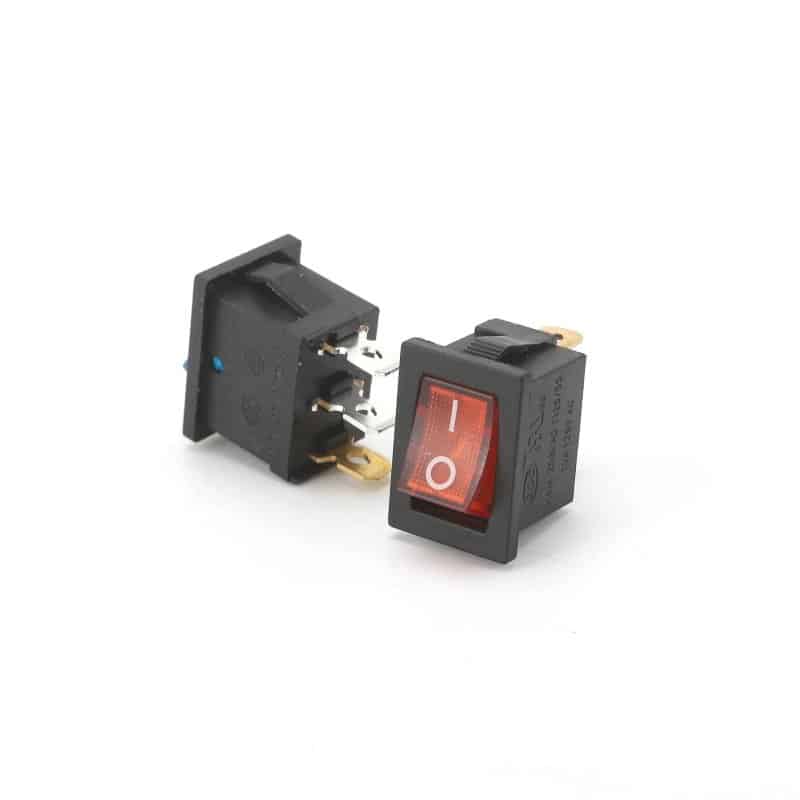

KCD1-106 red 6 amp 2 prong Illuminated Rocker Switch

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
6A 250V AC  6(4)A 250V AC

10A 125V AC  12(6)A 125V AC

10(6) 250V AC   12GP 125V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 85/55
  • Contact Resistance:
≦ 50mΩ

Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing the WEUP Sub-mini Rocker Switch: the perfect solution for B2B buyers looking for a reliable and versatile switch for their products. With its exceptional features and functions, this rocker switch is designed to meet the demands of importers, distributors, manufacturers, brands, wholesalers, and retailers alike. Let’s explore why the WEUP Sub-mini Rocker Switch should be your top choice.

1. High-Quality Construction

  • The WEUP Sub-mini Rocker Switch is manufactured by reputable China manufacturers known for their expertise in producing top-notch electrical components.
  • With a sturdy construction and high-quality materials, this switch ensures durability and long-lasting performance.
  • The switch is designed to withstand demanding conditions, making it suitable for a wide range of applications in various industries.

2. Versatile Functionality

  • The Sub-mini Rocker Switch offers multiple functionality options, including two-position On/Off, three-position, momentary, and maintained functions. This versatility allows you to choose the right configuration for your specific needs.
  • It can be used in a variety of applications such as small appliances, computers and peripherals, medical instrumentation, and more.
  • Whether you require a switch with pilot light or illumination, the WEUP Sub-mini Rocker Switch has got you covered.

3. Customization Options

  • As a buyer, you may have specific requirements for your rocker switches. The WEUP Sub-mini Rocker Switch offers customization options to meet your unique needs.
  • With their own D&R development capabilities, WEUP can create new models according to your requests. From shapes and sizes to construction and frames, you can tailor the switch to fit your product perfectly.
  • The option for recessed switch guards prevents accidental actuation, while the splash-proof rubber boots ensure added protection against water damage.

4. Wide Range of Models

  • The WEUP Sub-mini Rocker Switch is available in an extensive range of models to suit different applications.
  • Choose from SPST, SPDT, DPST, DPDT, 3PDT, and 4DPT functionality options.
  • You can also opt for illuminated versions with LED or incandescent lights for enhanced visibility and usability.

5. Excellent Performance

  • The Sub-mini Rocker Switch boasts impressive electrical ratings. It has a contact rating of 6A 250V AC and 10A 125V AC, ensuring reliable operation even in demanding environments.
  • The switch has undergone rigorous testing and is proven to have a long electrical life of over 50,000 cycles.
  • With insulation resistance exceeding 100 MΩ and contact resistance below 50mΩ, this switch guarantees optimal performance and minimal power loss.

6. Compliant and Certified

  • The WEUP Sub-mini Rocker Switch complies with international standards and regulations.
  • It holds certifications such as CQC, CCC, CE, RoHS, ENEC, PAHS, VDE, TUV, UL, ensuring its safety and reliability.
  • Rest assured that this switch meets the highest quality standards required by different industries.

Applications of the WEUP Sub-mini Rocker Switch:

The versatility of the WEUP Sub-mini Rocker Switch makes it suitable for a wide range of applications. Here are some examples:

  • Power Supply Switches for Consumer Electronics: This switch is perfect for controlling the on/off functions of devices like air purifiers, dehumidifiers, monitors, copiers, printers, and more- PC Peripherals: Whether it’s a keyboard, mouse, or other peripheral, the WEUP Sub-mini Rocker Switch provides reliable control and seamless user experience.
  • Office/Commercial Equipment: From power outlets strips to measuring devices, this switch ensures smooth operation and efficient functionality.

By choosing the WEUP Sub-mini Rocker Switch from trusted manufacturers and suppliers in China, you can be confident in the quality and performance of this essential electrical component. Its customization options, wide range of models, and compliance with international standards make it the ideal choice for B2B buyers. Enhance your products with the reliability and versatility of the WEUP Sub-mini Rocker Switch today.

For more information on how to purchase this product at wholesale prices or to inquire about customization options, please contact our authorized vendors or reach out to us directly. We are committed to providing excellent customer support and ensuring your satisfaction with our products.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

KCD1-106 Rocker SWitch

Characteristics

Permissible operating frequencyMechanical20 operations/min max.
Electrical7 operations/min max.
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)100 mΩ max. (6 to 8 VDC, 1 A, voltage drop method)
Dielectric strengthBetween terminals of the same polarity2,000 VAC, 50/60 Hz, for 1 min
Between terminals of the different polarity2,000 VAC, 50/60 Hz, for 1 min
Between charged metal parts and the ground terminal4,000 VAC, 50/60 Hz, for 1 min
Vibration resistanceMalfunction10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceMalfunction300 m/s2
Destruction500 m/s2
DurabilityMechanical50,000 operations min.
Electrical10,000 operations min.
Inrush current100 A max. (8.3 ms max.)
Degree of protectionIEC IP40
Ambient operating temperature–20 to +55C (with no icing or condensation)
Ambient operating humidity45 to 85%RH

KCD1-106 Rocker SWitch

Applications

Rocker Switch Applications

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.

Download Latest Catalog

Do you supply samples? Are the Samples free?

Yes. Usually, 1-2 samples are free of charge, please support us by providing us with any express account such as DHL, FedEx, TNT, or UPS.

How is the shipping?

Our nearest port is Ningbo and Shanghai port, but if you collect the goods to ship together, we could send them to the other farther port. Usually, our customers will choose TNT, DHL, FedEx, and UPS to ship them.

How long is the delivery leading time?

Usually the samples 1-5 days to prepare. For orders, it depends on the quantity. Usually 5-15 days.

How is the packing?

For standard packing, dozens per box, 500pcs or 1000pcs per carton. We also provide you with custom box or carton packing with your logo and design.

How do you do regarding quality control?

All the products will be 100% checked before the shipment.
