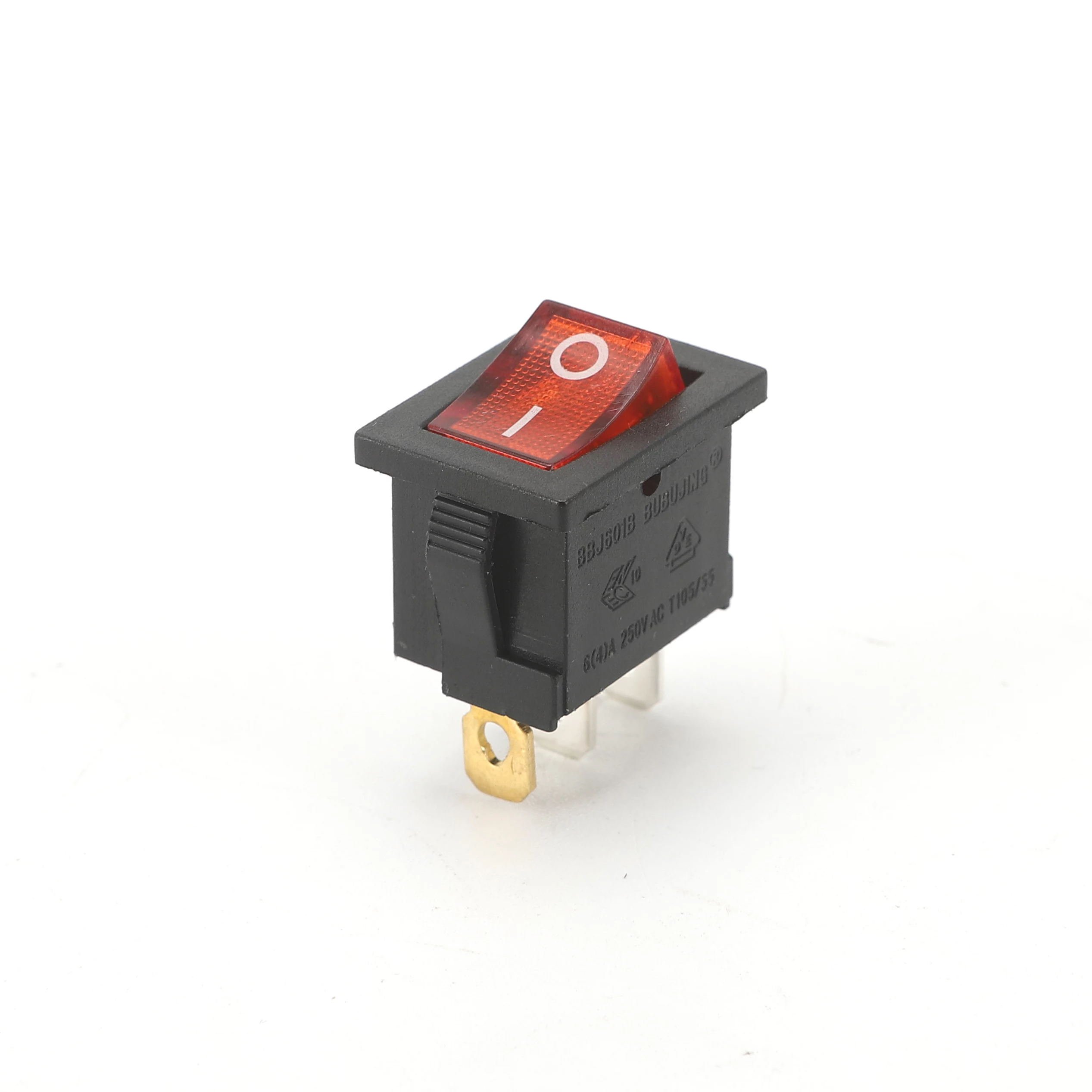

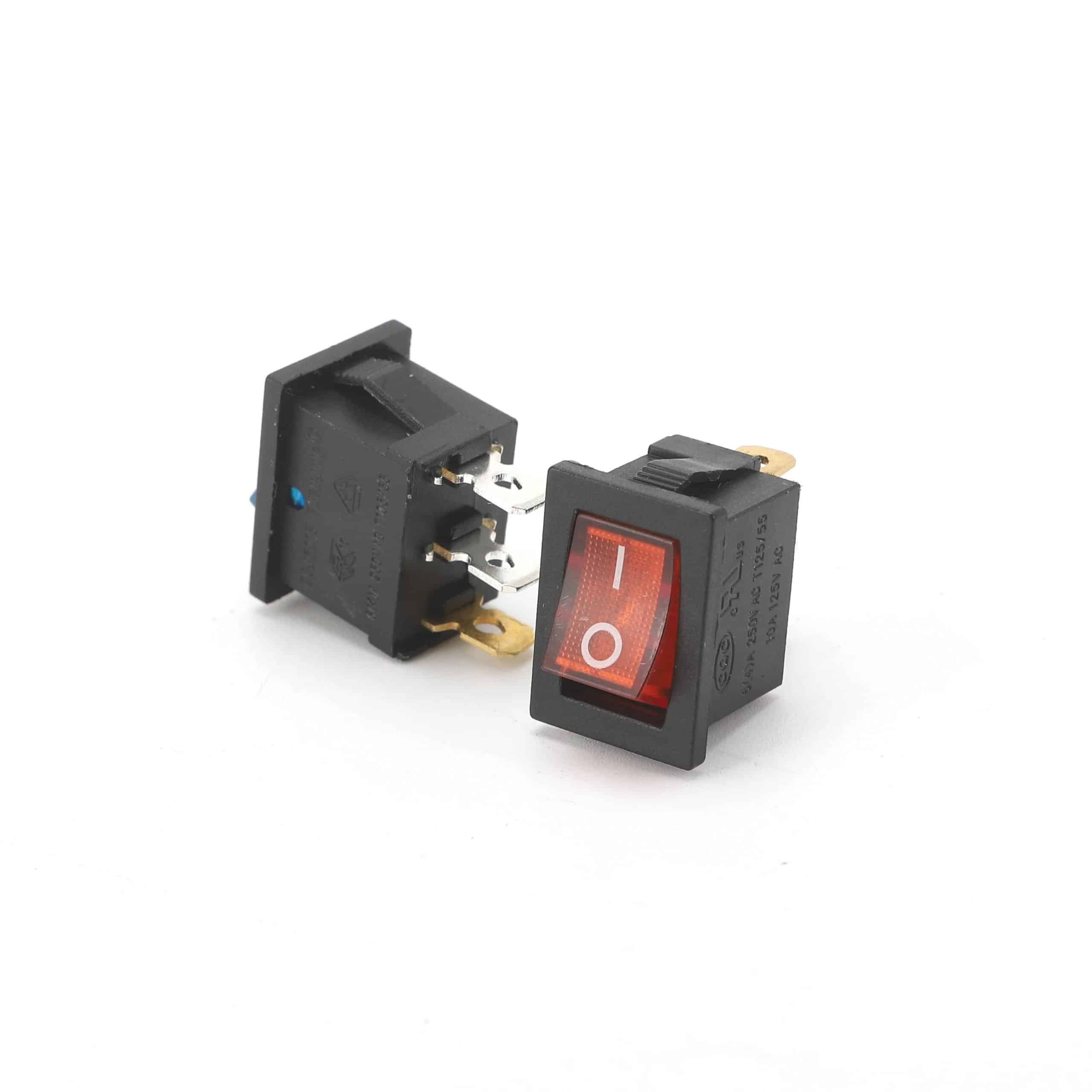

KCD1-106 red 3 Way Lighted Rocker Switch



  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals


  • Small appliances
  • Computers and peripherals
  • Medical instrumentation


  • Contact Rating:
6A 250V AC  6(4)A 250V AC

10A 125V AC  12(6)A 125V AC

10(6) 250V AC   12GP 125V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 85/55
  • Contact Resistance:
≦ 50mΩ

This product is a high-quality, reliable switch solution for industrial and commercial applications. Its impressive features and benefits, such as the insulation resistance, contact rating limits, pilot light or illumination options, easy to read imprinted markings, IP54 splash proof rubber boot option, and quick connect or blade terminals make it perfect for small appliances, computers and peripherals, and medical instrumentation. With an electrical lifecycle of 50 thousand cycles and temperatures of 85/55 degrees Celsius, this switch is highly dependable in virtually any environment. We hope that you’re now ready to move forward with your purchase knowing that you’ve selected the right switch capable of fitting all of your requirements for a superior quality device. Thank you for reading!

Read More

Product Features

Introducing the WEUP Lighted Rocker Switch: The Ultimate Switch Solution for B2B Buyers

Are you a B2B buyer looking for a high-quality, reliable switch solution for your industrial or commercial applications? Look no further! The WEUP Lighted Rocker Switch is the perfect choice for importers, distributors, manufacturers, brands, wholesalers, and retailers. With its impressive features and functions, this switch is guaranteed to meet all your requirements and provide exceptional performance. Let’s delve into the compelling reasons why the WEUP Lighted Rocker Switch should be your go-to switch option.

1. Unparalleled Quality and Reliability:

  • The WEUP Lighted Rocker Switch is manufactured by China manufacturers renowned for their excellence in producing high-quality electrical components.
  • With a focus on durability and dependability, this switch is engineered to withstand the rigors of industrial and commercial environments.
  • The switch has an impressive electrical life cycle of over 50,000 cycles, ensuring long-lasting performance and reducing the need for frequent replacements.

2. Extensive Range of Applications:

  • This versatile switch is suitable for a wide range of applications, making it ideal for various industries.
  • Whether you need a switch for small appliances, computers and peripherals, or medical instrumentation, the WEUP Lighted Rocker Switch has got you covered.
  • Its compatibility with different devices and equipment makes it a popular choice among manufacturers, brands, and wholesalers.

3. Pilot Light or Illumination Options:

  • One of the standout features of the WEUP Lighted Rocker Switch is its pilot light or illumination options.
  • The switch can be equipped with a pilot light that allows users to easily identify when the switch is in the ON or OFF position.
  • This feature is particularly useful in low-light or high-demand environments, where clear visibility of the switch’s status is crucial.

4. Easy-to-Read Imprinted Markings:

  • The WEUP Lighted Rocker Switch comes with imprinted markings that ensure ease of use and convenience.
  • The clear and legible markings provide users with quick and accurate information about the switch’s functionality and position.
  • This feature eliminates any confusion or guesswork, enhancing overall user experience and efficiency.

5. IP54 Splash Proof Rubber Boot Option:

  • For applications that require additional protection against moisture and dust, the WEUP Lighted Rocker Switch offers an IP54 splash proof rubber boot option.
  • This feature ensures that the switch remains unaffected by splashes or exposure to water, making it suitable for a wide range of environments.
  • The IP54 rating guarantees peace of mind, as the switch will continue to function reliably even in challenging conditions.

6. Quick Connect or Blade Terminals:

  • The WEUP Lighted Rocker Switch provides flexibility in installation with its quick connect or blade terminals.
  • Whether you prefer a quick and easy connection or a more secure blade terminal connection, this switch can accommodate your specific needs.
  • The versatile terminal options make installation hassle-free and efficient.

7. Exceptional Electrical Performance:

  • The WEUP Lighted Rocker Switch boasts impressive contact ratings, ensuring optimal electrical performance.
  • With a contact rating of 6A 250V AC and 10A 125V AC, this switch can handle a wide range of electrical loads.
  • The low contact resistance of less than 50mΩ guarantees minimal power loss, contributing to overall energy efficiency.

8. Temperature Resistant and Dependable:

  • Operating temperature is a critical factor when it comes to switch performance. The WEUP Lighted Rocker Switch excels in this aspect.
  • With an operating temperature range of T 85/55 (85 degrees Celsius maximum and 55 degrees Celsius minimum), this switch can withstand extreme conditions without compromising its functionality.
  • Whether it’s in scorching hot or freezing cold environments, you can rely on the WEUP Lighted Rocker Switch to deliver consistent performance.

In conclusion, the WEUP Lighted Rocker Switch is the ultimate switch solution for B2B buyers seeking high-quality electrical components. Its exceptional features and functions, coupled with its reliability and durability, make it a preferred choice among importers, distributors, manufacturers, brands, wholesalers, and retailers. Whether you’re in need of switches for small appliances, computers and peripherals, or medical instrumentation, this switch will exceed your expectations. Trust in the expertise of China manufacturers, as they have consistently delivered top-notch products like the WEUP Lighted Rocker Switch. Don’t miss out on this opportunity to enhance your industrial or commercial applications. Contact our trusted suppliers and factory partners today to explore wholesale options and secure your supply of the WEUP Lighted Rocker Switch.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.


We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service


Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

KCD1-106 Rocker SWitch

  • Characteristics
    Permissible operating frequencyMechanical20 operations/min max.
    Electrical7 operations/min max.
    Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
    Contact resistance (initial value)100 mΩ max. (6 to 8 VDC, 1 A, voltage drop method)
    Dielectric strengthBetween terminals of the same polarity2,000 VAC, 50/60 Hz, for 1 min
    Between terminals of the different polarity2,000 VAC, 50/60 Hz, for 1 min
    Between charged metal parts and the ground terminal4,000 VAC, 50/60 Hz, for 1 min
    Vibration resistanceMalfunction10 to 55 Hz, 1.5-mm double amplitude
    Shock resistanceMalfunction300 m/s2
    Destruction500 m/s2
    DurabilityMechanical50,000 operations min.
    Electrical10,000 operations min.
    Inrush current100 A max. (8.3 ms max.)
    Degree of protectionIEC IP40
    Ambient operating temperature–20 to +55C (with no icing or condensation)
    Ambient operating humidity45 to 85%RH

KCD1-106 Rocker SWitch


Rocker Switch Applications

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.


Power SuppliesMeasuring DevicesPower Outlet Strips
Power SuppliesMeasuring DevicesPower Outlet Strips

Download Latest Catalog

Do you supply samples? Are the Samples free?

Yes. Usually, 1-2 samples are free of charge, please support us by providing us with any express account such as DHL, FedEx, TNT, or UPS.

How is the shipping?

Our nearest port is Ningbo and Shanghai port, but if you collect the goods to ship together, we could send them to the other farther port. Usually, our customers will choose TNT, DHL, FedEx, and UPS to ship them.

How long is the delivery leading time?

Usually the samples 1-5 days to prepare. For orders, it depends on the quantity. Usually 5-15 days.

How is the packing?

For standard packing, dozens per box, 500pcs or 1000pcs per carton. We also provide you with custom box or carton packing with your logo and design.

How do you do regarding quality control?

All the products will be 100% checked before the shipment.
