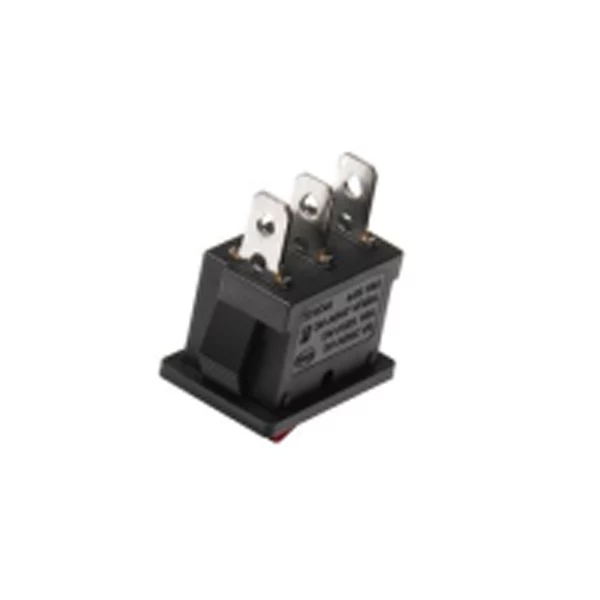

  • KCD1-106 Light Illuminated Red Switch3pins Rocker Canal Series Rocker Switch
  • KCD1-106 Light Illuminated Red Switch3pins Rocker Canal Series Rocker Switch
  • KCD1-106 Light Illuminated Red Switch3pins Rocker Canal Series Rocker Switch
  • KCD1-106 Light Illuminated Red Switch3pins Rocker Canal Series Rocker Switch

KCD1-106 Light Illuminated Red Switch3pins Rocker Canal Series Rocker Switch

KCD1-106

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
6A 250V AC  6(4)A 250V AC

10A 125V AC  12(6)A 125V AC

10(6) 250V AC   12GP 125V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 85/55
  • Contact Resistance:
≦ 50mΩ

Rocker switch control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing the WEUP Sub-mini Rocker Switch

Are you a B2B buyer looking for high-quality electrical switches? Look no further than the WEUP Sub-mini Rocker Switch. With its exceptional features and reliable performance, this switch is the perfect choice for importers, distributors, manufacturers, brands, wholesalers, and retailers.

Reliable and Versatile

  • The WEUP Sub-mini Rocker Switch is designed to control the on/off functions of a wide range of electronic devices, making it ideal for various applications.
  • Whether you’re in the market for switches for small appliances, computers and peripherals, or medical instrumentation, this versatile switch has got you covered.
  • Its compact size and space-saving design make it a perfect fit for any device or equipment.

Top-notch Features

  • This Sub-mini Rocker Switch boasts a number of impressive features that set it apart from the competition:
    • Pilot light or illumination: The switch comes with an option for a pilot light or illumination, making it easy to identify when the switch is in use.
    • Imprinted markings: The clear and durable imprinted markings ensure easy identification of the switch’s functions and positions.
    • IP54 splash-proof rubber boot option: With the optional IP54 splash-proof rubber boot, you can protect the switch from water splashes, enhancing its durability and longevity.
    • Quick connect or blade terminals: The switch is equipped with quick connect or blade terminals, allowing for easy and hassle-free installation.

Exceptional Performance

  • The WEUP Sub-mini Rocker Switch delivers outstanding performance that you can rely on:
    • Contact Rating: With a contact rating of 6A 250V AC and 10A 125V AC, this switch can handle a wide range of electrical loads.
    • Electrical Life: It offers an impressive electrical life of over 50,000 cycles, ensuring long-lasting performance.
    • Insulation Resistance: The switch provides insulation resistance of over 100 MΩ, ensuring safe and reliable operation.
    • Degree of Protection: With an IP55 degree of protection, this switch is safeguarded against dust and water splashes, making it suitable for various environments.
    • Operating Temperature: It operates smoothly within a temperature range of T85/55, ensuring reliable performance even in challenging conditions.
    • Contact Resistance: The switch has low contact resistance of less than 50mΩ, minimizing power loss.

Customization Options

  • WEUP understands that each customer may have unique requirements. That’s why they offer customization options to meet your specific needs:
    • Custom Models: With their own D&R development capabilities, WEUP can create new models according to your requests, ensuring a perfect fit for your applications.
    • Wire Harness and Actuator Marking: They can support custom wire harness and actuator marking requests, allowing you to personalize the switches to match your branding or specific requirements.

Applications The WEUP Sub-mini Rocker Switch finds applications in various industries:

  • Power Supply Switches: It is ideal for consumer electronics, PC peripherals, office/commercial equipment, and power outlet strips.
  • Air Purifiers and Dehumidifiers: The switch can be used to control the on/off functions of air purifiers, dehumidifiers, and other similar devices.
  • Monitors, Copiers, and Printers: It is compatible with monitors, copiers, printers, and other office equipment.
  • Measuring Devices: The switch is suitable for measuring devices such as voltmeters, ammeters, and multimeters.

In conclusion, the WEUP Sub-mini Rocker Switch is a reliable choice for B2B buyers seeking high-quality electrical switches. Its exceptional features, versatility, and top-notch performance make it a perfect fit for various applications. With customization options available and excellent customer support from WEUP, you can trust their products to meet your specific needs. Choose WEUP as your trusted supplier and experience the difference.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

KCD1-106 light illuminated red switch3pins rocker canal series rocker switch







KCD1-106K2PA1KC
Switch product typeBase TypeBase ColorCircuit DiagramTerminalMarkingButton ColorActuator
Black KCD1-106 light illuminated red switch3pins rocker canal series rocker switchON-OFF KCD1-106 light illuminated red switch3pins rocker canal series rocker switch 4.8*0.8 KCD1-106 light illuminated red switch3pins rocker canal series rocker switch  KCD1-106 light illuminated red switch3pins rocker canal series rocker switchBlack KCD1-106 light illuminated red switch3pins rocker canal series rocker switch  KCD1-106 light illuminated red switch3pins rocker canal series rocker switch
Blue KCD1-106 light illuminated red switch3pins rocker canal series rocker switchON-OFF KCD1-106 light illuminated red switch3pins rocker canal series rocker switch3.2*0.8 KCD1-106 light illuminated red switch3pins rocker canal series rocker switch  KCD1-106 light illuminated red switch3pins rocker canal series rocker switchBlue KCD1-106 light illuminated red switch3pins rocker canal series rocker switch  KCD1-106 light illuminated red switch3pins rocker canal series rocker switch
Green KCD1-106 light illuminated red switch3pins rocker canal series rocker switchON-OFF KCD1-106 light illuminated red switch3pins rocker canal series rocker switch1.2*0.8 KCD1-106 light illuminated red switch3pins rocker canal series rocker switch  KCD1-106 light illuminated red switch3pins rocker canal series rocker switchGreen KCD1-106 light illuminated red switch3pins rocker canal series rocker switch  KCD1-106 light illuminated red switch3pins rocker canal series rocker switch
Orange KCD1-106 light illuminated red switch3pins rocker canal series rocker switchON-OFF-ON KCD1-106 light illuminated red switch3pins rocker canal series rocker switch  KCD1-106 light illuminated red switch3pins rocker canal series rocker switchOrange KCD1-106 light illuminated red switch3pins rocker canal series rocker switch  KCD1-106 light illuminated red switch3pins rocker canal series rocker switch
Red KCD1-106 light illuminated red switch3pins rocker canal series rocker switchON-OFF-(ON) KCD1-106 light illuminated red switch3pins rocker canal series rocker switch  KCD1-106 light illuminated red switch3pins rocker canal series rocker switchRed KCD1-106 light illuminated red switch3pins rocker canal series rocker switch
White KCD1-106 light illuminated red switch3pins rocker canal series rocker switch(ON)-OFF-(ON) KCD1-106 light illuminated red switch3pins rocker canal series rocker switch  KCD1-106 light illuminated red switch3pins rocker canal series rocker switchWhite KCD1-106 light illuminated red switch3pins rocker canal series rocker switch
Yellow KCD1-106 light illuminated red switch3pins rocker canal series rocker switch  KCD1-106 light illuminated red switch3pins rocker canal series rocker switchYellow KCD1-106 light illuminated red switch3pins rocker canal series rocker switch

Characteristics

Permissible operating frequencyMechanical20 operations/min max.
Electrical7 operations/min max.
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)100 mΩ max. (6 to 8 VDC, 1 A, voltage drop method)
Dielectric strengthBetween terminals of the same polarity2,000 VAC, 50/60 Hz, for 1 min
Between terminals of the different polarity2,000 VAC, 50/60 Hz, for 1 min
Between charged metal parts and the ground terminal4,000 VAC, 50/60 Hz, for 1 min
Vibration resistanceMalfunction10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceMalfunction300 m/s2
Destruction500 m/s2
DurabilityMechanical50,000 operations min.
Electrical10,000 operations min.
Inrush current100 A max. (8.3 ms max.)
Degree of protectionIEC IP40
Ambient operating temperature–20 to +55C (with no icing or condensation)
Ambient operating humidity45 to 85%RH

KCD1-106 light illuminated red switch3pins rocker canal series rocker switch

Applications

Rocker Switch Applications

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.

MonitorsCopiersPrinters
KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchKCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchKCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switch
Power SuppliesMeasuring DevicesPower Outlet Strips
KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchKCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switchrocker switch

Related Products (4)

Download Latest Catalog

Do you supply samples? Are the Samples free?

Yes. Usually, 1-2 samples are free of charge, please support us by providing us with any express account such as DHL, FedEx, TNT, or UPS.

How is the shipping?

Our nearest port is Ningbo and Shanghai port, but if you collect the goods to ship together, we could send them to the other farther port. Usually, our customers will choose TNT, DHL, FedEx, and UPS to ship them.

How long is the delivery leading time?

Usually the samples 1-5 days to prepare. For orders, it depends on the quantity. Usually 5-15 days.

How is the packing?

For standard packing, dozens per box, 500pcs or 1000pcs per carton. We also provide you with custom box or carton packing with your logo and design.

How do you do regarding quality control?

All the products will be 100% checked before the shipment.
