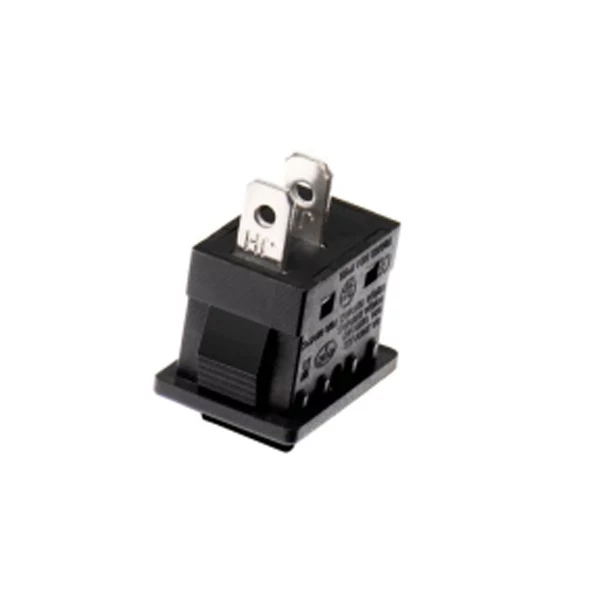

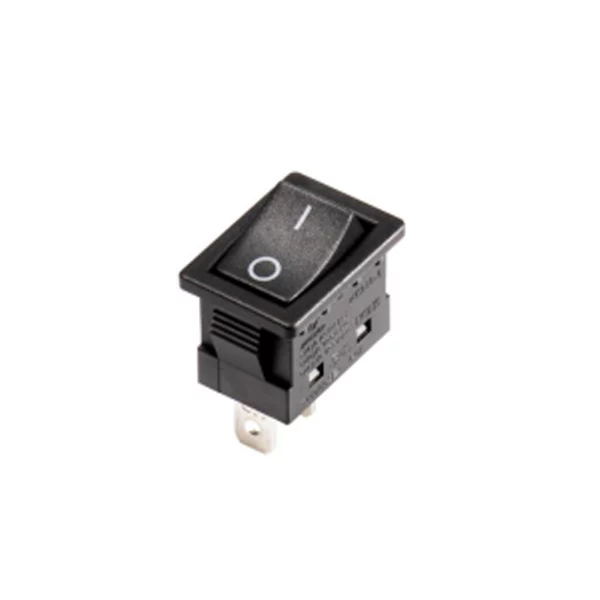

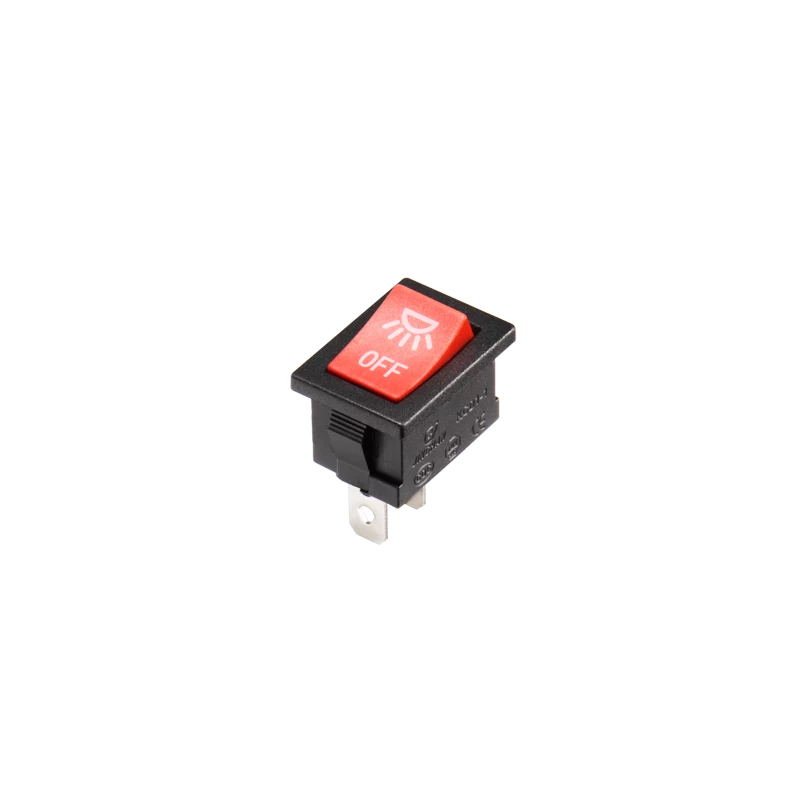

KCD1-106 2pins Rocker Canal KCD101 Custom Rocker Switches

KCD1-106

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
6A 250V AC  6(4)A 250V AC

10A 125V AC  12(6)A 125V AC

10(6) 250V AC   12GP 125V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 85/55
  • Contact Resistance:
≦ 50mΩ

Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing the WEUP Sub-mini Rocker Switch: The Perfect Choice for B2B Buyers!

Are you a B2B buyer looking for a reliable and efficient solution for your electrical appliance products? Look no further than the WEUP Sub-mini Rocker Switch! With its exceptional features and functions, this rocker switch is the ideal choice for importers, distributors, manufacturers, brands, wholesalers, and retailers. Let’s delve into the compelling reasons why you should consider WEUP’s Sub-mini Rocker Switch for your business needs.

1. Unparalleled Quality and Reliability:

  • WEUP, one of the leading China manufacturers in the industry, is renowned for producing high-quality electrical components. The Sub-mini Rocker Switch is no exception. Its impeccable craftsmanship ensures long-lasting durability and reliable performance, meeting the stringent requirements of various applications.

2. Versatile Functionality:

  • The Sub-mini Rocker Switch offers a wide range of functionality options to cater to diverse needs. Whether you require a simple two-position On/Off switch or a more complex three-position or momentary switch, WEUP has got you covered. With SPST, SPDT, DPST, DPDT, 3PDT, and 4DPT functionality, this switch can handle multiple applications with ease.

3. Customization Options:

  • WEUP understands that every business has unique requirements. Therefore, they offer customization options to tailor the Sub-mini Rocker Switch according to your specific needs. From different shapes and sizes to various constructions and frames, WEUP can create a new model based on your requests. Additionally, they can provide recessed switch guards, splash-proof rubber boots, and sub-miniature sizes for space-saving solutions.

4. Wide Range of Configurations:

  • The Sub-mini Rocker Switch is available in an extensive range of configurations. Whether you need a single-pole or multi-pole switch, maintained or momentary action, illuminated (LED and incandescent) or sealed/waterproof versions, WEUP has the right solution for you. This versatility ensures that you can find the perfect switch to meet your specific application requirements.

5. Excellent Support and Customer Service:

  • When partnering with WEUP, you can expect exceptional support and customer service throughout your business journey. Their experienced team is dedicated to providing prompt assistance and guidance, ensuring that all your queries are addressed effectively. Furthermore, they can support custom wire harness and actuator marking requests to meet your exact design specifications.

6. Proven Track Record:

  • WEUP has a proven track record of delivering top-notch electrical components to satisfied customers worldwide. Their commitment to excellence and customer satisfaction has earned them certifications such as CQC, CCC, CE, RoHS, ENEC, PAHS, VDE, TUV, and UL. This demonstrates their adherence to international quality standards and their credibility as a reliable partner.

7. Extensive Applications:

  • The Sub-mini Rocker Switch is suitable for a wide range of applications across various industries. Whether it’s small appliances, computers and peripherals, or medical instrumentation, this versatile switch can handle it all. Its robust design and high contact ratings (6A 250V AC, 10A 125V AC) ensure reliable performance even in demanding environments.

8. Competitive Pricing:

  • As a B2B buyer, competitive pricing is crucial for your business success. WEUP understands this and offers the Sub-mini Rocker Switch at affordable prices without compromising on quality. Their direct factory supply chain allows for cost-effective solutions while maintaining the highest standards.

In conclusion, the WEUP Sub-mini Rocker Switch is the ultimate choice for B2B buyers in need of a reliable and versatile electrical component. With its unparalleled quality, customization options, wide range of configurations, and excellent support, this switch offers an exceptional solution for importers, distributors, manufacturers, brands, wholesalers, and retailers. Trust in WEUP’s expertise as one of the leading China manufacturers and make your business thrive with their top-notch Sub-mini Rocker Switch!

For more information about WEUP’s Sub-mini Rocker Switch and to connect with their trusted suppliers and vendors, please visit their website or reach out to their dedicated sales team today!

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

KCD1-106 2pins rocker canal KCD101 custom rocker switches



KCD1-106K2PA1KC
Switch product typeBase TypeBase ColorCircuit DiagramTerminalMarkingButton ColorActuator
Black KCD1-106 2pins rocker canal KCD101 custom rocker switchesON-OFF KCD1-106 2pins rocker canal KCD101 custom rocker switches 4.8*0.8 KCD1-106 2pins rocker canal KCD101 custom rocker switches  KCD1-106 2pins rocker canal KCD101 custom rocker switchesBlack KCD1-106 2pins rocker canal KCD101 custom rocker switches  KCD1-106 2pins rocker canal KCD101 custom rocker switches
Blue KCD1-106 2pins rocker canal KCD101 custom rocker switchesON-OFF KCD1-106 2pins rocker canal KCD101 custom rocker switches3.2*0.8 KCD1-106 2pins rocker canal KCD101 custom rocker switches  KCD1-106 2pins rocker canal KCD101 custom rocker switchesBlue KCD1-106 2pins rocker canal KCD101 custom rocker switches  KCD1-106 2pins rocker canal KCD101 custom rocker switches
Green KCD1-106 2pins rocker canal KCD101 custom rocker switchesON-OFF KCD1-106 2pins rocker canal KCD101 custom rocker switches1.2*0.8 KCD1-106 2pins rocker canal KCD101 custom rocker switches  KCD1-106 2pins rocker canal KCD101 custom rocker switchesGreen KCD1-106 2pins rocker canal KCD101 custom rocker switches  KCD1-106 2pins rocker canal KCD101 custom rocker switches
Orange KCD1-106 2pins rocker canal KCD101 custom rocker switchesON-OFF-ON KCD1-106 2pins rocker canal KCD101 custom rocker switches  KCD1-106 2pins rocker canal KCD101 custom rocker switchesOrange KCD1-106 2pins rocker canal KCD101 custom rocker switches  KCD1-106 2pins rocker canal KCD101 custom rocker switches
Red KCD1-106 2pins rocker canal KCD101 custom rocker switchesON-OFF-(ON) KCD1-106 2pins rocker canal KCD101 custom rocker switches  KCD1-106 2pins rocker canal KCD101 custom rocker switchesRed KCD1-106 2pins rocker canal KCD101 custom rocker switches
White KCD1-106 2pins rocker canal KCD101 custom rocker switches(ON)-OFF-(ON) KCD1-106 2pins rocker canal KCD101 custom rocker switches  KCD1-106 2pins rocker canal KCD101 custom rocker switchesWhite KCD1-106 2pins rocker canal KCD101 custom rocker switches
Yellow KCD1-106 2pins rocker canal KCD101 custom rocker switches  KCD1-106 2pins rocker canal KCD101 custom rocker switchesYellow KCD1-106 2pins rocker canal KCD101 custom rocker switches

Characteristics

Permissible operating frequencyMechanical20 operations/min max.
Electrical7 operations/min max.
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)100 mΩ max. (6 to 8 VDC, 1 A, voltage drop method)
Dielectric strengthBetween terminals of the same polarity2,000 VAC, 50/60 Hz, for 1 min
Between terminals of the different polarity2,000 VAC, 50/60 Hz, for 1 min
Between charged metal parts and the ground terminal4,000 VAC, 50/60 Hz, for 1 min
Vibration resistanceMalfunction10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceMalfunction300 m/s2
Destruction500 m/s2
DurabilityMechanical50,000 operations min.
Electrical10,000 operations min.
Inrush current100 A max. (8.3 ms max.)
Degree of protectionIEC IP40
Ambient operating temperature–20 to +55C (with no icing or condensation)
Ambient operating humidity45 to 85%RH

KCD1-106 2pins rocker canal KCD101 custom rocker switches

Applications

Rocker Switch Applications

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.

MonitorsCopiersPrinters
KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchKCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchKCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switch
Power SuppliesMeasuring DevicesPower Outlet Strips
KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchKCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switchrocker switch

Related Products (4)

Download Latest Catalog

Do you supply samples? Are the Samples free?

Yes. Usually, 1-2 samples are free of charge, please support us by providing us with any express account such as DHL, FedEx, TNT, or UPS.

How is the shipping?

Our nearest port is Ningbo and Shanghai port, but if you collect the goods to ship together, we could send them to the other farther port. Usually, our customers will choose TNT, DHL, FedEx, and UPS to ship them.

How long is the delivery leading time?

Usually the samples 1-5 days to prepare. For orders, it depends on the quantity. Usually 5-15 days.

How is the packing?

For standard packing, dozens per box, 500pcs or 1000pcs per carton. We also provide you with custom box or carton packing with your logo and design.

How do you do regarding quality control?

All the products will be 100% checked before the shipment.
