  • KCD1-106 250v kcd1 t85 rocker switch 2 pin rocker switch SPST
  • KCD1-106 250v kcd1 t85 rocker switch 2 pin rocker switch SPST

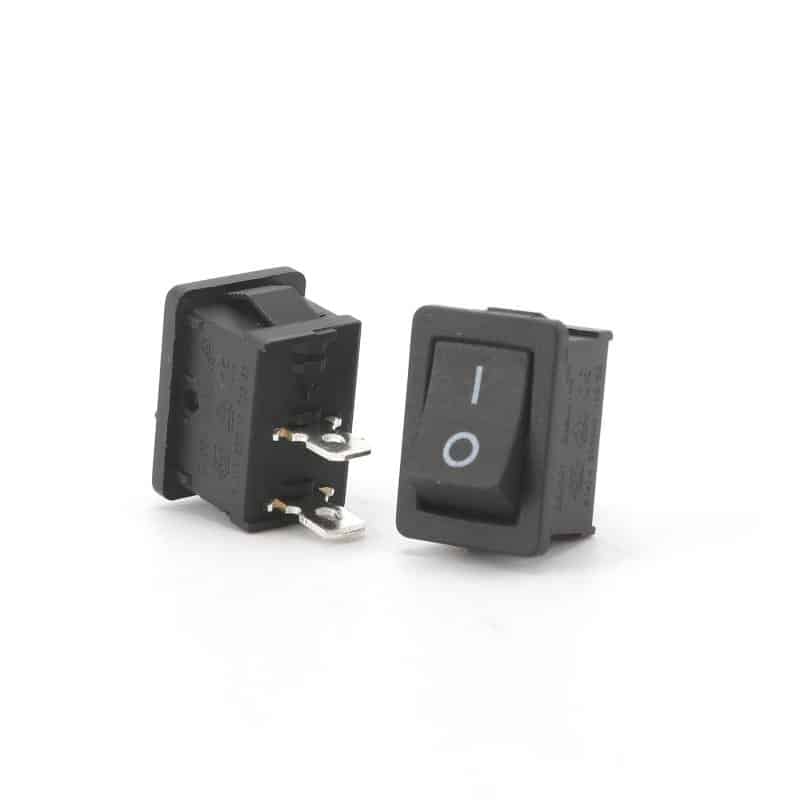

KCD1-106 250v kcd1 t85 rocker switch 2 pin rocker switch SPST

KCD1-106

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
6A 250V AC  6(4)A 250V AC

10A 125V AC  12(6)A 125V AC

10(6) 250V AC   12GP 125V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 85/55
  • Contact Resistance:
≦ 50mΩ

Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing WEUP’s Sub-mini Rocker Switch

Are you looking for a reliable and high-quality Sub-mini Rocker Switch for your business needs? Look no further than WEUP’s Sub-mini Rocker Switch, a versatile and efficient solution designed to meet the demands of B2B buyers like importers, distributors, manufacturers, brands, wholesalers, and retailers. With its exceptional features and functions, this product is sure to impress.

1. Superior Quality and Durability

  • WEUP’s Sub-mini Rocker Switch is manufactured by experienced China manufacturers, ensuring top-notch quality and durability.
  • The switch is designed to withstand frequent use with a mechanical life of over 50,000 cycles.
  • It offers excellent electrical performance, with insulation resistance of over 100 MΩ and contact resistance of less than 50mΩ.

2. Wide Range of Applications

  • This Sub-mini Rocker Switch is suitable for various applications, making it a versatile choice for different industries.
  • It is ideal for small appliances, computers and peripherals, and medical instrumentation, among others.
  • Whether you are in the consumer electronics, office equipment, or measuring devices industry, this switch will meet your needs.

3. Multiple Functionality Options

  • WEUP understands that different businesses have diverse requirements. Therefore, our Sub-mini Rocker Switch comes in various configurations to cater to your specific needs.
  • Choose from two-position On/Off, three-position, momentary, maintained, and more.
  • The switch is also available in illuminated (LED and incandescent) and sealed/waterproof versions.

4. Customization Possibilities

  • WEUP takes pride in offering customized solutions to our customers. Our Sub-mini Rocker Switch can be tailored according to your unique requirements.
  • With our own D&R development capabilities, we can create a new model that meets your specific requests.
  • Options for customization include shapes, size, construction, frames, recessed switch guards, and splash-proof rubber boots.

5. Easy Installation and Use

  • The Sub-mini Rocker Switch from WEUP features quick connect or blade terminals, ensuring easy installation.
  • The switch comes with imprinted markings for clear identification and ease of use.
  • Its compact design with sub-miniature sizes allows for a space-saving small footprint.

6. Reliable Support and Service

  • WEUP is committed to providing excellent customer support and service.
  • We have a dedicated team ready to assist you with any inquiries or requests.
  • Our reliable vendors and suppliers ensure prompt delivery of your orders.

7. Competitive Advantage

  • By choosing WEUP’s Sub-mini Rocker Switch, you gain a competitive edge in the market.
  • Our high-quality product combined with customization options sets you apart from competitors.
  • With our competitive pricing and reliable supply chain, you can optimize your business operations.

Conclusion

In summary, WEUP’s Sub-mini Rocker Switch is the ideal choice for B2B buyers looking for a reliable and efficient solution. Its superior quality, wide range of applications, multiple functionality options, customization possibilities, easy installation, and reliable support make it the perfect fit for various industries. Stand out from the competition by choosing this exceptional product from a trusted manufacturer. Contact us today to experience the benefits of WEUP’s Sub-mini Rocker Switch!

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

KCD1-106 250v kcd1 t85 rocker switch 2 pin rocker switch SPST

KCD1-106K2PA1KC
Switch product typeBase TypeBase ColorCircuit DiagramTerminalMarkingButton ColorActuator
Black KCD1-106 250v kcd1 t85 rocker switch 2 pin rocker switch SPSTON-OFF KCD1-106 250v kcd1 t85 rocker switch 2 pin rocker switch SPST 4.8*0.8 KCD1-106 250v kcd1 t85 rocker switch 2 pin rocker switch SPST  KCD1-106 250v kcd1 t85 rocker switch 2 pin rocker switch SPSTBlack KCD1-106 250v kcd1 t85 rocker switch 2 pin rocker switch SPST  KCD1-106 250v kcd1 t85 rocker switch 2 pin rocker switch SPST
Blue KCD1-106 250v kcd1 t85 rocker switch 2 pin rocker switch SPSTON-OFF KCD1-106 250v kcd1 t85 rocker switch 2 pin rocker switch SPST3.2*0.8 KCD1-106 250v kcd1 t85 rocker switch 2 pin rocker switch SPST  KCD1-106 250v kcd1 t85 rocker switch 2 pin rocker switch SPSTBlue KCD1-106 250v kcd1 t85 rocker switch 2 pin rocker switch SPST  KCD1-106 250v kcd1 t85 rocker switch 2 pin rocker switch SPST
Green KCD1-106 250v kcd1 t85 rocker switch 2 pin rocker switch SPSTON-OFF KCD1-106 250v kcd1 t85 rocker switch 2 pin rocker switch SPST1.2*0.8 KCD1-106 250v kcd1 t85 rocker switch 2 pin rocker switch SPST  KCD1-106 250v kcd1 t85 rocker switch 2 pin rocker switch SPSTGreen KCD1-106 250v kcd1 t85 rocker switch 2 pin rocker switch SPST  KCD1-106 250v kcd1 t85 rocker switch 2 pin rocker switch SPST
Orange KCD1-106 250v kcd1 t85 rocker switch 2 pin rocker switch SPSTON-OFF-ON KCD1-106 250v kcd1 t85 rocker switch 2 pin rocker switch SPST  KCD1-106 250v kcd1 t85 rocker switch 2 pin rocker switch SPSTOrange KCD1-106 250v kcd1 t85 rocker switch 2 pin rocker switch SPST  KCD1-106 250v kcd1 t85 rocker switch 2 pin rocker switch SPST
Red KCD1-106 250v kcd1 t85 rocker switch 2 pin rocker switch SPSTON-OFF-(ON) KCD1-106 250v kcd1 t85 rocker switch 2 pin rocker switch SPST  KCD1-106 250v kcd1 t85 rocker switch 2 pin rocker switch SPSTRed KCD1-106 250v kcd1 t85 rocker switch 2 pin rocker switch SPST
White KCD1-106 250v kcd1 t85 rocker switch 2 pin rocker switch SPST(ON)-OFF-(ON) KCD1-106 250v kcd1 t85 rocker switch 2 pin rocker switch SPST  KCD1-106 250v kcd1 t85 rocker switch 2 pin rocker switch SPSTWhite KCD1-106 250v kcd1 t85 rocker switch 2 pin rocker switch SPST
Yellow KCD1-106 250v kcd1 t85 rocker switch 2 pin rocker switch SPST  KCD1-106 250v kcd1 t85 rocker switch 2 pin rocker switch SPSTYellow KCD1-106 250v kcd1 t85 rocker switch 2 pin rocker switch SPST

Characteristics

Permissible operating frequencyMechanical20 operations/min max.
Electrical7 operations/min max.
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)100 mΩ max. (6 to 8 VDC, 1 A, voltage drop method)
Dielectric strengthBetween terminals of the same polarity2,000 VAC, 50/60 Hz, for 1 min
Between terminals of the different polarity2,000 VAC, 50/60 Hz, for 1 min
Between charged metal parts and the ground terminal4,000 VAC, 50/60 Hz, for 1 min
Vibration resistanceMalfunction10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceMalfunction300 m/s2
Destruction500 m/s2
DurabilityMechanical50,000 operations min.
Electrical10,000 operations min.
Inrush current100 A max. (8.3 ms max.)
Degree of protectionIEC IP40
Ambient operating temperature–20 to +55C (with no icing or condensation)
Ambient operating humidity45 to 85%RH

KCD1-106 250v kcd1 t85 rocker switch 2 pin rocker switch SPST

Applications

Rocker Switch Applications

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.

MonitorsCopiersPrinters
KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchKCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchKCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switch
Power SuppliesMeasuring DevicesPower Outlet Strips
KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchKCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switchrocker switch

Related Products (4)

Download Latest Catalog

Do you supply samples? Are the Samples free?

Yes. Usually, 1-2 samples are free of charge, please support us by providing us with any express account such as DHL, FedEx, TNT, or UPS.

How is the shipping?

Our nearest port is Ningbo and Shanghai port, but if you collect the goods to ship together, we could send them to the other farther port. Usually, our customers will choose TNT, DHL, FedEx, and UPS to ship them.

How long is the delivery leading time?

Usually the samples 1-5 days to prepare. For orders, it depends on the quantity. Usually 5-15 days.

How is the packing?

For standard packing, dozens per box, 500pcs or 1000pcs per carton. We also provide you with custom box or carton packing with your logo and design.

How do you do regarding quality control?

All the products will be 100% checked before the shipment.
