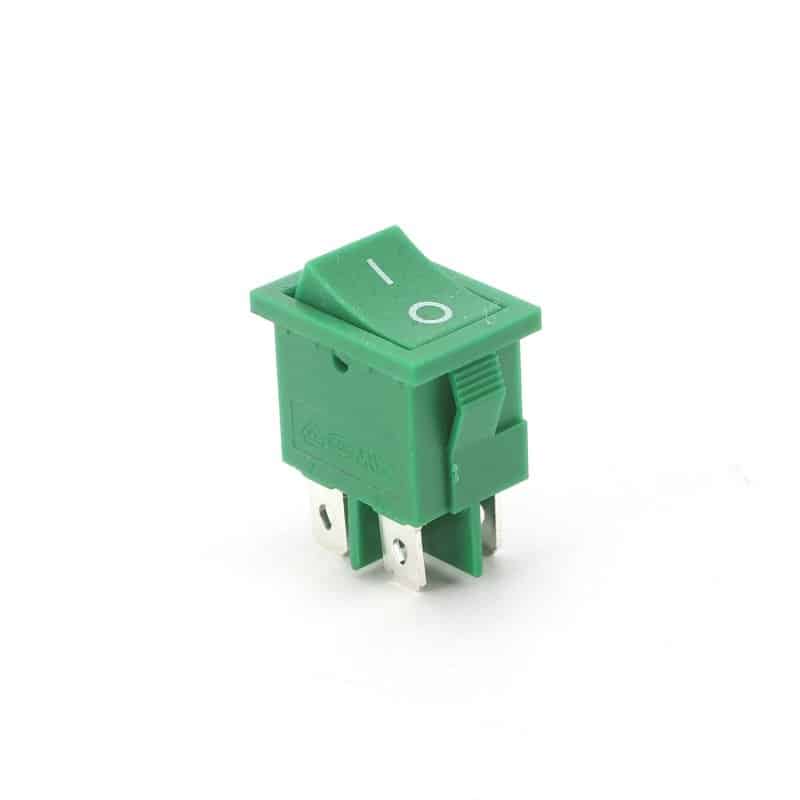

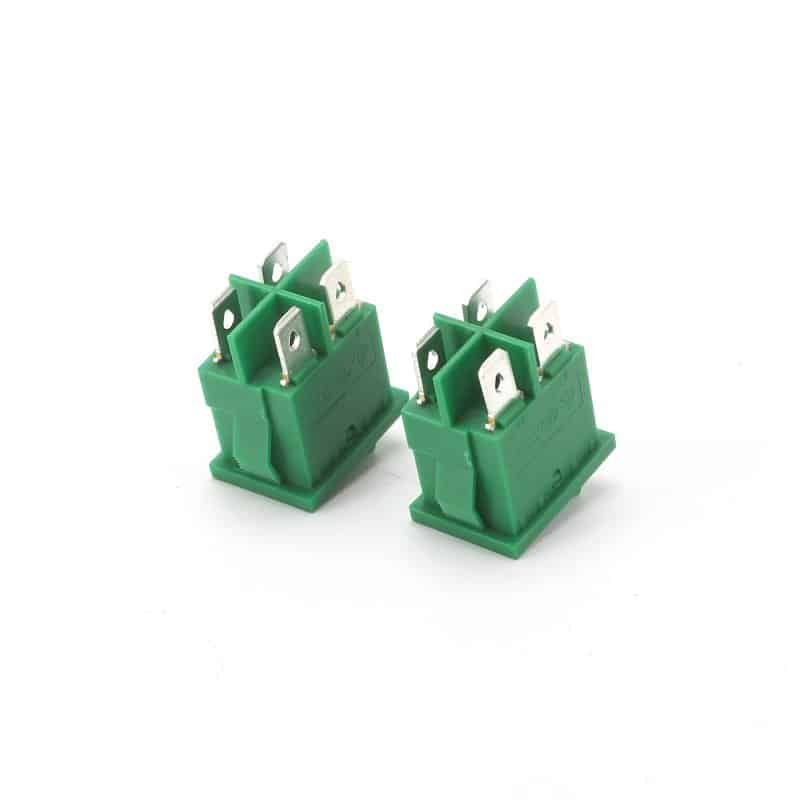

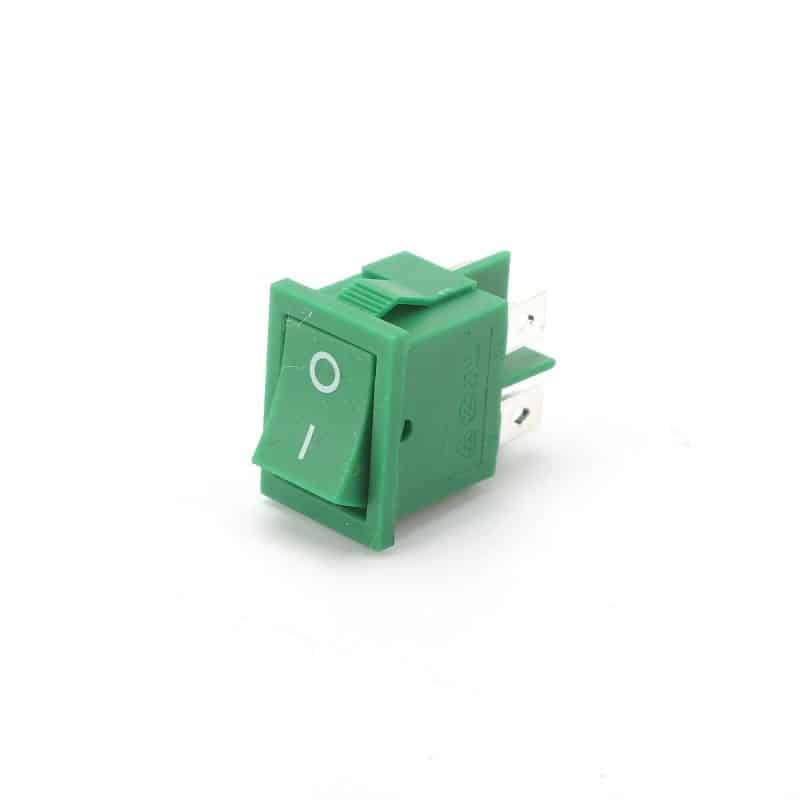

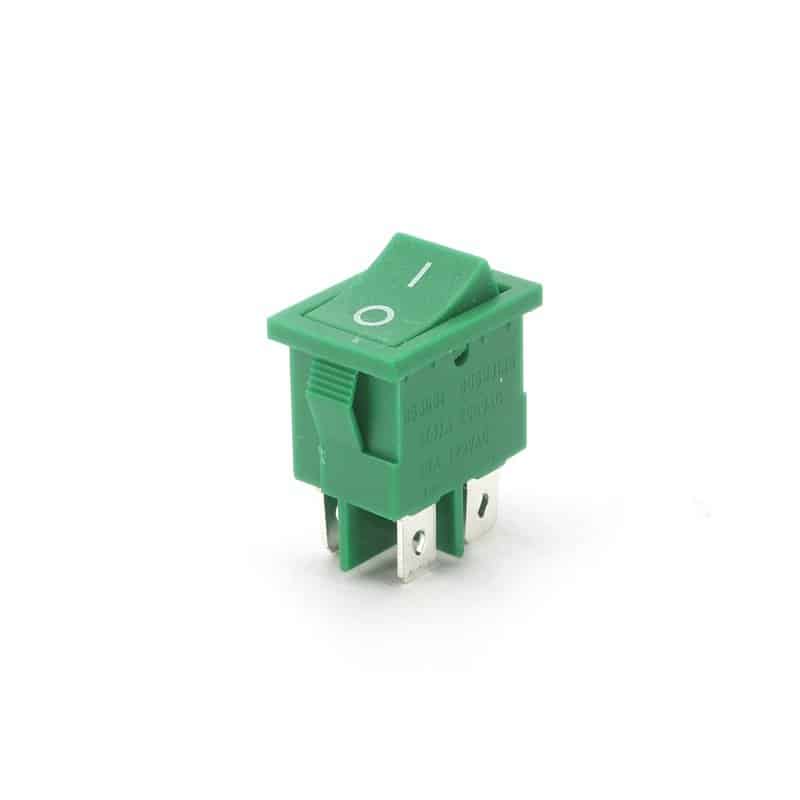

KCD1-104GG4P GREEN ROCKER SWITCH

KCD1-104GG4P

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
6A 250V AC

10A 125V AC

10(6) 250V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 85/55
  • Contact Resistance:
≦ 50mΩ

Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing WEUP’s Sub-mini Rocker Switch

Are you in the market for a reliable and versatile rocker switch for your business needs? Look no further than WEUP’s Sub-mini Rocker Switch. This high-quality switch offers a wide range of features and functions that will meet the demands of importers, distributors, manufacturers, brands, wholesalers, and retailers.

1. Reliable Performance:

  • Contact Rating: The Sub-mini Rocker Switch has a contact rating of 6A 250V AC and 10A 125V AC, ensuring its ability to handle various electrical loads.
  • Electrical Life: With a durability of over 50,000 cycles, this switch will withstand frequent use without compromising its performance.
  • Insulation Resistance: The switch boasts an insulation resistance of at least 100 MΩ, providing excellent protection against electrical leakage.
  • Contact Resistance: With a maximum contact resistance of 50mΩ, the Sub-mini Rocker Switch ensures efficient and reliable electrical conductivity.

2. Versatile Applications:

The Sub-mini Rocker Switch is suitable for a wide range of applications, making it an ideal choice for businesses across different industries. Some typical applications include:

  • Small Appliances: This switch is perfect for controlling the on/off functions of small appliances like air purifiers, dehumidifiers, and more.
  • Computers and Peripherals: Whether it’s for monitors, copiers, printers, or power supplies, this rocker switch will provide reliable power control for your computer equipment.
  • Medical Instrumentation: The high-quality construction and performance make it well-suited for medical instrumentation applications where precision and reliability are essential.

3. Customizable Options:

WEUP understands that different businesses have unique requirements. That’s why the Sub-mini Rocker Switch offers customizable options to meet your specific needs. Some customization possibilities include:

  • Shape and Size: The switch can be tailored to fit your desired shape and size requirements, ensuring a perfect fit for your application.
  • Construction: Choose from various construction options that cater to your specific environmental conditions, such as splash-proof rubber boots for added protection.
  • Frames and Recessed Switch Guards: Prevent accidental actuation with recessed switch guards, providing peace of mind in demanding environments.
  • Wire Harness and Actuator Marking: WEUP can accommodate custom wire harness and actuator marking requests, allowing you to brand the switches to align with your unique product designs.

4. WEUP’s D&R Development:

As one of the leading China manufacturers in the industry, WEUP has its own dedicated D&R (Design and Research) development team. This means that we have the capability to create new models according to your specific requests. Our expertise in manufacturing and customization allows us to provide tailored solutions that meet your business requirements.

5. Quality Assurance and Certifications:

At WEUP, we prioritize quality and ensure that our products adhere to industry standards. The Sub-mini Rocker Switch undergoes rigorous testing to ensure its reliability and durability. It meets various certifications such as CQC, CCC, CE, RoHS, ENEC, PAHS, VDE, TUV, and UL, guaranteeing its compliance with international quality and safety standards.

6. Supportive Customer Service:

WEUP is committed to providing excellent customer service. We work closely with our clients to understand their needs and deliver personalized solutions. Our experienced team is always ready to assist you with any inquiries or technical support you may require.

In conclusion, the Sub-mini Rocker Switch from WEUP offers exceptional performance, versatility, and customization options. Its reliability, durability, and compatibility with various applications make it an ideal choice for importers, distributors, manufacturers, brands, wholesalers, and retailers. Trust in WEUP’s expertise as a reputable manufacturer and supplier in the industry. Contact us today to discuss how our Sub-mini Rocker Switch can benefit your business.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

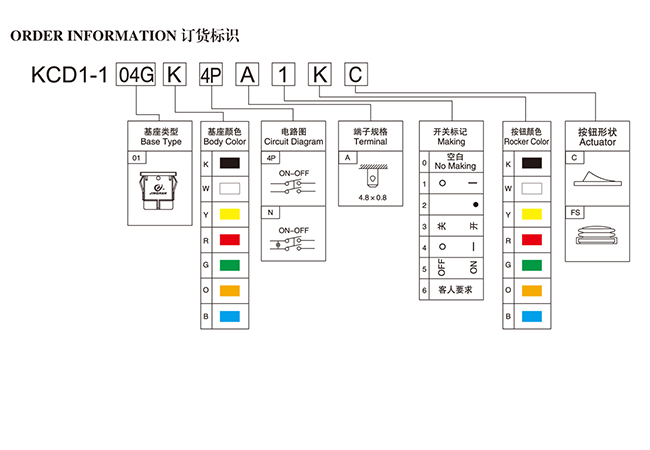

Technical Data

KCD1-104GG4P GREEN ROCKER SWITCH.

KCD1-104K4PA1K
Switch product typeBase TypeBase ColorCircuit DiagramTerminalMarkingButton Color
Black KCD1-104GG4P GREEN ROCKER SWITCH.ON-OFF KCD1-104GG4P GREEN ROCKER SWITCH. 4.8*0.8 KCD1-104GG4P GREEN ROCKER SWITCH.  KCD1-104GG4P GREEN ROCKER SWITCH.Black KCD1-104GG4P GREEN ROCKER SWITCH.
Blue KCD1-104GG4P GREEN ROCKER SWITCH.ON-OFF KCD1-104GG4P GREEN ROCKER SWITCH.  KCD1-104GG4P GREEN ROCKER SWITCH.Blue KCD1-104GG4P GREEN ROCKER SWITCH.
Green KCD1-104GG4P GREEN ROCKER SWITCH.  KCD1-104GG4P GREEN ROCKER SWITCH.Green KCD1-104GG4P GREEN ROCKER SWITCH.
Orange KCD1-104GG4P GREEN ROCKER SWITCH.  KCD1-104GG4P GREEN ROCKER SWITCH.Orange KCD1-104GG4P GREEN ROCKER SWITCH.
Red KCD1-104GG4P GREEN ROCKER SWITCH.  KCD1-104GG4P GREEN ROCKER SWITCH.Red KCD1-104GG4P GREEN ROCKER SWITCH.
White KCD1-104GG4P GREEN ROCKER SWITCH.  KCD1-104GG4P GREEN ROCKER SWITCH.White KCD1-104GG4P GREEN ROCKER SWITCH.
Yellow KCD1-104GG4P GREEN ROCKER SWITCH.  KCD1-104GG4P GREEN ROCKER SWITCH.Yellow KCD1-104GG4P GREEN ROCKER SWITCH.

Characteristics

Permissible operating frequencyMechanical20 operations/min max.
Electrical7 operations/min max.
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)100 mΩ max. (6 to 8 VDC, 1 A, voltage drop method)
Dielectric strengthBetween terminals of the same polarity2,000 VAC, 50/60 Hz, for 1 min
Between terminals of the different polarity2,000 VAC, 50/60 Hz, for 1 min
Between charged metal parts and the ground terminal4,000 VAC, 50/60 Hz, for 1 min
Vibration resistanceMalfunction10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceMalfunction300 m/s2
Destruction500 m/s2
DurabilityMechanical50,000 operations min.
Electrical10,000 operations min.
Inrush current100 A max. (8.3 ms max.)
Degree of protectionIEC IP40
Ambient operating temperature–20 to +55C (with no icing or condensation)
Ambient operating humidity45 to 85%RH

KCD1-104GG4P GREEN ROCKER SWITCH.

Applications

Rocker Switch Applications

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.

MonitorsCopiersPrinters
KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchKCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchKCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switch
Power SuppliesMeasuring DevicesPower Outlet Strips
KCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker SwitchKCD1-202 SPST 3 Pin 6 amp T85 Round Black Rocker Switchrocker switch

Related Products (4)

Download Latest Catalog

Do you supply samples? Are the Samples free?

Yes. Usually, 1-2 samples are free of charge, please support us by providing us with any express account such as DHL, FedEx, TNT, or UPS.

How is the shipping?

Our nearest port is Ningbo and Shanghai port, but if you collect the goods to ship together, we could send them to the other farther port. Usually, our customers will choose TNT, DHL, FedEx, and UPS to ship them.

How long is the delivery leading time?

Usually the samples 1-5 days to prepare. For orders, it depends on the quantity. Usually 5-15 days.

How is the packing?

For standard packing, dozens per box, 500pcs or 1000pcs per carton. We also provide you with custom box or carton packing with your logo and design.

How do you do regarding quality control?

All the products will be 100% checked before the shipment.
