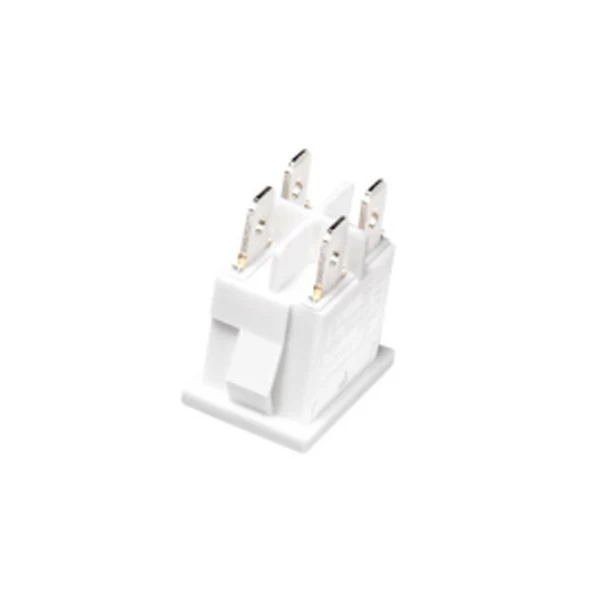

KCD1-104 Rocker Switch



  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals


  • Small appliances
  • Computers and peripherals
  • Medical instrumentation


  • Contact Rating:
6A 250V AC

10A 125V AC

10(6) 250V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 85/55
  • Contact Resistance:
≦ 50mΩ

Rocker switch control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.


With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing the WEUP Sub-mini Rocker Switch

Are you in search of a high-quality and reliable rocker switch for your business needs? Look no further than the WEUP Sub-mini Rocker Switch. Designed with precision and durability in mind, this product is the perfect choice for B2B buyers like importers, distributors, manufacturers, brands, wholesalers, and retailers. Let’s explore the features and functions that make this rocker switch stand out from the competition.

Superior Performance and Versatility

The WEUP Sub-mini Rocker Switch is designed to provide exceptional performance in a wide range of applications. Whether you’re in the market for a switch for small appliances, computers and peripherals, or medical instrumentation, this product has got you covered. With its 6A 250V AC contact rating, it offers reliable operation and can handle various electrical loads.

Durable Construction

When it comes to electrical switches, durability is of utmost importance. The WEUP Sub-mini Rocker Switch is built to last, with an electrical life of over 50,000 cycles. This ensures that it can withstand repeated use without compromising its performance. Additionally, it boasts a contact resistance of less than 50mΩ, providing efficient electrical conductivity.


One of the standout features of the WEUP Sub-mini Rocker Switch is its customizable options. As a B2B buyer, you may have specific requirements for your switches. With WEUP’s own D&R development capabilities, they can create new models according to your requests. From different shapes and sizes to custom wire harness and actuator marking options, WEUP ensures that their rocker switches meet your unique needs.

Wide Range of Configurations

WEUP offers a wide range of configurations to cater to diverse applications. The Sub-mini Rocker Switch is available in various functionalities, including two-position On/Off, three-position, momentary, and maintained options. It also offers illuminated versions with LED and incandescent lighting. Moreover, the switch is available in sealed/waterproof versions with different circuit diagrams such as SPST, SPDT, DPST, DPDT, 3PDT, and 4DPT.

Ease of Installation

The WEUP Sub-mini Rocker Switch is designed for easy installation. It features quick connect or blade terminals, allowing for hassle-free connection to electrical circuits. This saves time during installation and ensures a secure and reliable connection.

Quality Assurance

WEUP takes pride in delivering products of the highest quality. The Sub-mini Rocker Switch complies with various international standards, including CQC, CCC, CE, RoHS, ENEC, PAHS, VDE, TUV, and UL. These certifications guarantee that the product meets strict quality and safety requirements.


The versatility of the WEUP Sub-mini Rocker Switch makes it suitable for a wide range of applications. Some common uses include:

  • Power supply switches for consumer electronics: Whether it’s powering on/off monitors, copiers, printers, or air purifiers, this rocker switch delivers reliable performance.
  • Measuring devices: The Sub-mini Rocker Switch is an ideal choice for devices that require precise control and accurate readings.
  • Power outlet strips: With its compact size and space-saving design, this rocker switch is perfect for power outlet strips used in commercial and residential settings.


In summary, the WEUP Sub-mini Rocker Switch is a top-notch choice for B2B buyers seeking high-quality electrical switches. With its superior performance, durable construction, customizability, and wide range of configurations, it meets the needs of various applications. Supported by certifications and backed by reliable customer support, WEUP is the go-to supplier for your rocker switch requirements. Contact WEUP today to explore their product offerings and experience the difference they can make for your business.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.


We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service


Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

KCD1-104 Rocker SWitch

Permissible operating frequencyMechanical20 operations/min max.
Electrical7 operations/min max.
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)100 mΩ max. (6 to 8 VDC, 1 A, voltage drop method)
Dielectric strengthBetween terminals of the same polarity2,000 VAC, 50/60 Hz, for 1 min
Between terminals of the different polarity2,000 VAC, 50/60 Hz, for 1 min
Between charged metal parts and the ground terminal4,000 VAC, 50/60 Hz, for 1 min
Vibration resistanceMalfunction10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceMalfunction300 m/s2
Destruction500 m/s2
DurabilityMechanical50,000 operations min.
Electrical10,000 operations min.
Inrush current100 A max. (8.3 ms max.)
Degree of protectionIEC IP40
Ambient operating temperature–20 to +55C (with no icing or condensation)
Ambient operating humidity45 to 85%RH

KCD1-104 Rocker SWitch


Rocker Switch Applications

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.

Download Latest Catalog

Do you supply samples? Are the Samples free?

Yes. Usually, 1-2 samples are free of charge, please support us by providing us with any express account such as DHL, FedEx, TNT, or UPS.

How is the shipping?

Our nearest port is Ningbo and Shanghai port, but if you collect the goods to ship together, we could send them to the other farther port. Usually, our customers will choose TNT, DHL, FedEx, and UPS to ship them.

How long is the delivery leading time?

Usually the samples 1-5 days to prepare. For orders, it depends on the quantity. Usually 5-15 days.

How is the packing?

For standard packing, dozens per box, 500pcs or 1000pcs per carton. We also provide you with custom box or carton packing with your logo and design.

How do you do regarding quality control?

All the products will be 100% checked before the shipment.
