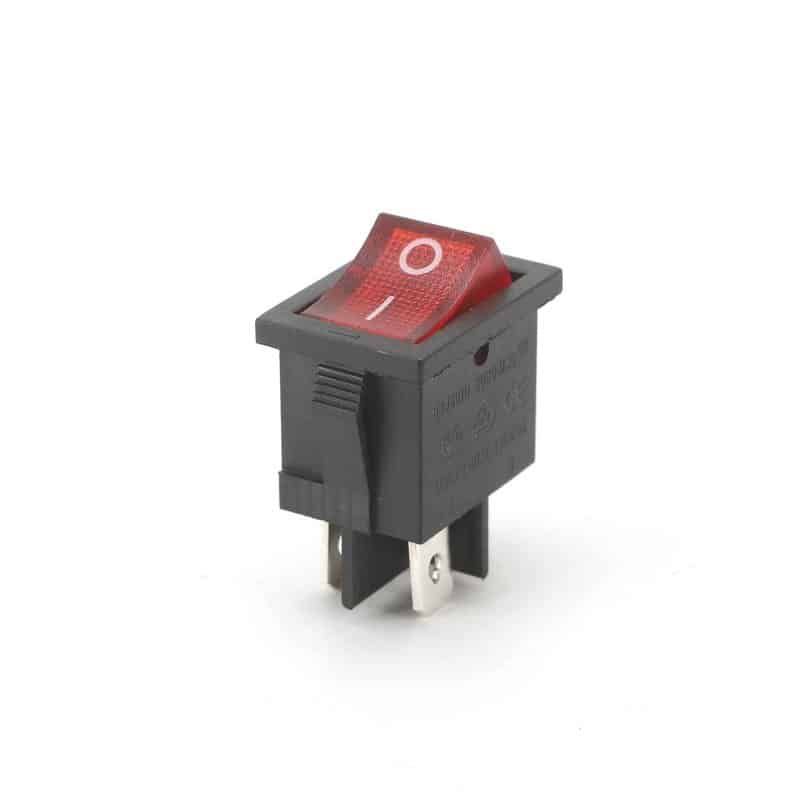

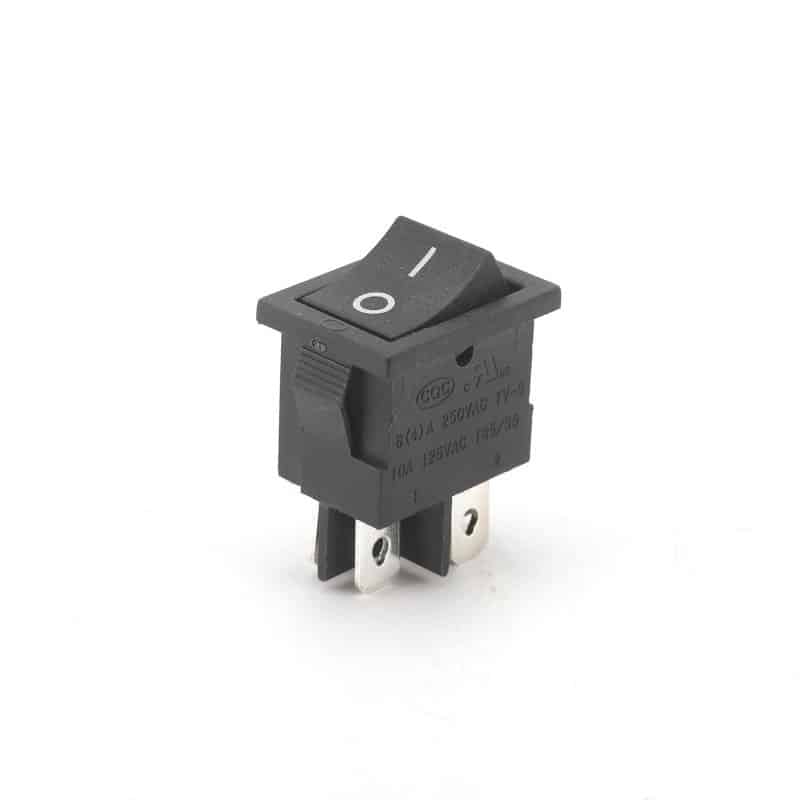

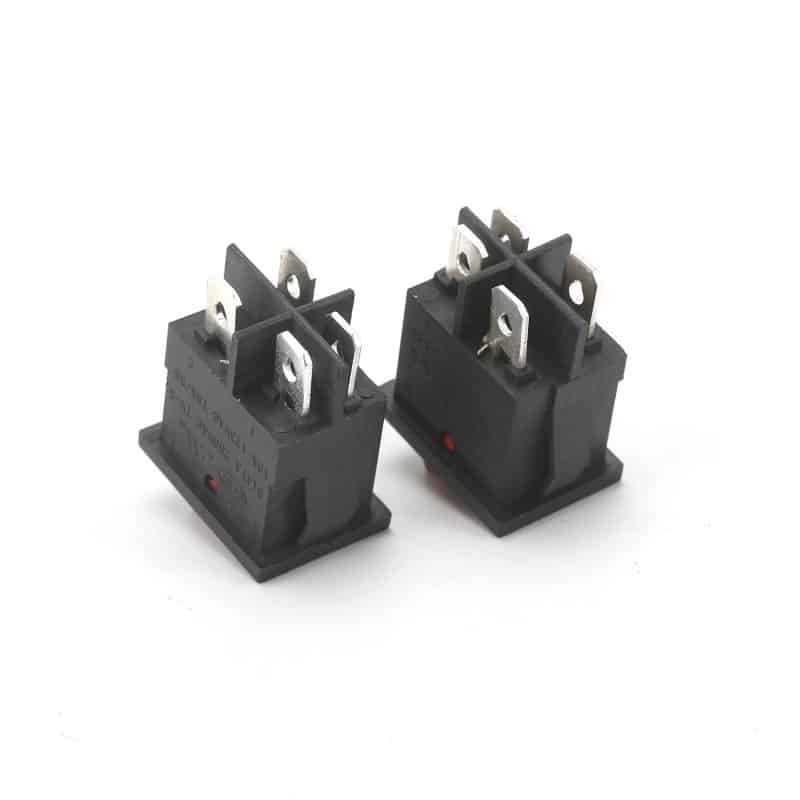

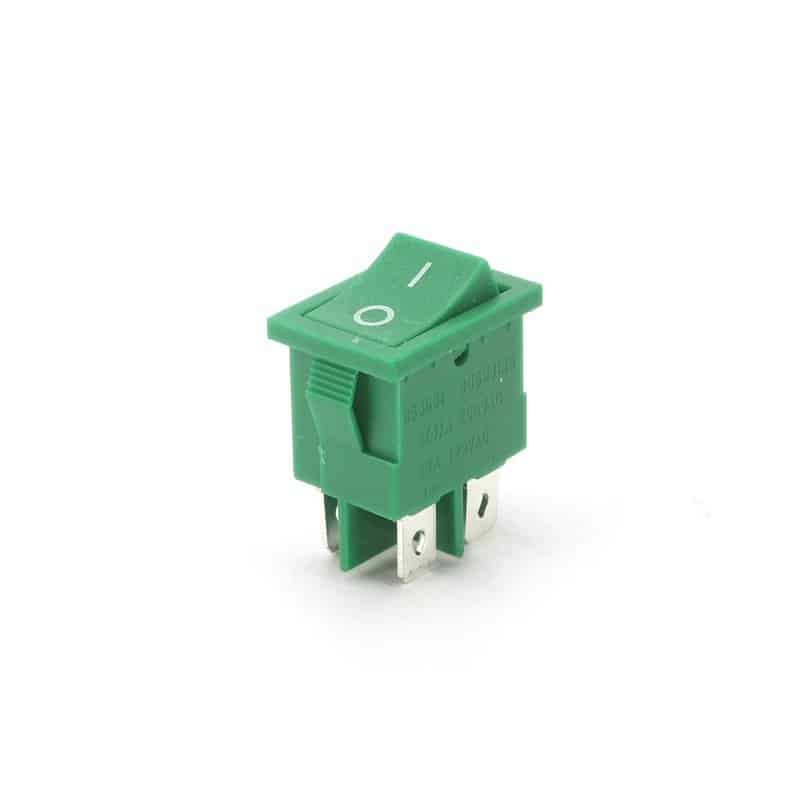

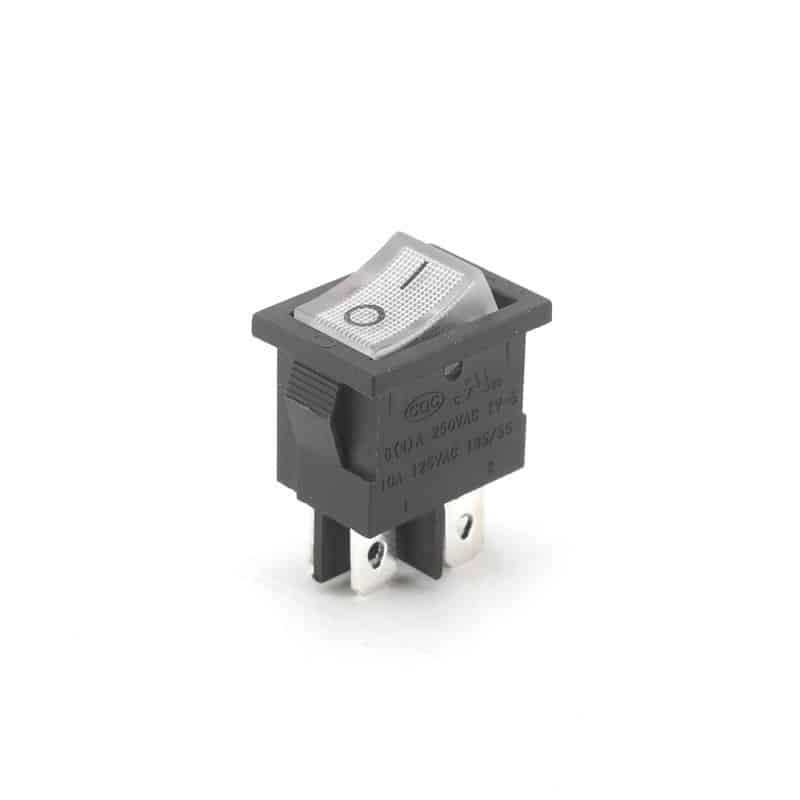

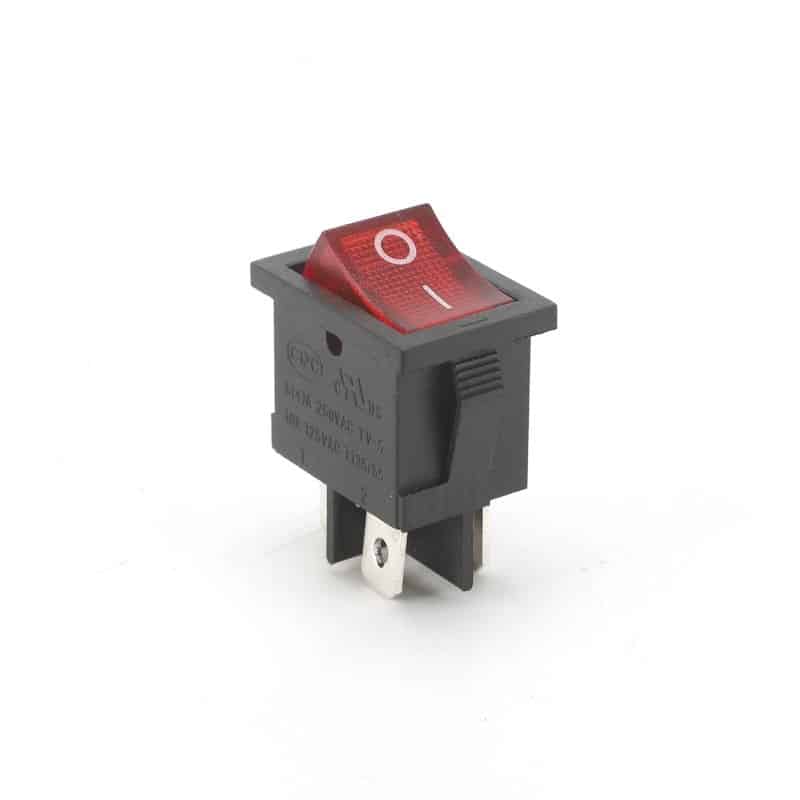

KCD1-104-N-KR On Off 12v Rocker Switch

KCD1-104-N-KR

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
6A 250V AC

10A 125V AC

10(6) 250V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 85/55
  • ContactResistance:
≦ 50mΩ

Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing the WEUP 12v Rocker Switch

Are you in search of a reliable and versatile rocker switch for your business needs? Look no further than the WEUP 12v Rocker Switch. Designed to control the on/off functions of various home appliance products, this rocker switch offers exceptional performance and a wide range of features that make it a perfect choice for B2B buyers like importers, distributors, manufacturers, brands, wholesalers, and retailers.

Features and Benefits

The WEUP 12v Rocker Switch boasts an array of features and benefits that set it apart from the competition. Here are some key highlights:

  1. Pilot Light or Illumination: This rocker switch is available in illuminated versions, including LED and incandescent options. The pilot light feature ensures clear visibility, even in low-light conditions.
  2. Imprinted Markings: The switch comes with clearly imprinted markings, making it easy to identify and operate.
  3. IP54 Splash Proof Rubber Boot Option: For applications that require protection against splashes and moisture, the WEUP 12v Rocker Switch offers an IP54 splash-proof rubber boot option. This ensures the longevity and reliability of the switch in demanding environments.
  4. Quick Connect or Blade Terminals: The switch is designed with quick connect or blade terminals, providing flexibility for installation and ease of use.

Versatile Applications

The WEUP 12v Rocker Switch finds its application in a wide range of industries and products, including:

  • Small appliances: Whether it’s coffee makers, blenders, or toasters, this rocker switch is an ideal choice for controlling the on/off functions of small household appliances.
  • Computers and peripherals: From desktop computers to printers and monitors, the WEUP 12v Rocker Switch ensures seamless operation and easy control.
  • Medical instrumentation: With its reliable performance and durability, this rocker switch meets the stringent requirements of medical instrumentation, making it a popular choice in the healthcare industry.

Specifications

To provide you with a comprehensive overview of the WEUP 12v Rocker Switch, here are some key specifications:

  • Contact Rating: The switch offers a contact rating of 6A 250V AC and 10A 125V AC, allowing for efficient power control.
  • Electrical Life: With a minimum electrical life of 50,000 cycles, this rocker switch ensures long-lasting performance and dependable operation.
  • Insulation Resistance: The switch boasts insulation resistance greater than or equal to 100 MΩ, ensuring safety and preventing electrical leakage.
  • Degree of Protection: With an IP55 degree of protection, the switch is resistant to dust and protected against water splashes from any direction.
  • Operating Temperature: The WEUP 12v Rocker Switch is designed to tolerate operating temperatures up to T 85/55, enabling its use in various environments.
  • Contact Resistance: With contact resistance less than or equal to 50mΩ, this rocker switch minimizes energy loss and ensures efficient power transmission.

Customization Options

WEUP understands that every business has unique requirements. That’s why they offer customization options for their rocker switches. With multi-pole, multi-position functionality, these switches can be tailored to suit your specific needs. Whether it’s different shapes, sizes, constructions, or recessed switch guards to prevent accidental actuation, WEUP can create a new model according to your requests. Their dedication to customization extends to supporting custom wire harness and actuator marking requests. By partnering with WEUP, you can ensure that your design requirements are met effectively.

Applications in Various Industries

The WEUP 12v Rocker Switch finds applications in a variety of industries due to its reliability and versatility:

  • Consumer Electronics: Whether it’s power supply switches for TVs, gaming consoles, or audio systems, this rocker switch ensures efficient control and operation.
  • Office/Commercial Equipment: From computer peripherals to printers and scanners, the WEUP 12v Rocker Switch provides reliable on/off functionality for office and commercial equipment.
  • Air Purifiers and Dehumidifiers: These devices rely on efficient power control to deliver fresh air and maintain optimal humidity levels. The WEUP 12v Rocker Switch ensures seamless operation.
  • Measuring Devices: Precision instruments such as measuring devices require accurate control. The WEUP 12v Rocker Switch guarantees precise on/off functions for these critical applications.

Conclusion

When it comes to choosing a reliable and versatile rocker switch, the WEUP 12v Rocker Switch stands out as an excellent choice for B2B buyers like importers, distributors, manufacturers, brands, wholesalers, and retailers. With its exceptional features, wide range of applications, customizable options, and support from a leading China manufacturer, this rocker switch will meet your business needs effectively. Trust the quality and reliability of WEUP’s products to enhance the performance of your appliances and equipment. Contact us today to explore our options and experience the difference WEUP brings to your business.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

KCD1-104-N-KR On Off 12v Rocker Switch



KCD1-104K4PA1K
Switch product typeBase TypeBase ColorCircuit DiagramTerminalMarkingButton Color
Black KCD1-104-N-KR On Off 12v Rocker SwitchON-OFF KCD1-104-N-KR On Off 12v Rocker Switch 4.8*0.8 KCD1-104-N-KR On Off 12v Rocker Switch  KCD1-104-N-KR On Off 12v Rocker SwitchBlack KCD1-104-N-KR On Off 12v Rocker Switch
Blue KCD1-104-N-KR On Off 12v Rocker SwitchON-OFF KCD1-104-N-KR On Off 12v Rocker Switch  KCD1-104-N-KR On Off 12v Rocker SwitchBlue KCD1-104-N-KR On Off 12v Rocker Switch
Green KCD1-104-N-KR On Off 12v Rocker Switch  KCD1-104-N-KR On Off 12v Rocker SwitchGreen KCD1-104-N-KR On Off 12v Rocker Switch
Orange KCD1-104-N-KR On Off 12v Rocker Switch  KCD1-104-N-KR On Off 12v Rocker SwitchOrange KCD1-104-N-KR On Off 12v Rocker Switch
Red KCD1-104-N-KR On Off 12v Rocker Switch  KCD1-104-N-KR On Off 12v Rocker SwitchRed KCD1-104-N-KR On Off 12v Rocker Switch
White KCD1-104-N-KR On Off 12v Rocker Switch  KCD1-104-N-KR On Off 12v Rocker SwitchWhite KCD1-104-N-KR On Off 12v Rocker Switch
Yellow KCD1-104-N-KR On Off 12v Rocker Switch  KCD1-104-N-KR On Off 12v Rocker SwitchYellow KCD1-104-N-KR On Off 12v Rocker Switch

Characteristics

Permissible operating frequencyMechanical20 operations/min max.
Electrical7 operations/min max.
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)100 mΩ max. (6 to 8 VDC, 1 A, voltage drop method)
Dielectric strengthBetween terminals of the same polarity2,000 VAC, 50/60 Hz, for 1 min
Between terminals of the different polarity2,000 VAC, 50/60 Hz, for 1 min
Between charged metal parts and the ground terminal4,000 VAC, 50/60 Hz, for 1 min
Vibration resistanceMalfunction10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceMalfunction300 m/s2
Destruction500 m/s2
DurabilityMechanical50,000 operations min.
Electrical10,000 operations min.
Inrush current100 A max. (8.3 ms max.)
Degree of protectionIEC IP40
Ambient operating temperature–20 to +55C (with no icing or condensation)
Ambient operating humidity45 to 85%RH

KCD1-104-N-KR On Off 12v Rocker Switch

Applications

Rocker Switch Applications

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.

MonitorsCopiersPrinters
KCD1-104-N-KR On Off 12v Rocker SwitchKCD1-104-N-KR On Off 12v Rocker SwitchKCD1-104-N-KR On Off 12v Rocker Switch
Power SuppliesMeasuring DevicesPower Outlet Strips
KCD1-104-N-KR On Off 12v Rocker SwitchKCD1-104-N-KR On Off 12v Rocker SwitchKCD1-104-N-KR On Off 12v Rocker Switch
