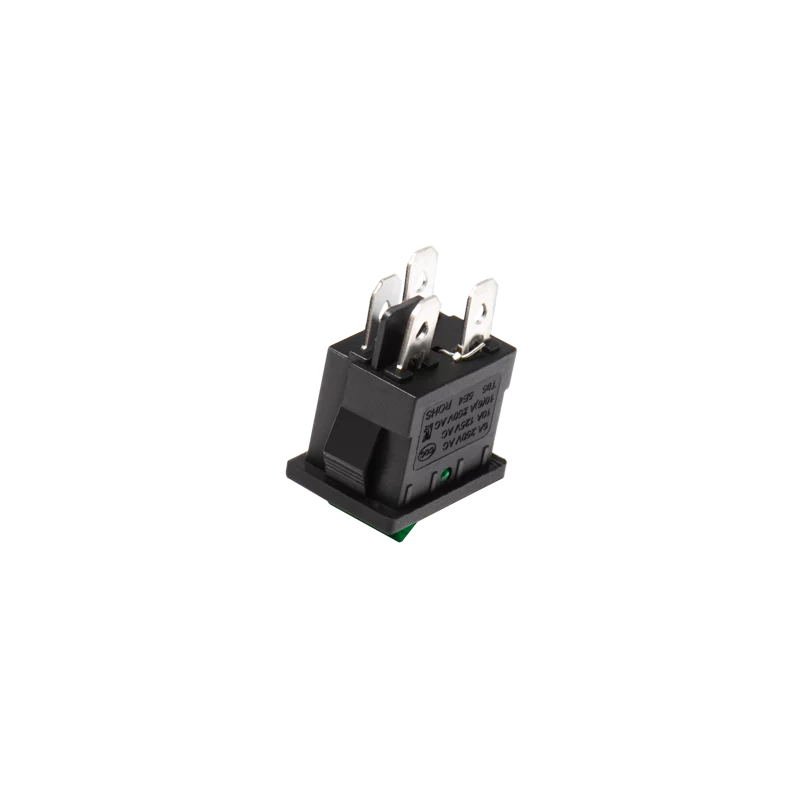

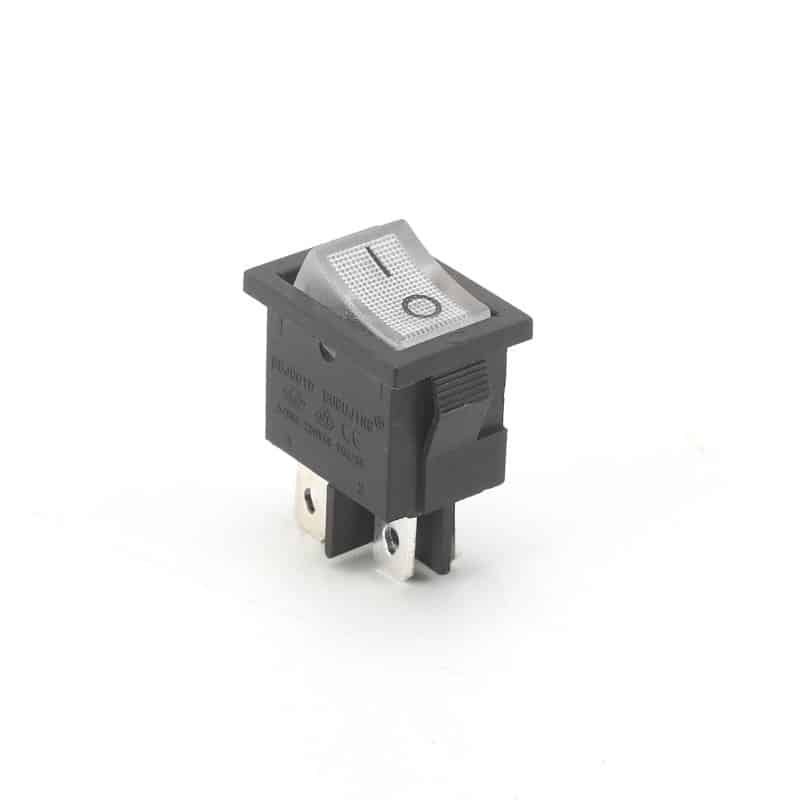

KCD1-104-4PN-KG On Off 12v Rocker Switch

KCD1-104-4PN-KG

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
6A 250V AC

10A 125V AC

10(6) 250V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 85/55
  • ContactResistance:
≦ 50mΩ

Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing the WEUP 12v Rocker Switch

Are you in the market for a reliable and versatile rocker switch? Look no further than the WEUP 12v Rocker Switch. With its exceptional features and functionality, this switch is the perfect choice for B2B buyers like importers, distributors, manufacturers, brands, wholesalers, and retailers. Let’s delve into why this product is a must-have for your business.

1. Versatility and Customization

The WEUP 12v Rocker Switch offers a wide range of configurations to suit various applications. Whether you’re looking for a two-position On/Off switch or a three-position switch, this product has got you covered. It even includes momentary and maintained options, providing ultimate flexibility for your specific needs. Additionally, WEUP’s own D&R development capabilities allow for the creation of customized models tailored to your unique requirements. This level of versatility sets WEUP apart from other China manufacturers.

2. High-Quality Construction

When it comes to electrical components, durability is key. The WEUP 12v Rocker Switch is built to last with a robust design and high-quality materials. Its electrical life exceeds 50,000 cycles, ensuring long-lasting performance even in demanding environments. With an insulation resistance of over 100 MΩ and a contact resistance of less than 50mΩ, this switch guarantees reliable and efficient operation.

3. Safety and Protection

The WEUP 12v Rocker Switch prioritizes safety with its IP55 degree of protection. This feature provides excellent resistance against dust and water splashes, making it suitable for a wide range of applications. Whether you’re using it in small appliances, computers and peripherals, or medical instrumentation, you can trust this switch to withstand challenging conditions and deliver consistent results.

4. Easy Installation

Gone are the days of complicated installations. The WEUP 12v Rocker Switch offers quick connect or blade terminals, making installation a breeze. Its user-friendly design ensures a hassle-free setup process, saving you valuable time and effort.

5. Illuminated Options

Enhance functionality and convenience with the illuminated versions of the WEUP 12v Rocker Switch. Choose between LED or incandescent lighting to suit your preferences and requirements. The pilot light or illumination feature allows for easy identification of the switch’s status, even in low-light conditions.

6. Wide Application Range

The WEUP 12v Rocker Switch finds its place in a multitude of applications. From small appliances to computers and peripherals, and even medical instrumentation, this switch offers reliable control over the on/off function of various devices. Its versatility makes it an indispensable component across industries.

7. Reliable Support and Customization Options

WEUP stands out not only for its superior products but also for its commitment to customer satisfaction. As a buyer, you can rely on their excellent support services to assist you every step of the way. Moreover, WEUP offers customization options such as wire harness and actuator marking requests, ensuring that their products meet your specific requirements.

8. Industry Certifications

Rest easy knowing that the WEUP 12v Rocker Switch meets industry standards. It holds certifications from reputable organizations such as CQC, CCC, CE, RoHS, ENEC, PAHS, VDE, TUV, and UL. These certifications testify to the switch’s quality and compliance with safety regulations.

9. Competitive Pricing and Supply Chain Advantage

When it comes to cost-effectiveness, WEUP delivers. As one of China’s leading manufacturers, they offer competitive pricing without compromising on quality. By sourcing directly from WEUP, B2B buyers can benefit from cutting out middlemen and reducing costs significantly.

In conclusion, the WEUP 12v Rocker Switch is a top choice for B2B buyers seeking reliable electrical components. Its versatility, high-quality construction, safety features, easy installation, illumination options, wide application range, reliable support, industry certifications, and competitive pricing make it an unbeatable product in the market. Don’t miss out on the opportunity to partner with WEUP – one of China’s premier manufacturers – to enhance your business operations.

For more information on how to purchase the WEUP 12v Rocker Switch or to explore other products from WEUP’s extensive catalog, reach out to their team of knowledgeable experts today. China manufacturers like WEUP are your trusted partners in delivering top-notch products and exceptional service.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

KCD1-104-4PN-KG On Off 12v Rocker Switch



KCD1-104K4PA1K
Switch product typeBase TypeBase ColorCircuit DiagramTerminalMarkingButton Color
Black KCD1-104-4PN-KG On Off 12v Rocker SwitchON-OFF KCD1-104-4PN-KG On Off 12v Rocker Switch 4.8*0.8 KCD1-104-4PN-KG On Off 12v Rocker Switch  KCD1-104-4PN-KG On Off 12v Rocker SwitchBlack KCD1-104-4PN-KG On Off 12v Rocker Switch
Blue KCD1-104-4PN-KG On Off 12v Rocker SwitchON-OFF KCD1-104-4PN-KG On Off 12v Rocker Switch  KCD1-104-4PN-KG On Off 12v Rocker SwitchBlue KCD1-104-4PN-KG On Off 12v Rocker Switch
Green KCD1-104-4PN-KG On Off 12v Rocker Switch  KCD1-104-4PN-KG On Off 12v Rocker SwitchGreen KCD1-104-4PN-KG On Off 12v Rocker Switch
Orange KCD1-104-4PN-KG On Off 12v Rocker Switch  KCD1-104-4PN-KG On Off 12v Rocker SwitchOrange KCD1-104-4PN-KG On Off 12v Rocker Switch
Red KCD1-104-4PN-KG On Off 12v Rocker Switch  KCD1-104-4PN-KG On Off 12v Rocker SwitchRed KCD1-104-4PN-KG On Off 12v Rocker Switch
White KCD1-104-4PN-KG On Off 12v Rocker Switch  KCD1-104-4PN-KG On Off 12v Rocker SwitchWhite KCD1-104-4PN-KG On Off 12v Rocker Switch
Yellow KCD1-104-4PN-KG On Off 12v Rocker Switch  KCD1-104-4PN-KG On Off 12v Rocker SwitchYellow KCD1-104-4PN-KG On Off 12v Rocker Switch

Characteristics

Permissible operating frequencyMechanical20 operations/min max.
Electrical7 operations/min max.
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)100 mΩ max. (6 to 8 VDC, 1 A, voltage drop method)
Dielectric strengthBetween terminals of the same polarity2,000 VAC, 50/60 Hz, for 1 min
Between terminals of the different polarity2,000 VAC, 50/60 Hz, for 1 min
Between charged metal parts and the ground terminal4,000 VAC, 50/60 Hz, for 1 min
Vibration resistanceMalfunction10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceMalfunction300 m/s2
Destruction500 m/s2
DurabilityMechanical50,000 operations min.
Electrical10,000 operations min.
Inrush current100 A max. (8.3 ms max.)
Degree of protectionIEC IP40
Ambient operating temperature–20 to +55C (with no icing or condensation)
Ambient operating humidity45 to 85%RH

KCD1-104-4PN-KG On Off 12v Rocker Switch

Applications

Rocker Switch Applications

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.

MonitorsCopiersPrinters
KCD1-104G-4P-GG On Off 12v Rocker SwitchKCD1-104G-4P-GG On Off 12v Rocker SwitchKCD1-104G-4P-GG On Off 12v Rocker Switch
Power SuppliesMeasuring DevicesPower Outlet Strips
KCD1-104G-4P-GG On Off 12v Rocker SwitchKCD1-104G-4P-GG On Off 12v Rocker SwitchKCD1-104G-4P-GG On Off 12v Rocker Switch
