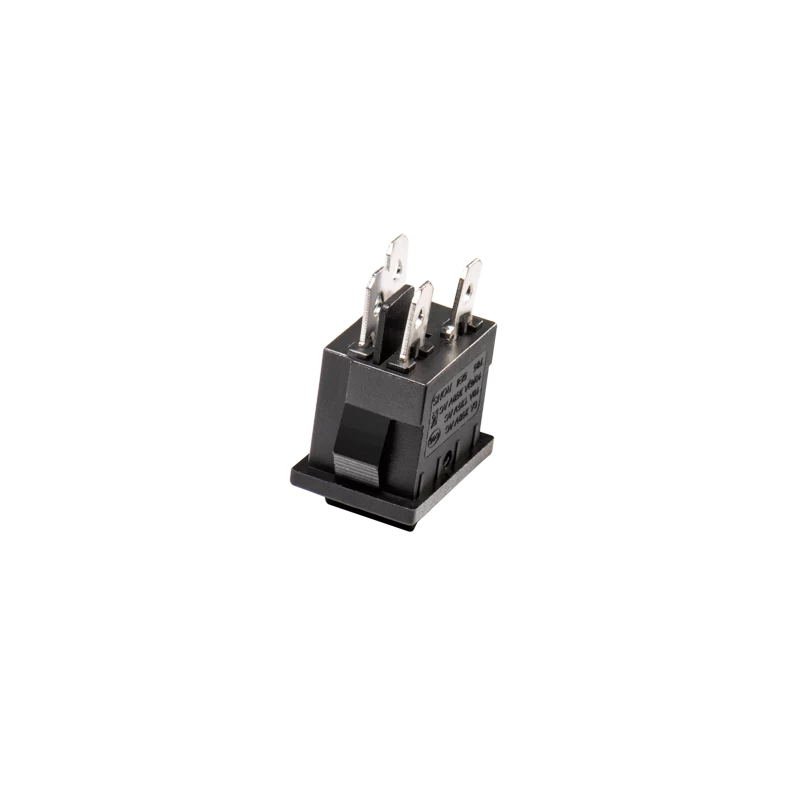

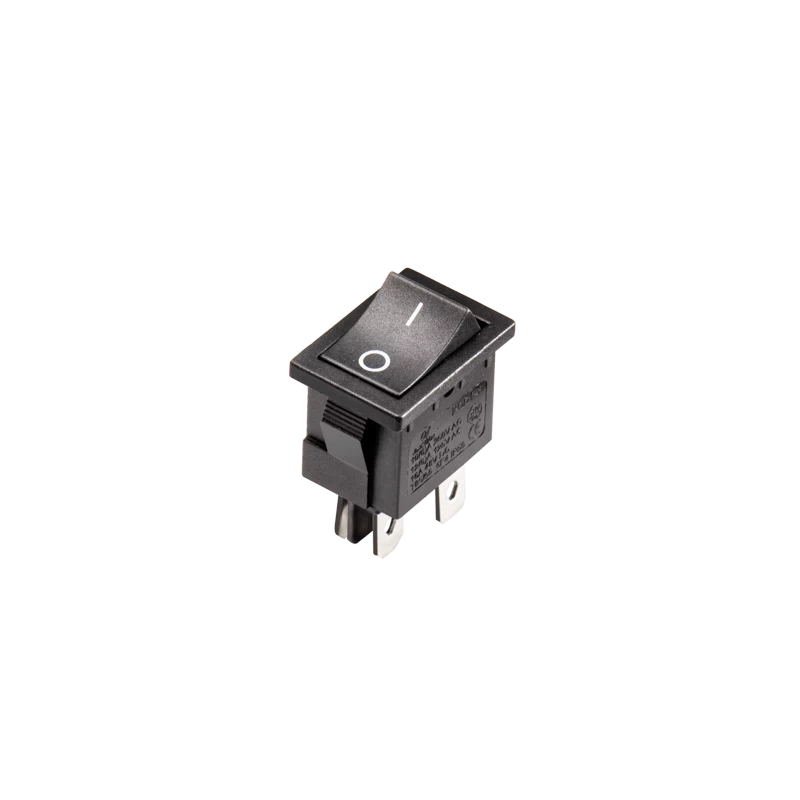

KCD1-104-4P On Off 12v Rocker Switch

KCD1-104-4P

FEATURES AND BENEFITS

  • Pilot light or illumination
  • Imprinted markings
  • IP54 splash proof rubber boot option
  • Quick connect or blade terminals

TYPICAL APPLICATIONS

  • Small appliances
  • Computers and peripherals
  • Medical instrumentation

SPECIFICATIONS

  • Contact Rating:
6A 250V AC

10A 125V AC

10(6) 250V AC

  • Electrical Life:
≧ 50000 Cycles
  • Insulation Resistance:
≧ 100 MΩ
  • Degree of Protection:
IP 55
  • Operating Temperature:
T 85/55
  • ContactResistance:
≦ 50mΩ

Rocker switches control the on/off functions of all home appliance products. On/off is the most important function of the rocker switch, Additionally, it has different functions such as 3 positions, button, changeover too.

WEUP’s selection of rocker switches includes sub-miniature, they are available in different configurations including two-position On/Off, three-position, momentary, maintained and more.Models are available in illuminated (LED and incandescent) and sealed/waterproof versions, with SPST, SPDT, DPST, DPDT, 3PDT and 4DPT functionality.

CUSTOMIZING ROCKER SWITCHES

With multi-pole, multi-position functionality, WEUP rocker switches can be used in a variety of applications. As we have our own D&R development, it is very convenient for WEUP to create a new model according to the customers’ requests. Options like a shapes, size, construction, frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and sub-miniature sizes for a space-saving small footprint, make WEUP the rocker switch provider of choice. Also WEUP can support custom wire harness and actuator marking requests for qualifying designs in order to meet customers’ requirements and needs.

Read More

Product Features

Introducing the WEUP 12v Rocker Switch: the ultimate solution for your B2B electrical needs. As a trusted manufacturer of high-quality switches, WEUP brings you a product that combines reliability, functionality, and versatility. Whether you are an importer, distributor, manufacturer, brand, wholesaler, or retailer, this 12v Rocker Switch is a must-have addition to your product lineup. Let’s explore why this switch stands out from the competition:

1. Superior Performance and Durability
The WEUP 12v Rocker Switch is engineered to deliver exceptional performance in a wide range of applications. With a contact rating of 6A 250V AC and an electrical life of over 50,000 cycles, this switch ensures long-lasting reliability. It also boasts a contact resistance of less than 50mΩ, guaranteeing minimal power loss and efficient operation.

2. Versatile Functionality
This rocker switch offers versatile functionality, making it suitable for various applications. Whether you need a simple on/off function or require different positions and button configurations, WEUP has you covered. The switch is available in two-position on/off, three-position, momentary, and maintained options. With SPST, SPDT, DPST, DPDT, 3PDT, and 4DPT functionality, you can find the perfect configuration for your specific needs.

3. Customization Options
WEUP understands that every customer has unique requirements. That’s why we offer customizable options to tailor the rocker switch to your exact specifications. With our own D&R development capabilities, we can create new models based on your requests. From different shapes and sizes to specialized constructions and recessed switch guards, we can provide a switch that perfectly fits your application. Additionally, we offer splash-proof rubber boots and sub-miniature sizes for space-saving solutions.

4. Illuminated and Sealed Versions
The WEUP 12v Rocker Switch is available in illuminated versions, with options for both LED and incandescent lighting. This feature enhances visibility and makes it easier to operate the switch in low-light environments. Furthermore, we offer sealed and waterproof versions for applications that require protection against moisture and dust. The IP54 splash-proof rubber boot option ensures reliable performance even in challenging conditions.

5. Wide Range of Applications
The WEUP 12v Rocker Switch finds its place in a multitude of applications across various industries. From small appliances to computers and peripherals, medical instrumentation to power supply switches, this switch is versatile enough to meet the needs of different sectors. Its high-quality construction and reliable performance make it an ideal choice for consumer electronics, office/commercial equipment, air purifiers, measuring devices, power outlet strips, and more.

6. Trustworthy Manufacturer with Customization Support
When you choose WEUP as your supplier, you gain access to our expertise as China manufacturers with extensive experience in the industry. We pride ourselves on delivering top-notch products and excellent customer service. Our team is ready to support you in customizing the rocker switch according to your specific requirements. We can accommodate requests for wire harness customization and actuator marking to ensure the switch meets your branding and design needs.

In conclusion, the WEUP 12v Rocker Switch is the go-to choice for B2B buyers seeking high-quality electrical products. Its superior performance, versatility, customization options, and wide range of applications set it apart from the competition. As a trusted manufacturer with customization support, WEUP is committed to delivering reliable products that meet and exceed your expectations. Choose WEUP as your supplier and join our satisfied customers who rely on our switches for their business success.

Why Choose WEUP?

High Quality

High Quality

Our switches are manufactured using top-grade materials and undergo rigorous quality control measures to ensure superior performance.

Affordability

We understand the importance of cost-effectiveness in today’s competitive market. That’s why we offer our switches at a competitive price point without compromising on quality.

Affordability
Reliable Supplier

Reliable Supplier

As one of the leading China manufacturers, WEUP has established a solid reputation for providing reliable products to customers worldwide. We work with reputable suppliers and have a strong network of distributors to ensure prompt delivery.

Excellent Customer Service

At WEUP, we value our customers’ satisfaction above all else. Our dedicated team is always ready to assist you with any inquiries or concerns you may have.

Excellent Customer Service

Certificates

Goboll Rocker Swtich VDE
VDE Certificates
Goboll Rocker Swtich CCC
CCC Certificates
Goboll Rocker Swtich CE
CE Certificates
Goboll Rocker Swtich CQC
CQC Certificates
ENEC Certification
ENEC Certificates
Goboll Rocker Swtich PAHS
PAHS Certificates
Goboll Rocker Swtich RoHS
RoHS Certificates
Goboll Rocker Swtich TUV
TUV Certificates
Goboll Rocker Swtich UL
UL Certificates

Technical Data

KCD1-104-4P On Off 12v Rocker Switch



KCD1-104K4PA1K
Switch product typeBase TypeBase ColorCircuit DiagramTerminalMarkingButton Color
Black KCD1-104-4P On Off 12v Rocker SwitchON-OFF KCD1-104-4P On Off 12v Rocker Switch 4.8*0.8 KCD1-104-4P On Off 12v Rocker Switch  KCD1-104-4P On Off 12v Rocker SwitchBlack KCD1-104-4P On Off 12v Rocker Switch
Blue KCD1-104-4P On Off 12v Rocker SwitchON-OFF KCD1-104-4P On Off 12v Rocker Switch  KCD1-104-4P On Off 12v Rocker SwitchBlue KCD1-104-4P On Off 12v Rocker Switch
Green KCD1-104-4P On Off 12v Rocker Switch  KCD1-104-4P On Off 12v Rocker SwitchGreen KCD1-104-4P On Off 12v Rocker Switch
Orange KCD1-104-4P On Off 12v Rocker Switch  KCD1-104-4P On Off 12v Rocker SwitchOrange KCD1-104-4P On Off 12v Rocker Switch
Red KCD1-104-4P On Off 12v Rocker Switch  KCD1-104-4P On Off 12v Rocker SwitchRed KCD1-104-4P On Off 12v Rocker Switch
White KCD1-104-4P On Off 12v Rocker Switch  KCD1-104-4P On Off 12v Rocker SwitchWhite KCD1-104-4P On Off 12v Rocker Switch
Yellow KCD1-104-4P On Off 12v Rocker Switch  KCD1-104-4P On Off 12v Rocker SwitchYellow KCD1-104-4P On Off 12v Rocker Switch

Characteristics

Permissible operating frequencyMechanical20 operations/min max.
Electrical7 operations/min max.
Insulation resistance100 MΩ min. (at 500 VDC with insulation tester)
Contact resistance (initial value)100 mΩ max. (6 to 8 VDC, 1 A, voltage drop method)
Dielectric strengthBetween terminals of the same polarity2,000 VAC, 50/60 Hz, for 1 min
Between terminals of the different polarity2,000 VAC, 50/60 Hz, for 1 min
Between charged metal parts and the ground terminal4,000 VAC, 50/60 Hz, for 1 min
Vibration resistanceMalfunction10 to 55 Hz, 1.5-mm double amplitude
Shock resistanceMalfunction300 m/s2
Destruction500 m/s2
DurabilityMechanical50,000 operations min.
Electrical10,000 operations min.
Inrush current100 A max. (8.3 ms max.)
Degree of protectionIEC IP40
Ambient operating temperature–20 to +55C (with no icing or condensation)
Ambient operating humidity45 to 85%RH

KCD1-104-4P On Off 12v Rocker Switch

Applications

Rocker Switch Applications

Power Supply Switches for Consumer Electronics, PC Peripherals, and Office/Commercial Equipment

Rocker switches are used in a lot of common pieces of technology such as monitors, printers and measuring devices. Check out some of the applications of rocker switches below.

Air purifiers, dehumidifiers, etc.

Monitors, copiers, printers, etc.

MonitorsCopiersPrinters
KCD1-104G-4P-GG On Off 12v Rocker SwitchKCD1-104G-4P-GG On Off 12v Rocker SwitchKCD1-104G-4P-GG On Off 12v Rocker Switch
Power SuppliesMeasuring DevicesPower Outlet Strips
KCD1-104G-4P-GG On Off 12v Rocker SwitchKCD1-104G-4P-GG On Off 12v Rocker SwitchKCD1-104G-4P-GG On Off 12v Rocker Switch
